Ultra low latency (ULL) is end-to-end video delay below a single frame period, typically under 16.7 ms at 60 Hz and often in the 1 to 8 ms range for professional LED and AV-over-IP pipelines. It is achieved by shortening the processing path between source and display, usually at the cost of pixel capacity or refresh headroom. VideoSDK delivers comparable interactivity in software through its interactive live streaming mode, which keeps audience-facing delay low enough for real-time conversation.
A professional LED wall showing a presenter's camera feed eight frames behind reality is not a display problem. It is a latency budget problem, and it can ruin a virtual production shoot in seconds. In esports, broadcast, financial trading, and interactive streaming, the difference between 40 ms and 4 ms decides whether a system feels instant or broken.
This article explains what ultra low latency actually means, how frame-rate math sets the floor for achievable delay, how LED processors and media servers enable ULL in practice, and how to measure and optimize it. By the end, you will have a working mental model of the trade-offs, a decision framework, and a checklist you can apply to your own pipeline.

What Is Ultra Low Latency?

Ultra low latency is defined as end-to-end signal delay that falls below one frame period, measured in milliseconds from the moment a source generates a frame to the moment the display emits its photons. Ultra low latency works by minimizing buffering, frame queuing, and scaling stages in the signal path, so each frame is processed and pushed to the panel before the next frame arrives.
The industry generally recognizes three tiers. Low latency covers the 50 to 150 ms range typical of standard video conferencing and conventional streaming. Ultra low latency covers roughly 1 to 16 ms, or sub-frame delay at common refresh rates. Zero latency is a marketing-adjacent term for systems where measured delay is effectively at the sensor-to-photon floor, usually under a millisecond, and only achievable with direct optical or hardwired paths.
For context, a WebRTC-based video call typically lands between 100 and 300 ms of glass-to-glass delay, which is fine for conversation. Virtual production and esports demand far less. VideoSDK's real-time communication SDKs sit in the low-latency tier for interactive apps, while its interactive live streaming mode targets sub-second audience interaction, a different budget from LED-processor ULL but the same underlying discipline: every millisecond in the pipeline must be accounted for.

Technical Foundations of Ultra Low Latency

Every latency discussion starts with frame math, because the frame period sets the quantum of delay. You cannot meaningfully talk about sub-frame latency until you know how long one frame takes.

Frame-Rate and Latency Calculations

The frame period is simply one divided by the frame rate. At 60 Hz, one frame takes about 16.7 ms, so any pipeline stage that holds a full frame adds that much delay. At 120 Hz, the period halves to roughly 8.3 ms. At 250 Hz, a rate used in high-frame-rate LED workflows, the period drops to 4 ms.
This is why high frame rates and ultra low latency go hand in hand. A pipeline that buffers two frames at 60 Hz costs 33 ms. The same two-frame buffer at 250 Hz costs only 8 ms. Raising the frame rate shrinks the cost of every fixed buffer in the chain, which is exactly how HFR modes on professional LED processors claw back milliseconds.

Signal Path Overview

A typical LED wall pipeline runs from a media source, through a video input on the processor, into the processor's internal scaling and mapping stages, and out to the LED panels. Each hop adds delay: capture, encoding or transmission, input buffering, processing, and panel drive.
The key insight is that ULL modes do not make any single stage faster. They remove stages, bypassing frame-accumulating buffers and double-buffering steps that exist to smooth irregular input. That is also why ULL comes with restrictions: the pipeline loses the slack that made it tolerant of unusual sources.

Pixel-Capacity Trade-Offs

Enabling ultra low latency on a professional LED processor typically halves the available pixel capacity. A processor rated for a large canvas at standard latency can address only about half that pixel count in ULL mode, because the faster path requires dedicating more processing resources per pixel and eliminating the pipelining that let it overlap work across frames.
In practice, that means a 4K-capable processor in ULL mode may only drive a 2K-class canvas, or a wide wall at reduced refresh. Combine ULL with high frame rate mode and capacity shrinks further, since 250 Hz operation multiplies the per-second pixel throughput the processor must sustain. Planning your canvas resolution, refresh rate, and latency target together is not optional. It is the core design decision.

Enabling Ultra Low Latency in Practice

Getting ULL working is a hardware and configuration exercise, and the failure modes are predictable. Here is how the pieces fit together.

Hardware Requirements

You need an LED processor that explicitly supports an ultra low latency mode. Brompton's Tessera SX40 and S8 processors are the reference examples in virtual production, offering dedicated low-latency paths alongside high frame rate support. Other manufacturers offer comparable modes under names like low latency or fast mode, but the principle is the same: a bypass path that skips frame-accumulating processing stages.
Source compatibility matters just as much. ULL modes generally expect HDMI 2.0-class PC-based media servers that can sustain high frame rates with precise timing. Traditional SDI sources, especially those locked to broadcast-standard rates, often cannot drive the high-frequency signals the ULL path expects, and many processors simply reject them in this mode.

Configuring the Source

Configuration starts at the source. The processor advertises its capabilities to the source through EDID, the display identification data that tells a computer what resolutions and refresh rates the wall accepts. In ULL workflows, the EDID often describes a canvas with a doubled height or width, because the high frame rate mode splits the frame across the transport in a way the source must account for.
Your media server should be configured to output exactly the resolution and refresh rate the processor's ULL EDID requests. Mismatched timing forces the processor to re-buffer and resynchronize, which reintroduces the very frames of delay you are trying to eliminate. When combining HFR with ULL, recheck your pixel budget: the doubled transport plus the halved ULL capacity can leave you with a quarter of the processor's nominal canvas.

Trade-Off Matrix

The decision among latency, pixel capacity, and frame rate is a three-way balance. The matrix below shows how the modes interact on a typical professional processor.
Read the matrix as a budget, not a menu. You spend pixel capacity to buy latency reduction, and you spend more capacity again to buy frame rate. A wall that must run 250 Hz in ULL mode needs to be planned at a fraction of the resolution the processor's spec sheet advertises.

Common Pitfalls

Three problems account for most failed ULL deployments. First, incompatible SDI sources: teams assume any professional video source works, then discover the ULL path only accepts HDMI-based PC sources. Second, exceeding pixel limits: enabling ULL on a canvas sized for standard mode silently fails or forces a fallback to slower processing. Third, genlock restrictions: some ULL and HFR combinations restrict external synchronization options, which matters when camera tracking or broadcast reference timing must align with the wall. Test the full chain before the shoot, not during it.

Real-World Use Cases for Ultra Low Latency

Sub-frame delay is not a spec-sheet curiosity. Entire industries are built around hitting specific latency budgets.

Broadcast and Virtual Production

Virtual production places actors inside LED environments driven in real time by a game engine. Camera tracking data moves the parallax of the virtual background as the camera moves, and any wall delay beyond a few milliseconds makes the background visibly lag the physical foreground. This breaks the illusion on camera even when it looks acceptable to the naked eye. Production teams using processors like the Tessera SX40 in ULL mode target single-digit millisecond wall delay precisely because the camera magnifies every error.

Esports and Live Events

Esports adds a human-perception constraint. Competitive players react to on-screen events in roughly 150 to 250 ms, and any pipeline delay eats directly into that budget. Tournament organizers care about wall latency because spectators judge the event by how instantly on-stage screens mirror the action. Audience interaction features, live polls, and real-time overlays all compound the requirement: every interactive element adds its own latency, so the display path must be lean to compensate.

Financial Trading Networks

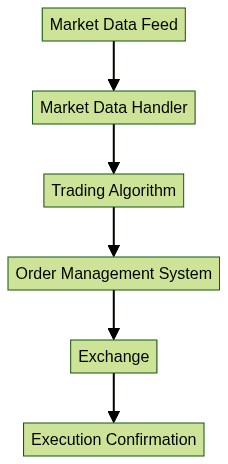

High-frequency trading operates on latency budgets measured in microseconds, an order of magnitude beyond video, but the discipline transfers. Trading firms budget latency per network hop, per processing stage, and per serialization step, exactly as a video engineer budgets per pipeline stage. The lesson for video developers is that measuring each stage independently, rather than only end to end, is how you find the frame of delay hiding in your chain.

Interactive Live Streaming

Live shopping, webinars, and auctions need audience-facing delay low enough that a host can respond to comments in natural conversation. Standard HLS delivery imposes 10 to 30 seconds of delay, which kills interaction. Interactive live streaming built on real-time transport brings that under a second, and well-optimized pipelines approach the sub-250 ms range where dialogue feels live. VideoSDK's interactive live streaming capability is designed for exactly this tier, letting viewers be promoted to active participants without the delay wall of traditional streaming. For teams building these experiences, the VideoSDK quickstart covers the room and participant model that underpins it.

Measuring and Optimizing Ultra Low Latency

You cannot manage what you have not measured, and latency claims without methodology are marketing.

Metrics and Tools

The gold standard is end-to-end frame timestamping: mark the exact moment a source frame is generated, and mark the moment the display emits it, using a high-speed camera or photodiode pointed at the wall alongside a visible timestamp. The delta is your glass-to-glass latency. Video-pipeline analyzers and dedicated latency boxes automate this for AV-over-IP networks, where the AV industry defines low, ultra-low, and zero latency tiers by measured end-to-end delay rather than marketing labels.
Measure each stage separately as well. Input delay, processing delay, and panel drive delay each have different owners and different fixes. A single end-to-end number tells you that you are slow; per-stage numbers tell you where.

Network Considerations

Once video moves over IP, congestion control dominates latency. Standard congestion control algorithms react over timescales longer than a round trip, which means a congested link can add hundreds of milliseconds before recovery. Research on sub-RTT congestion control, notably the Bolt approach from MIT, demonstrates that reacting to congestion within a single round-trip time can keep queuing delay near zero even at high utilization. For real-time video over IP, this class of algorithm is the difference between a stable 20 ms path and a stuttering 200 ms one.

Optimization Checklist

Work through this list before any latency-critical deployment:
  • Verify HDMI 2.0 compliance on every source, including cable certification at the required bandwidth.
  • Confirm the processor's ULL mode is active, not just available, and that the canvas fits the reduced pixel budget.
  • Enable high frame rate mode only when the doubled transport fits your capacity, and recheck the EDID the processor advertises.
  • Measure per-stage latency with timestamping, and record a baseline before changing anything.
  • Monitor pixel usage continuously during operation, because content changes can push a canvas over its ULL limit mid-event.
  • For networked pipelines, validate congestion behavior under load, not just on an idle switch.

Emerging Research and Future Trends

Latency research is accelerating along three fronts. Sub-RTT congestion control, as demonstrated in the Bolt research, is moving from papers toward production networking stacks, promising queuing delay measured in microseconds on well-provisioned links. AI-driven adaptive bitrate and latency tuning is the second front: systems that predict congestion and pre-emptively adjust encoding parameters before delay spikes, rather than reacting after frames are already queued. The third front is physical: optical direct-drive links that remove serialization and encoding stages entirely, pushing measured delay toward the zero-latency tier for fixed installations.
For developers, the practical takeaway is that the software side is converging on what LED hardware achieved years ago. Real-time transport libraries and interactive streaming platforms now treat sub-second, and in some cases sub-250 ms, audience delay as a baseline expectation rather than an engineering triumph.

Definitions Glossary

Ultra Low Latency (ULL): End-to-end video delay below one frame period, typically 1 to 16 ms, achieved by bypassing buffering stages in the processing path.
Frame Period: The duration of a single frame, calculated as one divided by the frame rate, which sets the minimum quantum of pipeline delay.
EDID: Extended Display Identification Data, the descriptor a display or processor advertises to a source describing accepted resolutions and refresh rates.
HFR (High Frame Rate): A processor mode that transports video at elevated refresh rates, shrinking the delay cost of every fixed buffer in the pipeline.
Interactive Live Streaming (ILS): A streaming mode where audience-facing delay is low enough for real-time interaction, with viewers promotable to active participants, as offered in VideoSDK's ILS capability.
Sub-RTT Congestion Control: A network algorithm that detects and reacts to congestion within a single round-trip time, keeping queuing delay near zero under load.

Key Takeaways

  • Ultra low latency means sub-frame end-to-end delay, and the frame period, one divided by frame rate, sets the floor for what your pipeline can achieve.
  • Enabling ULL on professional LED processors roughly halves pixel capacity, and combining it with HFR mode reduces it further, so canvas resolution must be planned against the reduced budget.
  • ULL modes expect HDMI 2.0-class PC sources with matching EDID timing; SDI sources and genlock mismatches are the most common deployment failures.
  • Measure latency per stage with frame timestamping, not just end to end, because per-stage numbers reveal where delay actually accumulates.
  • For interactive streaming products, VideoSDK's real-time SDKs and interactive live streaming mode deliver the low-latency audience interaction tier without building the transport layer yourself.

Conclusion

Ultra low latency is a budget, not a feature flag. Frame math sets the floor, hardware modes trade pixel capacity for milliseconds, and measurement discipline keeps the budget honest. Whether you are driving an LED wall for virtual production or building an interactive streaming product, the engineering question is the same: where is your delay, and is it worth what you paid for it in capacity? Evaluate your pipeline against the checklist above, and if your product lives on the audience-interaction side of the latency spectrum, explore VideoSDK's interactive live streaming docs or start free at app.videosdk.live. What are you building where ultra low latency matters? Drop a comment, I'd love to hear which pipeline you are optimizing.
