Introduction to Server WebSocket

What is a Server WebSocket?

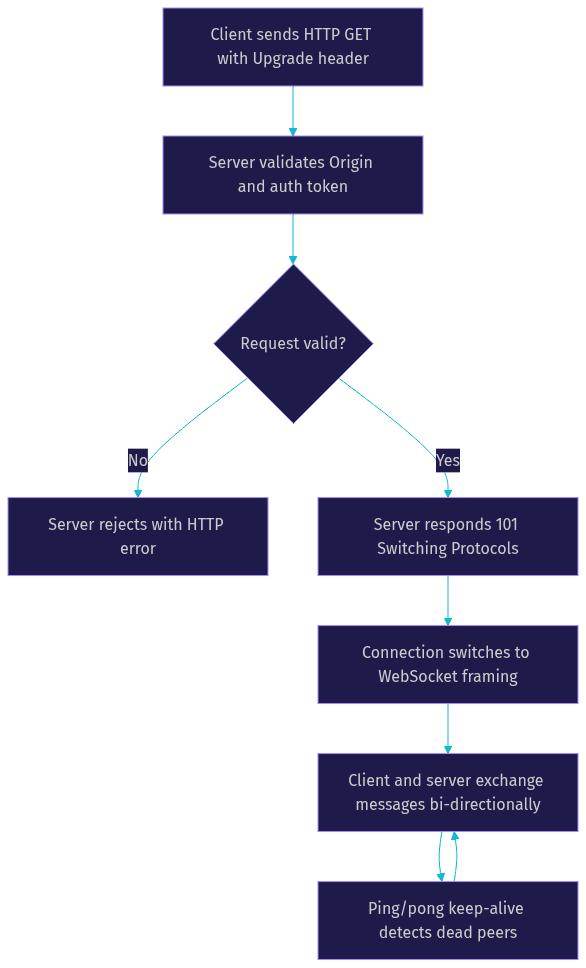

How Does a Server WebSocket Work?

Building a Server WebSocket: Core Concepts

• Persistent Connection: The server websocket maintains a long-lived connection for real-time data exchange.
• Full-Duplex Communication: Both client and server can push or receive data at any point.
• Protocol Support: The server websocket must implement the WebSocket protocol (RFC 6455), including handshakes, ping/pong heartbeats, and message framing.

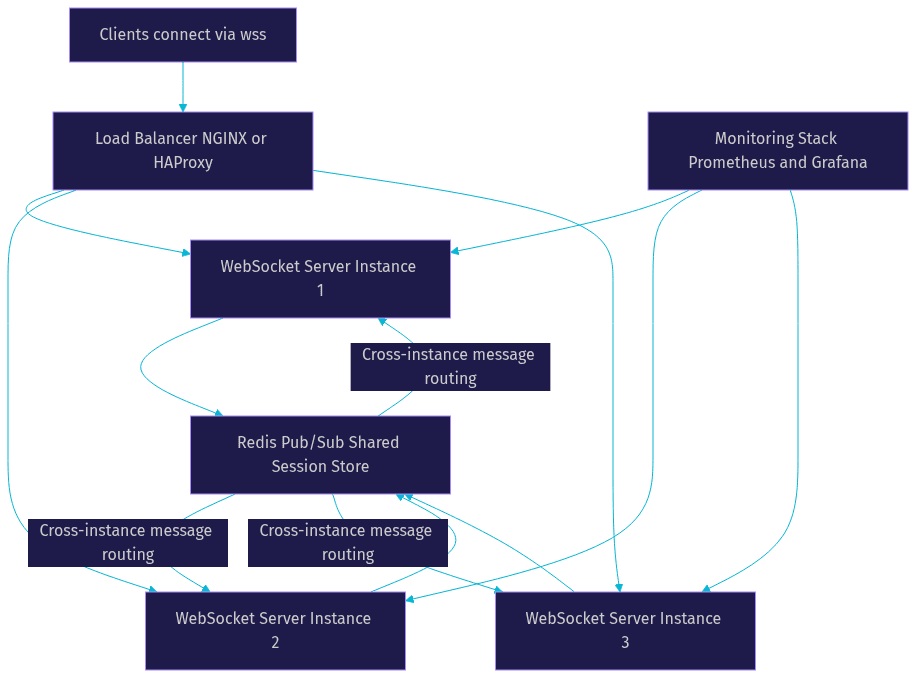

• Scalability: Real-world applications often require handling thousands of concurrent connections—choosing the right architecture and libraries is crucial.
• Security: Implementing secure WebSocket (wss://) and validating client data is critical.

• Node.js: ws, socket.io, and uWebSockets.js are popular libraries.
• Python: websockets, aiohttp, and FastAPI with websocket support.
• Kotlin/Java: Ktor, Spring Boot, and Java EE WebSocket API.
• C++: Boost.Beast, uWebSockets, and standalone implementations.

• For rapid prototyping: ws (Node.js), websockets (Python)
• For performance: uWebSockets.js (Node.js), Ktor (Kotlin)
• For full-stack integration: socket.io (Node.js), Spring Boot (Java)

Step-by-Step: Building a Server WebSocket in Python (with Code)

Setting Up the Environment

1pip install websockets
2

Example: Simple Python Server WebSocket (Echo Server)

1import asyncio
2import websockets
3
4async def echo(websocket, path):
5    async for message in websocket:
6        await websocket.send(f"Echo: {message}")
7
8async def main():
9    async with websockets.serve(echo, "localhost", 8765):
10        print("Server WebSocket running on ws://localhost:8765")
11        await asyncio.Future()  # run forever
12
13if __name__ == "__main__":
14    asyncio.run(main())
15

Explanation

• websockets.serve: Binds the server websocket to localhost on port 8765.
• echo coroutine: Handles each client connection. For every message received, it sends back an "Echo:" reply.
• asyncio.Future: Keeps the server alive indefinitely.

Step-by-Step: Building a Server WebSocket in Node.js (with Code)

Setting Up the Environment

1npm install ws
2

Example: Simple Node.js Server WebSocket

1const WebSocket = require("ws");
2
3const wss = new WebSocket.Server({ port: 8080 });
4
5wss.on("connection", function connection(ws) {
6  ws.on("message", function incoming(message) {
7    ws.send(`Echo: ${message}`);
8  });
9  console.log("Client connected to Server WebSocket");
10});
11
12console.log("Server WebSocket running on ws://localhost:8080");
13

Explanation

• WebSocket.Server: Starts the server websocket on port 8080.
• connection event: Handles new client connections.
• message event: Echoes received messages back to the client.

Step-by-Step: Building a Server WebSocket in Kotlin (with Code)

Using Ktor for a Minimal Kotlin Server WebSocket

1dependencies {
2    implementation("io.ktor:ktor-server-core:2.3.0")
3    implementation("io.ktor:ktor-server-netty:2.3.0")
4    implementation("io.ktor:ktor-server-websockets:2.3.0")
5}
6

Example: Minimal Ktor Server WebSocket

1import io.ktor.server.engine.*
2import io.ktor.server.netty.*
3import io.ktor.server.application.*
4import io.ktor.server.routing.*
5import io.ktor.server.websocket.*
6import io.ktor.websocket.*
7import java.time.Duration
8
9fun main() {
10    embeddedServer(Netty, port = 8080) {
11        install(WebSockets) {
12            pingPeriod = Duration.ofSeconds(15)
13        }
14        routing {
15            webSocket("/echo") {
16                for (frame in incoming) {
17                    if (frame is Frame.Text) {
18                        send("Echo: ${frame.readText()}")
19                    }
20                }
21            }
22        }
23    }.start(wait = true)
24}
25

Packaging Options & Explanation

• Dependencies: Ensure all Ktor modules for core, Netty, and WebSockets are included.
• webSocket route: Defines a server websocket at /echo path.
• Ping period: Maintains connection health.

Security Best Practices for Server WebSocket

• Use Secure WebSocket (wss://): Always deploy your server websocket behind TLS/SSL. This encrypts data in transit and protects against eavesdropping.
• Authentication: Authenticate clients before upgrading the connection. Use tokens, cookies, or mutual TLS.
• Input Validation: Sanitize and validate all incoming messages to prevent injection attacks.
• Origin Checking: Only accept connections from trusted origins.
• Rate Limiting: Limit connection and message rates per client.
• Follow RFC 6455 Section 10: This outlines specific security considerations for WebSocket servers, including denial-of-service and framing attacks.

Testing and Debugging Your Server WebSocket

• Use Echo Servers: Test with public WebSocket echo servers or your own minimal echo server.
• Browser Tools: Modern browsers include WebSocket inspection tools (Chrome DevTools: Network > WS tab).
• CLI Tools: Use wscat, websocat, or curl (with plugins) for manual testing.
• Logging: Add detailed server-side logging for connection, message, and error events.
• Simulate Load: Use tools like Artillery or custom scripts to simulate multiple connections and network conditions.

Real-World Applications and When to Use a Server WebSocket

• Real-time chat applications
• Multiplayer gaming
• Live dashboards & analytics
• IoT device control and telemetry

Conclusion
