What is the SIP communication protocol used for?

SIP is used to establish, manage, and terminate real-time multimedia sessions such as voice calls, video conferences, and messaging over IP networks.

How does SIP differ from RTP?

SIP handles the signaling and session management for multimedia communications, while RTP is used for delivering the actual media (voice, video) during the session.

What are the main components of a SIP network?

Key components include User Agents, Proxy Servers, Registrar Servers, Redirect Servers, and Location Servers.

Which transport protocols does SIP use?

SIP can operate over UDP, TCP, and TLS. TLS is preferred for encrypted, secure communications.

What are common SIP request methods?

Common methods include INVITE (start session), ACK (acknowledge session), BYE (end session), REGISTER (register user location), and OPTIONS (query capabilities).

How can you secure SIP communications?

Secure SIP by using TLS for signaling encryption and SRTP (Secure RTP) for encrypting media streams.

What challenges are faced when implementing SIP?

Common challenges include NAT traversal, firewall configuration, ensuring reliability, and maintaining security across networks.

SIP Communication Protocol: In-Depth Guide for Developers (2025)

Comprehensive developer guide to the SIP communication protocol: architecture, call flows, security, methods, and VoIP integration for 2025.

Introduction to SIP Communication Protocol

The SIP communication protocol (Session Initiation Protocol) is a cornerstone of modern real-time communication technologies. Designed to establish, modify, and terminate multimedia sessions, SIP powers a wide range of applications from VoIP telephony and video conferencing to instant messaging and even IoT device connectivity. As organizations increasingly adopt IP-based solutions, understanding SIP has become essential for developers building scalable, secure, and interoperable communication systems.

In this article, we provide a comprehensive overview of SIP: its definition, core architecture, message flow, request methods, security, and best practices. Whether you're engineering a VoIP platform, integrating SIP trunking, or building next-gen communication tools for 2025, this guide covers practical insights and real-world examples to accelerate your SIP implementation journey.

What is SIP Communication Protocol?

Session Initiation Protocol (SIP) is an application layer protocol defined by

RFC 3261

, designed for establishing, maintaining, and terminating multimedia communication sessions over IP networks. Unlike protocols that handle actual media transport (such as RTP), SIP focuses on signaling—the process of setting up and managing sessions.

SIP operates at the application layer of the OSI model, enabling flexibility and extensibility. It is text-based, making SIP messages easy to read, debug, and extend. SIP is not limited to voice; it supports video, messaging, file transfers, and IoT device communication, making it highly versatile.

Key use cases:

VoIP (Voice over IP): Initiating and managing voice calls across local and global networks.
Video conferencing: Establishing and modifying video sessions between multiple endpoints.
IoT: Managing communication between smart devices, sensors, and gateways.

SIP's modular nature allows for integration with other protocols, notably SDP (Session Description Protocol) for media negotiation and RTP (Real-Time Transport Protocol) for media transport. Its widespread adoption is driven by its openness, extensibility, and compatibility with a vast ecosystem of VoIP and unified communications platforms.

SIP Communication Protocol Architecture

The power of SIP lies in its robust and scalable architecture. Understanding its main components helps developers build resilient and interoperable communication solutions.

Main SIP network elements:

User Agent (UA): The endpoint device or software (softphone, IP phone, client app) that initiates or receives SIP requests.
- User Agent Client (UAC): Sends SIP requests.
- User Agent Server (UAS): Receives and responds to requests.
Proxy Server: Forwards SIP requests and responses between clients, enforcing policies, routing, and sometimes authentication.
Registrar Server: Handles registration requests, maintaining a mapping between user addresses and their current IP locations.
Redirect Server: Instructs clients to contact alternate addresses, simplifying call routing.
Location Server: Stores and provides user location information for call routing and registration.

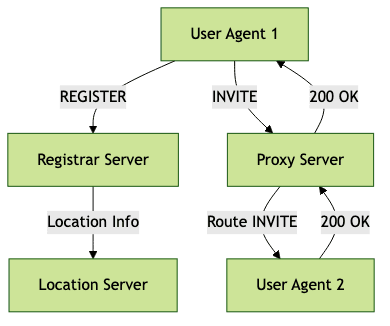

Below is a Mermaid diagram illustrating SIP architecture:

This modular design makes SIP a scalable choice for both small and large deployments, supporting redundancy, load balancing, and complex routing scenarios.

How SIP Communication Protocol Works

A typical SIP session goes through several stages, each involving specific signaling exchanges:

Registration:
- The UA sends a REGISTER request to the Registrar server, associating its SIP URI with its current IP address.
Call Setup:
- The caller sends an INVITE request (including SDP for media negotiation) to initiate a session. Proxies route the INVITE to the intended recipient.
Media Negotiation:
- SIP uses SDP within messages to negotiate codecs, ports, and media types. Once agreed, endpoints exchange media over RTP.
Session Termination:
- The BYE request is sent to end the session.

SIP Request and Response Messages

SIP signaling relies on a request-response model, similar to HTTP. Each message consists of a start line, headers, and an optional body.

Example: SIP INVITE Message

1INVITE sip:bob@example.com SIP/2.0
2Via: SIP/2.0/UDP pc33.example.com;branch=z9hG4bK776asdhds
3Max-Forwards: 70
4To: Bob <sip:bob@example.com>
5From: Alice <sip:alice@example.com>;tag=1928301774
6Call-ID: a84b4c76e66710@pc33.example.com
7CSeq: 314159 INVITE
8Contact: <sip:alice@pc33.example.com>
9Content-Type: application/sdp
10Content-Length: 151
11
12v=0
13o=alice 2890844526 2890844526 IN IP4 pc33.example.com
14s=Session SDP
15c=IN IP4 pc33.example.com
16t=0 0
17m=audio 49170 RTP/AVP 0
18

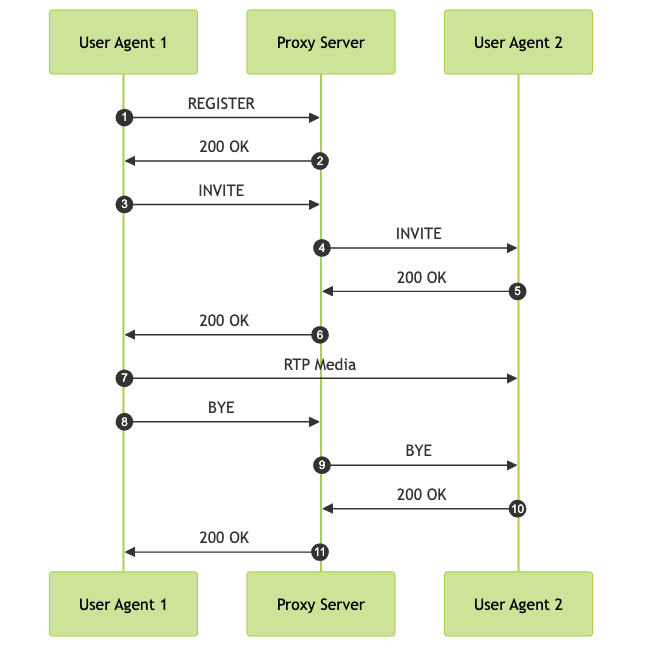

SIP Call Flow Diagram

The following Mermaid diagram shows a basic SIP call setup and teardown:

Each step is critical to ensuring proper session establishment, media negotiation, and clean termination.

SIP Communication Protocol Methods and Response Codes

SIP defines a set of request methods (often called "verbs") and response codes to enable rich signaling semantics.

Common SIP Request Methods

INVITE: Initiates a session.
ACK: Confirms session establishment.
BYE: Terminates a session.
REGISTER: Registers a UA with a registrar.
OPTIONS: Queries server capabilities.

SIP Response Code Classes

1xx: Provisional (e.g., 180 Ringing)
2xx: Success (e.g., 200 OK)
3xx: Redirection (e.g., 302 Moved Temporarily)
4xx: Client Error (e.g., 404 Not Found)
5xx: Server Error (e.g., 500 Server Internal Error)
6xx: Global Failure (e.g., 603 Decline)

Method	Typical Use	Example Response
INVITE	Start a call/session	100, 180, 200
ACK	Confirm call setup	200
BYE	End a call/session	200
REGISTER	UA registration	200, 401
OPTIONS	Capabilities inquiry	200

Transport and Security in SIP Communication Protocol

SIP can operate over several transport protocols, each offering distinct advantages:

UDP: Common for SIP due to low latency and simplicity, but lacks reliability and security.
TCP: Ensures reliable, ordered delivery and better suited for large messages, but with higher overhead.
TLS: Provides encrypted, secure signaling by wrapping TCP, recommended for securing SIP traffic.

SIP Security Basics:

TLS (Transport Layer Security): Encrypts SIP signaling to prevent interception and tampering.
SRTP (Secure RTP): Encrypts the RTP media streams negotiated by SIP.

Combining TLS and SRTP provides end-to-end security for both signaling and media, protecting against eavesdropping and various attacks.

SIP Communication Protocol in VoIP Systems

SIP is the backbone of modern VoIP telephony, supporting both internal and external communication for businesses and service providers.

Integration with RTP and SDP:
- SIP handles signaling, SDP is used within SIP messages for negotiating media parameters (codecs, ports), and RTP carries the actual voice/video streams.
SIP Trunking Example:
- Businesses use SIP trunks to connect their on-premises PBX systems to Internet Telephony Service Providers (ITSPs), enabling scalable, cost-effective voice services over IP.

SIP in VoIP enables:

Easy scalability and global reach
Interoperability among diverse devices and platforms
Rich communication features (presence, messaging, video)

Challenges and Best Practices for SIP Communication Protocol Implementation

Implementing SIP in production environments comes with several technical challenges:

NAT Traversal & Firewall Issues:
- SIP and RTP traffic often struggle with NAT and firewall traversal. Solutions include STUN, TURN, and ICE protocols.
Reliability, Redundancy, Scalability:
- Deploy multiple SIP proxies and registrars for high availability. Use load balancers and monitor server health.
Security Best Practices:
- Always use TLS for SIP signaling and SRTP for media. Authenticate and authorize all SIP endpoints. Regularly update software to patch vulnerabilities.

By following these best practices, developers can build resilient, secure, and future-proof SIP-based communication platforms.

Conclusion

The SIP communication protocol is a foundational technology for VoIP, video conferencing, and unified communications platforms in 2025. Its flexible architecture, rich signaling capabilities, and extensibility make it a go-to choice for building scalable, secure, and interoperable communication solutions. As SIP continues to evolve—especially with the rise of IoT and 5G—developers who master its intricacies will be well-positioned to lead the next generation of real-time communication innovations.
