Session Initiation Protocol SIP: The Definitive Guide for Developers (2025)

A comprehensive, hands-on guide to Session Initiation Protocol SIP for developers. Explore SIP architecture, call flow, message structure, security, code examples, and practical VoIP integration in 2025.

Introduction to Session Initiation Protocol SIP

The Session Initiation Protocol SIP is a foundational signaling protocol that enables the control and management of multimedia communication sessions over IP networks. From powering VoIP calls and video conferencing to supporting unified communications infrastructures, Session Initiation Protocol SIP has become an essential technology in 2025 for developers and network engineers alike. SIP’s simple, text-based approach and extensibility make it the backbone of modern IP-based communication, allowing seamless integration of voice, video, and messaging applications across diverse platforms and devices.
In this comprehensive guide, we’ll explore the architecture, message structure, core methods, practical implementation, and future trajectory of Session Initiation Protocol SIP. Whether you’re building a VoIP service, integrating SIP with unified communications, or securing SIP endpoints in large-scale deployments, this resource will provide the technical depth and actionable insights required for success.

What is Session Initiation Protocol SIP?

Session Initiation Protocol SIP is a standardized signaling protocol designed to establish, modify, and terminate real-time multimedia sessions over IP networks. Defined by the IETF in RFC 3261, SIP’s primary role is to coordinate the signaling and session management required for voice, video, instant messaging, and other forms of interactive communication.

SIP as a Signaling Protocol

SIP operates exclusively as a signaling protocol, meaning it’s responsible for setting up, managing, and ending sessions but does not handle the actual transmission of media streams (such as audio or video). Instead, it negotiates session parameters and delegates media transport to protocols like RTP.

Key Functions of SIP

  • Session Establishment: Initiates and negotiates parameters for multimedia sessions (e.g., VoIP calls)
  • Session Modification: Supports changes to session characteristics mid-call, such as adding video to an audio call
  • Session Termination: Gracefully tears down sessions when communication ends
  • User Location: Determines the current IP address of endpoints
  • User Availability: Checks if users are available for communication

SIP in the OSI Model

SIP typically operates at the application layer (Layer 7) in the OSI model, leveraging lower-layer protocols (like UDP, TCP, and TLS) for transport.
Diagram

SIP Architecture and Core Components

Understanding the architecture of Session Initiation Protocol SIP is essential for designing, deploying, and troubleshooting SIP-based systems.

SIP Clients and Servers

SIP endpoints are typically categorized as clients (initiating requests) and servers (responding to requests). However, most SIP entities act as both, depending on the call flow. SIP endpoints include softphones, IP phones, gateways, and PBXs.

SIP Network Elements: User Agent, Proxy, Registrar, Redirect, Location Server

  • User Agent (UA): Acts as both client (UAC) and server (UAS) for SIP messaging
  • Proxy Server: Routes SIP messages and enforces policies
  • Registrar Server: Handles registration of user locations
  • Redirect Server: Directs clients to contact alternative addresses
  • Location Server: Maintains mapping of SIP addresses to IP addresses

SIP URIs and Addressing

SIP uses URIs similar to email addresses to identify endpoints, e.g., sip:alice@example.com. This enables flexible addressing and routing across domains and devices.

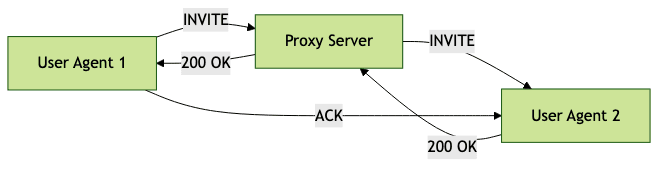

SIP Call Flow Overview

A typical SIP call involves several network elements exchanging messages to establish a session.
Diagram

SIP Message Structure and Common Methods

Session Initiation Protocol SIP is text-based and modeled after HTTP, making it easy to read, debug, and extend.

SIP Request Methods (INVITE, ACK, BYE, etc.)

SIP defines several request methods to control call setup and management:
  • INVITE: Initiates a call/session
  • ACK: Confirms session establishment
  • BYE: Terminates a session
  • CANCEL: Cancels pending requests
  • REGISTER: Registers a user with a SIP registrar

Example SIP INVITE Message

1INVITE sip:bob@example.com SIP/2.0
2Via: SIP/2.0/UDP alicepc.example.com;branch=z9hG4bK776asdhds
3Max-Forwards: 70
4To: Bob <sip:bob@example.com>
5From: Alice <sip:alice@example.com>;tag=1928301774
6Call-ID: a84b4c76e66710
7CSeq: 314159 INVITE
8Contact: <sip:alice@alicepc.example.com>
9Content-Type: application/sdp
10Content-Length: 151
11
12v=0
13o=alice 2890844526 2890844526 IN IP4 alicepc.example.com
14s=-
15c=IN IP4 203.0.113.1
16t=0 0
17m=audio 49170 RTP/AVP 0
18a=rtpmap:0 PCMU/8000
19

SIP Response Codes

SIP response codes are similar to HTTP status codes, providing standardized feedback:
  • 1xx: Provisional (e.g., 100 Trying)
  • 2xx: Success (e.g., 200 OK)
  • 3xx: Redirection (e.g., 302 Moved Temporarily)
  • 4xx: Client Error (e.g., 404 Not Found)
  • 5xx: Server Error (e.g., 500 Server Internal Error)
  • 6xx: Global Failure (e.g., 603 Decline)

Text-based Nature and Extensibility

Session Initiation Protocol SIP’s text-based messages promote extensibility. Developers can add custom headers or parameters to support new features without breaking standard interoperability, making SIP highly adaptable to evolving multimedia communication needs.

How Session Initiation Protocol SIP Works

Let’s examine a typical SIP session establishment, highlighting the protocol’s step-by-step signaling logic and its integration with RTP for media transport.

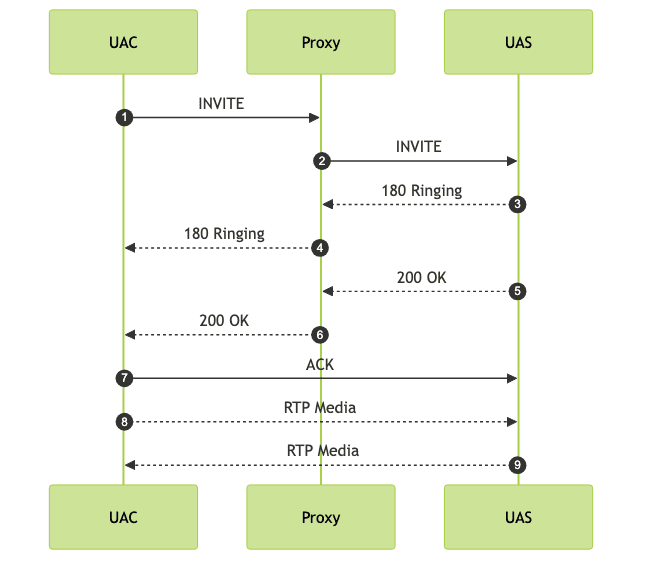

Step-by-Step Call Establishment

  1. User Agent Client (UAC) sends an INVITE to initiate a session
  2. Proxy Server forwards the INVITE to the called party
  3. User Agent Server (UAS) responds with provisional (e.g., 180 Ringing) and final (200 OK) responses
  4. UAC sends an ACK to confirm session establishment
  5. Media session (audio/video) is established using RTP
Diagram

Media Negotiation and RTP Integration

Session Initiation Protocol SIP does not carry media streams itself—instead, it uses SDP (Session Description Protocol) within SIP messages to negotiate codecs, ports, and other parameters. Once established, RTP (Real-time Transport Protocol) handles actual media transport between endpoints.

SIP Session Termination and Modification

  • Termination: Either side can send a BYE request to end the session. SIP servers relay the BYE, and the media stream is stopped.
  • Modification: SIP re-INVITE or UPDATE requests allow mid-session changes, such as adding video or changing codecs, with new SDP negotiation.

SIP Applications and Use Cases

Session Initiation Protocol SIP powers a wide array of multimedia communication solutions in 2025:

VoIP Calls

SIP is the de facto signaling protocol for VoIP, enabling reliable voice calls over IP networks with global reach and interoperability.

Video Conferencing

SIP supports seamless video call setup and management, making it a core protocol for video conferencing platforms and unified communications systems.

Instant Messaging and Presence

SIP extensions (such as SIMPLE) enable real-time messaging and presence, allowing users to see availability and exchange instant messages.

File Transfer, Online Games, Contact Centers

SIP facilitates session setup for real-time file transfer, online gaming, and is extensively used in contact centers for intelligent call routing and workload management.

Implementing SIP: Practical Considerations

SIP Security (TLS, Authentication)

Security is critical in Session Initiation Protocol SIP deployments. Use TLS to encrypt SIP signaling, and implement robust authentication (Digest, OAuth) to prevent unauthorized access and call fraud.

SIP Integration with Existing Systems

Integrating SIP with legacy PBXs, CRM platforms, or cloud services requires protocol translation (e.g., SIP-to-PRI gateways), directory synchronization, and careful mapping of SIP URIs to enterprise identities.

Common Challenges and Solutions

Developers face NAT traversal, firewall issues, and SIP interoperability challenges. Solutions include deploying STUN/TURN servers, using SIP outbound extensions, and adhering to RFC 3261 best practices for maximum compatibility.

Conclusion: The Future of Session Initiation Protocol SIP

Session Initiation Protocol SIP remains a cornerstone of unified communications in 2025, driving innovation in VoIP, video, and collaborative platforms. Its open, extensible nature ensures ongoing relevance as new multimedia communication paradigms emerge. Developers and architects who master SIP are well-positioned to shape the future of global digital interaction.
