Media Server UPnP: The Ultimate 2025 Guide for Home Streaming

Introduction to Media Server UPnP

How UPnP Works in a Media Server Environment

What is Universal Plug and Play (UPnP)?

• SSDP (Simple Service Discovery Protocol): Used for discovering UPnP devices and services.
• HTTP: Transfers control and media data.
• XML: Describes device capabilities and services.
• SOAP (Simple Object Access Protocol): Facilitates messaging and control commands.

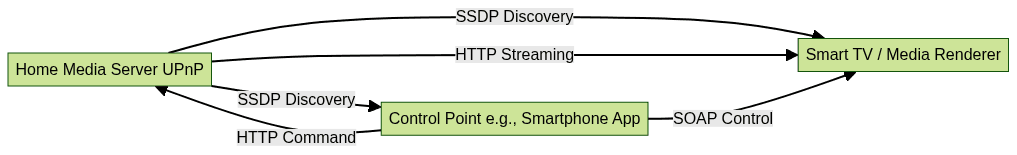

Network Topology of a UPnP Media Server

Core Components: Media Server, Renderer, Control Point

• Media Server: Hosts and shares digital audio, video, and image files. Implements SSDP and HTTP servers.
• Media Renderer: Device that plays the shared content (e.g., smart TV, network speaker).
• Control Point: Client or app that browses, selects, and commands playback (e.g., smartphone app).

Setting Up a Media Server UPnP

Prerequisites for Media Server UPnP

• Hardware: A computer (Windows, macOS, Linux) or dedicated NAS with sufficient CPU for transcoding if needed.
• Network: Wired Ethernet or strong Wi-Fi for high-bitrate video streaming. All devices must be on the same subnet.
• Operating System: Most media server UPnP software is cross-platform.
• Security Considerations: UPnP can expose services to your LAN, and if improperly configured, to the internet. Disable UPnP on your router unless needed, and use strong passwords and firewalls.

Step-by-Step Setup Guide

1. Install Jellyfin:

1sudo apt update
2sudo apt install jellyfin
3

2. Enable UPnP/DLNA Plugin:
   • In the Jellyfin web dashboard, go to Plugins > Catalog.
   • Search for "DLNA" and install the plugin.
3. Configure Libraries:
   • Go to Dashboard > Libraries > Add Library.
   • Select content type (Movies, Music, etc.), and specify your media folder.
4. Start the Server:

1sudo systemctl start jellyfin
2

5. Discover on Client Devices:
   • Open a UPnP-compatible app (e.g., VLC, Kodi, or your smart TV's media browser).
   • The Jellyfin server should appear under available network media sources.

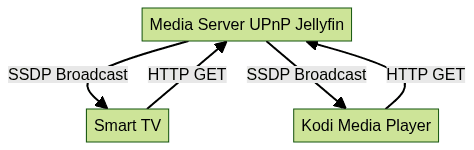

Device Discovery Diagram

Popular UPnP Media Server Software

Cross-Platform and Open Source Solutions

• Jellyfin: Modern, open source, supports UPnP/DLNA, strong community.
• Kodi: Flexible media center, UPnP server/client, supports plugins and customizations.
• Asset UPnP: Audiophile-focused, robust transcoding, metadata handling.
• MinimServer: Lightweight, Java-based, ideal for music streaming.
• JRiver Media Center: Feature-rich, multi-platform, excellent library management.

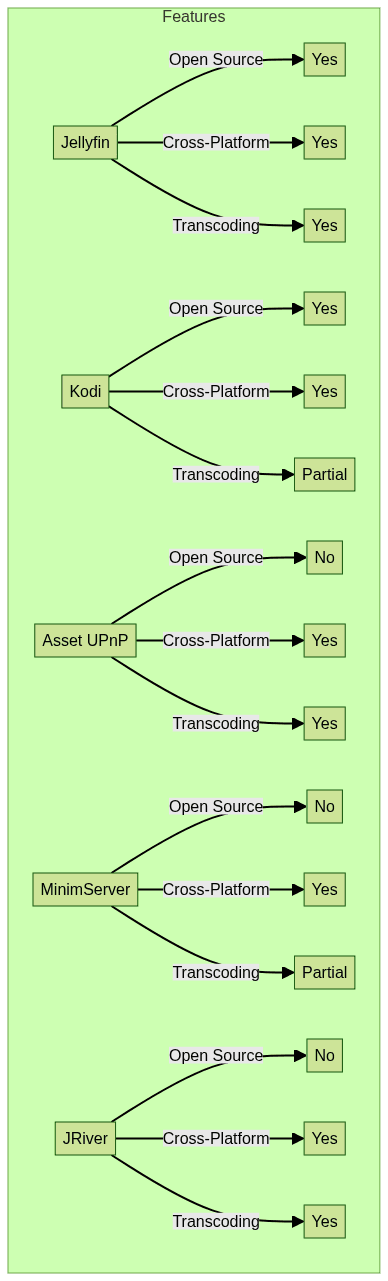

Feature Comparison Table

Commercial and Proprietary Options

• DivX Media Server: Simple setup, DLNA/UPnP support.
• Elgato Eyeconnect: Mac-focused, stream to a range of devices.
• MythTV: Open source DVR with UPnP capabilities.

Advanced Media Server UPnP Configuration

Customizing Libraries, Transcoding, and Playlists

• Custom Library Organization: Tag and organize media by genre, artist, or custom fields.
• Transcoding: Dynamically convert media for compatibility with different devices. Example Jellyfin config snippet to set max bitrate:

1{
2  "Transcoding": {
3    "MaxBitrate": 8000000,
4    "AudioChannels": 2,
5    "VideoCodec": "h264"
6  }
7}
8

• Playlists: Create and share cross-device playlists using .m3u or server-based playlists.

Integrating with DLNA, AirPlay, and Other Protocols

• Enable both UPnP and DLNA options in your server configuration.
• For AirPlay integration, use plugins or bridge tools (e.g., Shairport-sync).
• Test streaming with multiple client apps (VLC, BubbleUPnP, smart TVs) to ensure interoperability.

Security and Privacy in Media Server UPnP

• Network Exposure: If UPnP is enabled on your router, external devices may access your media server. Always restrict UPnP to your LAN.
• Device Discovery Abuse: Malicious devices could attempt to exploit UPnP services.

• Disable UPnP on your router unless absolutely needed for external access.
• Restrict media server access by IP, subnet, or user authentication.
• Keep server software updated and monitor logs for unauthorized access.
• Use firewalls and strong passwords on both the server and your network.

Troubleshooting Common Media Server UPnP Issues

• Discovery Problems: Ensure all devices are on the same subnet and that multicast traffic is allowed on your network.
• Connection Drops: Check for Wi-Fi interference or bandwidth limitations. Prefer wired connections for stable streaming.
• Format Support Issues: Some clients may not support all codecs. Enable transcoding or use compatible file formats for streaming.

Conclusion: Is Media Server UPnP Right for You?
