Exploring WebRTC SFU: Architecture, Use Cases, and Optimization Tips

Explore the comprehensive guide on WebRTC SFU, including its architecture, setup, advanced features, real-world use cases, and optimization techniques for scalable real-time communication.

Introduction to WebRTC SFU

What is WebRTC?

WebRTC, short for Web Real-Time Communication, is an open-source project that enables web applications and websites to capture, and possibly broadcast, audio and/or video media. It also allows peer-to-peer data sharing between browsers without the need for an intermediary server. Launched by Google in 2011, WebRTC has revolutionized how real-time communication is integrated into web and mobile applications, making it simpler, faster, and more efficient.

What is SFU (Selective Forwarding Unit)?

A Selective Forwarding Unit (SFU) is a server component used in WebRTC architectures to manage the distribution of media streams. Unlike the Multipoint Control Unit (MCU), which mixes all incoming media streams into a single output stream, the SFU forwards the media streams it receives from each participant to the other participants selectively. This method significantly reduces the processing load on the server and allows for more efficient use of bandwidth.

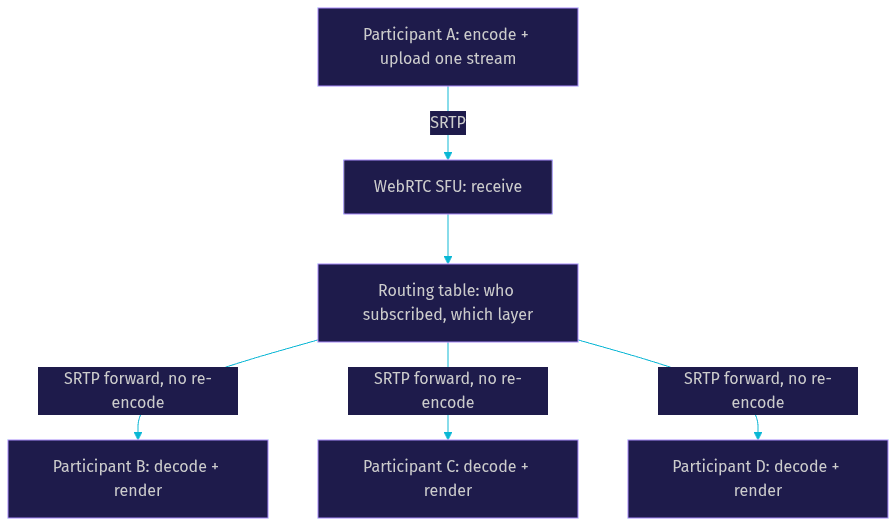

In an SFU setup, each participant sends their media stream to the SFU, which then forwards each stream to all other participants. This approach is particularly advantageous for scenarios involving multiple participants, such as video conferences or webinars, as it minimizes latency and maximizes the quality of the transmitted media. By not altering the media streams, SFUs also preserve the original quality and allow for scalable solutions where each participant can receive a different quality stream based on their network conditions.

How WebRTC SFU Works?

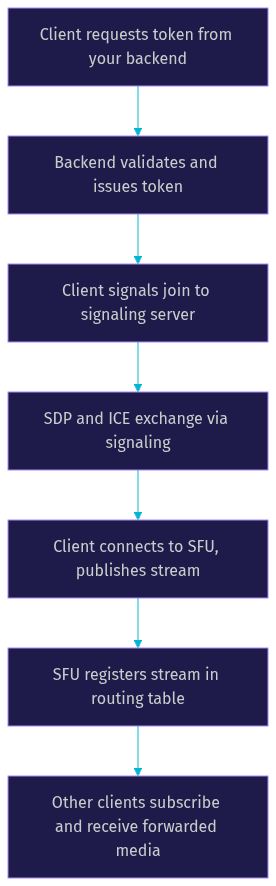

WebRTC SFU works by acting as an intermediary that receives media streams from multiple participants and forwards them to the intended recipients. Here’s a step-by-step breakdown of how it operates:
  1. Media Stream Capture: Each participant captures their audio and video streams using their device’s camera and microphone.
  2. Stream Transmission to SFU: The captured streams are transmitted to the SFU server using WebRTC protocols.
  3. Stream Management: The SFU receives the incoming streams and manages the distribution. It decides which streams to forward to which participants based on the current configuration and the participants' requirements.
  4. Selective Forwarding: The SFU selectively forwards the streams to the other participants. This can include forwarding the full-quality stream, a lower quality stream, or a combination of different streams depending on each participant's network capability and preferences.
  5. Stream Reception and Playback: The participants receive the forwarded streams and play them back using their web browsers or applications.
An illustrative diagram of an SFU setup would show multiple users sending their media streams to the SFU, which then selectively forwards each stream to all other users. This setup ensures efficient bandwidth usage and allows for scalable video conferencing solutions where each participant can receive the best possible quality stream based on their individual network conditions.

Basic Concepts and Foundational Code Examples

Setting Up a WebRTC SFU

Setting up a WebRTC SFU involves several steps and the use of specific tools and libraries. This section will guide you through the initial setup process using popular libraries such as Node.js, socket.io, and mediasoup.

Step 1: Install Node.js and Required Libraries

First, ensure that Node.js is installed on your system. Then, install the necessary libraries:
1npm install express socket.io mediasoup

Step 2: Initialize the Application

Create a basic Express application and set up socket.io for real-time communication:
1    const express = require('express');
2    const app = express();
3    const http = require('http');
4    const server = http.createServer(app);
5    const io = require('socket.io')(server);
6    const mediasoup = require('mediasoup');
7
8    let worker;
9    (async () => {
10      worker = await mediasoup.createWorker();
11      const router = await worker.createRouter({ mediaCodecs: [...] });
12      // Further implementation...
13    })();
14
15    server.listen(3000, () => {
16      console.log('Server is running on port 3000');
17    });
This script initializes the Express server and sets up mediasoup to handle media routing.

Step 3: Create Transport for Media Streams

Create transport for handling incoming and outgoing media streams.
1io.on('connection', socket => {
2      socket.on('create-transport', async () => {
3        const transport = await router.createWebRtcTransport({
4          listenIps: [{ ip: '0.0.0.0', announcedIp: 'your.public.ip' }],
5          enableUdp: true,
6          enableTcp: true,
7          preferUdp: true,
8        });
9
10        socket.emit('transport-created', {
11          id: transport.id,
12          iceParameters: transport.iceParameters,
13          iceCandidates: transport.iceCandidates,
14          dtlsParameters: transport.dtlsParameters,
15        });
16      });
17    });
This code snippet sets up the necessary transport mechanisms for WebRTC SFU.

WebRTC SFU Use Cases

To demonstrate a basic use case of WebRTC SFU, we will create a simple multi-user video conferencing application. This example will guide you through the steps required to implement this use case.

Step 1: Client-Side Setup

On the client side, use JavaScript to capture and send media streams.
1<script>
2      const socket = io();
3
4      navigator.mediaDevices.getUserMedia({ video: true, audio: true })
5        .then(stream => {
6          document.querySelector('video#localVideo').srcObject = stream;
7
8          socket.emit('join-room', 'roomId', stream);
9
10          socket.on('transport-created', async (data) => {
11            const transport = createWebRtcTransport(data);
12            stream.getTracks().forEach(track => {
13              transport.sendTrack({ track });
14            });
15          });
16        });
17
18      function createWebRtcTransport(data) {
19        // Implementation for creating and connecting WebRTC transport
20      }
21    </script>
This script captures the user's media stream and sends it to the SFU server.

Step 2: Server-Side Handling

On the server side, handle incoming streams and forward them to other participants.
1io.on('connection', socket => {
2      socket.on('join-room', async (roomId, stream) => {
3        const transport = await router.createWebRtcTransport({ /* config */ });
4        socket.emit('router-rtp-capabilities', router.rtpCapabilities);
5
6        transport.on('connect', async ({ dtlsParameters }, callback) => {
7          await transport.connect({ dtlsParameters });
8          callback();
9        });
10
11        transport.on('produce', async ({ kind, rtpParameters }, callback) => {
12          const producer = await transport.produce({ kind, rtpParameters });
13          callback({ id: producer.id });
14        });
15
16        // Further implementation to handle incoming stream
17      });
18    });
This snippet manages the transport connections and handles the media streams.

Advanced WebRTC SFU Features

Advanced WebRTC SFU features enhance the performance and quality of real-time communication applications. Here are a few key features:
  • Bandwidth Management: SFUs can dynamically adjust the bitrate of streams to match the available bandwidth, ensuring smooth playback even under varying network conditions.
  • Simulcast: Simulcast allows the SFU to send multiple versions of the same stream at different quality levels. This enables clients to choose the stream that best matches their current bandwidth, optimizing performance and quality.
  • Scalable Video Coding (SVC): SVC further improves stream efficiency by encoding a video stream in layers. Clients can select the appropriate layer based on their processing power and bandwidth, providing a scalable solution that adapts to diverse client capabilities.

Build Live Streaming Application using WebRTC SFU

Set Up Live Streaming App

WebRTC SFU is well-suited for live streaming scenarios where real-time interaction and low latency are crucial. Here’s a detailed use case demonstrating how to set up a live streaming application using WebRTC SFU.

Step 1: Setting Up the Server-Side Environment

To handle live streaming, configure the server to manage multiple incoming and outgoing streams effectively.
1const createTransport = async () => {
2      const transport = await router.createWebRtcTransport({
3        listenIps: [{ ip: '0.0.0.0', announcedIp: 'your.public.ip' }],
4        enableUdp: true,
5        enableTcp: true,
6        preferUdp: true,
7      });
8      return transport;
9    };
10
11    io.on('connection', async socket => {
12      const transport = await createTransport();
13      socket.emit('transport-created', transport.id);
14
15      socket.on('broadcast-stream', async ({ kind, rtpParameters }) => {
16        const producer = await transport.produce({ kind, rtpParameters });
17        socket.emit('producer-created', producer.id);
18      });
19
20      socket.on('consume-stream', async ({ producerId, rtpCapabilities }) => {
21        const consumer = await transport.consume({
22          producerId,
23          rtpCapabilities,
24          paused: false,
25        });
26        socket.emit('consumer-created', {
27          id: consumer.id,
28          producerId: consumer.producerId,
29          kind: consumer.kind,
30          rtpParameters: consumer.rtpParameters,
31        });
32      });
33    });
This script configures the SFU to handle both broadcasting and consuming streams, enabling live streaming functionality.

Step 2: Client-Side Setup for Broadcasting

The broadcaster captures their media stream and sends it to the SFU:
1<script>
2      const socket = io();
3
4      navigator.mediaDevices.getUserMedia({ video: true, audio: true })
5        .then(stream => {
6          document.querySelector('video#localVideo').srcObject = stream;
7
8          stream.getTracks().forEach(track => {
9            socket.emit('broadcast-stream', { kind: track.kind, rtpParameters: /* RTP parameters */ });
10          });
11        });
12
13      socket.on('producer-created', producerId => {
14        console.log('Producer created with ID:', producerId);
15      });
16    </script>

Step 3: Client-Side Setup for Viewers

Viewers receive and play the live stream from the SFU:
1<script>
2      const socket = io();
3
4      socket.emit('consume-stream', { producerId: 'the-producer-id', rtpCapabilities: /* RTP capabilities */ });
5
6      socket.on('consumer-created', ({ id, kind, rtpParameters }) => {
7        const consumer = new RTCRtpReceiver(rtpParameters);
8        document.querySelector('video#remoteVideo').srcObject = consumer.track;
9      });
10    </script>

Optimizing WebRTC SFU Performance

To ensure optimal performance of a WebRTC SFU, consider the following techniques:
  • Load Balancing: Distribute the load across multiple SFU instances to manage large-scale deployments effectively. Use load balancers to route traffic based on current server load and geographic proximity to minimize latency.
  • Efficient Resource Management: Optimize server resources by monitoring CPU and memory usage. Adjust the number of concurrent streams each server can handle based on resource availability.
  • Performance Benchmarking: Regularly benchmark the SFU’s performance to identify bottlenecks and optimize configurations. Use tools like Jitsi Hammer or Tsung to simulate high-load scenarios and measure performance metrics.
  • Monitoring and Alerts: Implement monitoring solutions to track the health of the SFU instances. Set up alerts for critical metrics such as CPU usage, memory consumption, and network latency to proactively address potential issues.

Security Considerations for WebRTC SFU

Ensuring the security of a WebRTC SFU implementation is crucial to protect user data and maintain privacy. Here are some best practices:
  • Encryption: Use DTLS (Datagram Transport Layer Security) for encrypting the signaling data and SRTP (Secure Real-time Transport Protocol) for encrypting the media streams. This ensures that both control messages and media content are secure.
  • Authentication and Authorization: Implement strong authentication mechanisms to verify the identity of users and devices. Use token-based authentication to manage access rights and ensure only authorized users can connect to the SFU.
  • Secure Communication Channels: Ensure that all communication channels between clients and the SFU are secure. Use HTTPS for signaling traffic and encrypted WebSocket connections to prevent eavesdropping and tampering.
  • Regular Security Audits: Conduct regular security audits to identify and address potential vulnerabilities. Stay updated with the latest security patches and best practices to protect against emerging threats.
By following these security practices, you can create a secure WebRTC SFU environment that protects user data and maintains privacy.

Advanced Applications and In-Depth Analysis

Advanced WebRTC SFU Features

Advanced features in WebRTC SFU enhance the efficiency and quality of real-time communication applications. Here are some critical advanced features and their benefits:
Bandwidth Management Effective bandwidth management ensures that all participants receive the best possible stream quality without exceeding network limits. SFUs dynamically adjust the bitrate of streams based on the network conditions of each participant. This adjustment helps in maintaining smooth playback and reducing buffering, ensuring an optimal experience for all users.
Simulcast Simulcast enables an SFU to send multiple versions of the same video stream at different quality levels. This feature is crucial for adaptive streaming, where clients can switch between different quality streams based on their current bandwidth. For instance, a participant with a stable, high-speed connection can receive a high-quality stream, while another with limited bandwidth can receive a lower-quality stream to prevent lag.
Scalable Video Coding (SVC) SVC enhances the flexibility and efficiency of video transmission. It allows the video stream to be encoded in layers, enabling clients to select the appropriate layers based on their processing power and network conditions. This approach ensures that each participant receives the best possible quality without overloading their network or device.

Performance Optimization for Large-Scale WebRTC SFU Deployments

For large-scale WebRTC SFU deployments, performance optimization is critical. Here are some strategies to ensure optimal performance:
  • Load Balancing: Distribute traffic across multiple SFU instances using load balancers. This approach helps manage high traffic volumes, reduces latency, and prevents server overload.
  • Efficient Resource Management: Monitor and manage server resources to ensure efficient use. Implement auto-scaling to adjust the number of active SFU instances based on current traffic loads.
  • Benchmarking and Monitoring: Regularly benchmark SFU performance under various load conditions. Use monitoring tools to track key performance metrics such as CPU usage, memory consumption, and network latency. Set up alerts for anomalies to address issues proactively.

Conclusion

In conclusion, WebRTC SFU is a pivotal technology in modern web communication, offering scalability, efficiency, and security. Its selective forwarding architecture optimizes bandwidth usage and reduces latency, making it ideal for various applications like video conferencing and live streaming. With advanced features such as bandwidth management and simulcast, developers can create high-quality, adaptive experiences. By prioritizing performance optimization and security measures, WebRTC SFU ensures reliable, secure real-time communication across diverse platforms and use cases, shaping the future of web-based interactions.
