WebRTC with Python & React: Building Real-Time Communication Applications

Discover our comprehensive guide using WebRTC with Python. Learn aiortc setup, media stream handling, and build video chat apps with troubleshooting tips.

Introduction to WebRTC and Python

What is WebRTC?

Web Real-Time Communication, or WebRTC, is a groundbreaking technology that facilitates browser-to-browser applications for voice calling, video chat, and P2P file sharing without the need for internal plugins or third-party software. WebRTC supports video, audio, and generic data to be sent between peers, making it versatile for various applications from simple video conferencing.

Python's Role in WebRTC?

While WebRTC is traditionally embedded within web browsers, its implementation isn't limited to JavaScript environments. Python, known for its simplicity and readability, also supports WebRTC through various libraries, making it a viable option for server-side applications or even desktop clients where Python can manage or manipulate media streams before they are sent over the network.
One of the most notable Python libraries for WebRTC is aiortc, a library that provides a Pythonic interface to WebRTC and allows asynchronous management of WebRTC connections using Python’s asyncio module. aiortc offers a way to handle the signaling process, manage media streams, and integrate with other Python libraries, making it a powerful tool for developers looking to leverage WebRTC's capabilities within Python-based applications​ (

AIORTC ReadTheDocs

)​.
asyncio stands out by offering Pythonic wrappers around complex WebRTC components, such as the Session Description Protocol (SDP), Interactive Connectivity Establishment (ICE), and media stream handling. This adaptability allows developers familiar with Python to dive into real-time communication projects without having to master JavaScript or rely solely on browser-based implementations.

Why This Integration Matters

Integrating WebRTC with Python opens up a plethora of possibilities for applications. Python’s vast ecosystem, which includes frameworks for web development, data analysis, machine learning, and more, can be combined with real-time communication capabilities to create sophisticated, highly interactive platforms. Whether it’s for teleconferencing tools, live streaming services, or collaborative educational platforms, Python’s simplicity and WebRTC’s power form a formidable duo in the landscape of modern web technology.

Setting Up WebRTC with Python

Setting up WebRTC with Python primarily involves using the aiortc library, which provides the tools needed to create and manage real-time communication within Python applications. Here's a step-by-step guide to get you started with aiortc, from installation to basic configuration.

Installing aiortc

The first step in leveraging WebRTC in your Python environment is to install the aiortc library. aiortc depends on a number of system-level dependencies, which vary depending on your operating system. Below is a guide to installing aiortc on a Unix-based system (Linux, macOS). For Windows, the installation steps can be slightly different due to system-specific dependencies.

Step 1: Install System Dependencies:

  • On Ubuntu, you might need packages like python3-pip, libavdevice-dev, libavfilter-dev, libopus-dev, libvpx-dev, libsrtp2-dev, and ffmpeg.
  • On macOS, you can use Homebrew to install similar dependencies:
1brew install ffmpeg opus libvpx pkg-config
.

Step 2: Install aiortc using pip:

1pip install aiortc
This command will install aiortc along with its Python dependencies. Note that you should have Python 3.6 or newer installed on your system, as aiortc is designed to work with Python’s asynchronous features which are best supported in newer versions.

Basic Configuration

After installing aiortc, the next step is to configure a basic application that uses WebRTC to establish a peer connection. Here’s a simple example to illustrate the basic components:

Step 1: Importing Modules

Begin by importing necessary modules from aiortc. You'll need RTCPeerConnection, MediaStreamTrack, and possibly others depending on your needs.
1from aiortc import RTCPeerConnection, MediaStreamTrack

Step 2: Creating a Peer Connection

Instantiate a RTCPeerConnection object. This object manages the lifecycle of a WebRTC connection (such as handling sessions, streams, and states).
1peer_connection = RTCPeerConnection()

Step 3: Adding Media Streams

If you plan to transmit audio or video, you'll need to manage media streams. For a start, you can create dummy tracks using MediaStreamTrack. In a real application, you would handle actual audio and video tracks.
1class VideoStreamTrack(MediaStreamTrack):
2    # Your implementation here to capture video frames
3    pass
4
5video_track = VideoStreamTrack()
6peer_connection.addTrack(video_track)

Step 4: Handling Signaling

Signaling is an essential part of setting up a WebRTC connection. You will need to exchange session descriptions and candidate information between peers. This can be done over any messaging protocol like WebSocket, HTTP, etc.

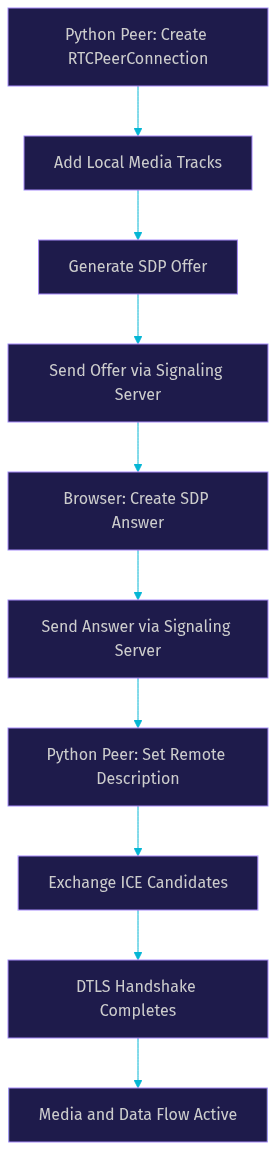

Step 5: Establishing the Connection

To establish the connection, generate an offer, set it as the local description, and then send it to the remote peer. Similarly, you will need to handle the offer at the remote peer’s end.
1async def connect():
2    offer = await peer_connection.createOffer()
3    await peer_connection.setLocalDescription(offer)
4    # Now send the offer to the remote peer

Testing the Setup

To test your setup, you might run this basic application within your local network or use publicly available STUN/TURN servers to handle connections over the internet. The setup outlined above provides a basic framework, which can be expanded with more sophisticated event handling and media manipulation based on the specific requirements of your project.
This initial setup is crucial for any Python developer looking to integrate real-time communication features into applications, providing a strong foundation for more complex implementations involving WebRTC.

Building a Basic WebRTC Application in Python

Building a basic WebRTC application involves understanding how to create peer connections, manage media streams, and handle real-time data transmission. In this section, we will develop a simple application using the aiortc library to illustrate these principles.

Step 1: Creating a Simple Peer Connection

The core of any WebRTC application is the peer connection. This connection allows for the direct communication of audio, video, and data between peers without the need for intermediary servers.
  1. Setting Up the Environment: Ensure that aiortc and its dependencies are installed as outlined in the previous sections. This setup is crucial for the successful creation and management of peer connections.
  2. Initializing a Peer Connection: A RTCPeerConnection instance is the starting point. Here’s how you can initialize this connection in your Python script:
1from aiortc import RTCPeerConnection
2
3peer_connection = RTCPeerConnection()
This object manages all aspects of the peer-to-peer connection, such as session management, stream handling, and signaling.
  1. Event Handling: Handling events like track reception and ICE candidate discovery is essential. You can define event handlers using decorators:
1@peer_connection.on("track")
2def on_track(track):
3    print("Received track:", track.kind)
4    if track.kind == "video":
5        # Handle video track
6        pass
7
8@peer_connection.on("icecandidate")
9def on_icecandidate(candidate):
10    print("New ICE candidate:", candidate)

Step 2: Handling Audio and Video Streams

Handling media streams is a critical aspect of any WebRTC application. aiortc supports both audio and video streams, which can be manipulated and transmitted over the network.
Handling media streams is a critical aspect of any WebRTC application. aiortc supports both audio and video streams, which can be manipulated and transmitted over the network.
  1. Creating Media Tracks: You can create custom tracks by subclassing MediaStreamTrack. Here’s a basic setup for a video stream track:
1from aiortc import MediaStreamTrack, VideoStreamTrack
2
3class CustomVideoTrack(MediaStreamTrack):
4    kind = "video"
5
6    async def recv(self):
7        frame = await self.next_frame()
8        # Process frame (e.g., apply filters)
9        return frame
10
11video_track = CustomVideoTrack()
12peer_connection.addTrack(video_track)
This class overrides the recv() method to receive frames, which can then be processed or manipulated according to your application’s needs.

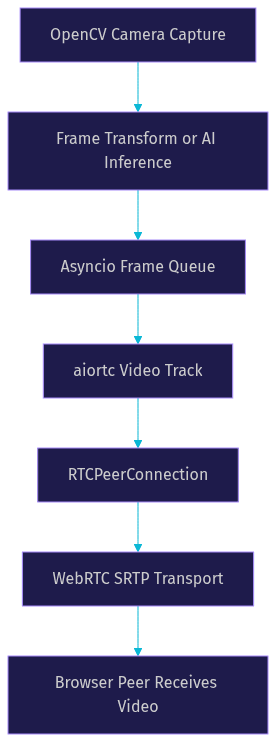

  1. Streaming Video: To stream video, you can integrate with existing media sources. For instance, you can capture video from a webcam using OpenCV and send it over a WebRTC connection:
1import cv2
2
3# Capture from the default camera
4cap = cv2.VideoCapture(0)
5
6while True:
7    ret, frame = cap.read()
8    if not ret:
9        break
10    # Convert the frame to the right format and send it
11    video_track.send(frame)
This loop continuously captures frames from the webcam and sends them through the video_track established earlier.

Step 3: Testing the Application

To test the basic functionality:
  • Run the Application: Execute your script and monitor the output. You should see logs for track reception and ICE candidates.
  • Connect from a Peer: Use a WebRTC-compatible browser or another instance of your application to connect to the host running your script.
This basic application serves as a foundation upon which more complex functionalities can be built, such as adding data channels for text messaging, handling multiple peers, or integrating with larger systems like signaling servers for broader network communication.
By following these steps, you can create a minimal but functional WebRTC application in Python, capable of transmitting real-time video and audio streams.

Integrating WebRTC with Web Frameworks

Integrating WebRTC with popular Python web frameworks like Flask or Django can enhance your application by managing sessions, users, and more sophisticated signaling mechanisms.
  1. Using Flask for WebRTC: Flask can be used to create web pages that interact with the WebRTC application, handle RESTful signaling, and manage sessions.
1from flask import Flask, request, jsonify
2
3app = Flask(__name__)
4
5@app.route('/api/offer', methods=['POST'])
6def receive_offer():
7    offer = request.json['offer']
8    print("Received offer:", offer)
9    # Process offer and generate answer
10    return jsonify(answer="Here is the answer")
11
12if __name__ == '__main__':
13    app.run(debug=True, port=5000)
This Flask application provides an API endpoint to receive and process offers.
  1. Real-Time Communication Logic:
    • Enhance the application logic to handle real-time scenarios such as multiple simultaneous connections, dynamic peer discovery, and more.
    • Integrate database systems to keep track of users and sessions, enhancing the signaling process for a more robust application.

Building Scalable WebRTC Applications

As your application grows, you may need to scale your signaling to handle more simultaneous connections or integrate with larger, distributed systems. This might involve using more sophisticated server technologies or cloud services that can manage large-scale WebSocket connections and offer additional services like STUN/TURN for better connectivity.

Testing and Debugging

Finally, testing and debugging are critical phases in developing WebRTC applications. Tools like Wireshark can be used to analyze WebRTC traffic and debug low-level issues, while Python’s extensive logging and testing frameworks can help ensure your application behaves as expected under different scenarios.

Build a Full-fledged WebRTC Application with WebRTC & React

Building on the basic and advanced features of WebRTC with Python discussed earlier, this section will guide you through developing a full-fledged video chat application using Python and React. This section illustrates a practical implementation, integrating both backend and frontend components.

Video Chat Application

This application will allow users to join a video chat room where they can communicate with audio and video. The backend will be handled by Python using the aiortc library, and the frontend will be developed with React.

Backend Setup (Python)

  1. Creating the Server:
    • Use Flask as the web framework to manage WebSocket connections for signaling.
    • Set up route handlers to manage WebRTC offers, answers, and ICE candidates.
1from flask import Flask, request, jsonify
2from flask_sockets import Sockets
3
4app = Flask(__name__)
5sockets = Sockets(app)
6
7@sockets.route('/websocket')
8def echo_socket(ws):
9    while not ws.closed:
10        message = ws.receive()
11        ws.send(message)  # Echo the websocket message back to the client
12
13if __name__ == "__main__":
14    app.run()
This simple WebSocket handler echoes messages back to the client, which can be expanded to handle WebRTC signaling.
  1. Integrating aiortc:
    • Implement the logic to handle WebRTC connections, including creating offers, handling answers, and managing media streams.
1from aiortc import RTCPeerConnection, MediaStreamTrack
2
3@app.route('/offer', methods=['POST'])
4def handle_offer():
5    offer = request.json['sdp']
6    pc = RTCPeerConnection()
7    pc.setRemoteDescription(offer)
8    # Create an answer
9    answer = pc.createAnswer()
10    pc.setLocalDescription(answer)
11    return jsonify({'sdp': pc.localDescription.sdp})
This endpoint receives an SDP offer, processes it, and sends back an SDP answer.

Frontend Setup (React)

  1. Setting Up the React Application
    • Create a new React application using Create React App
    • Build components for displaying video streams.
1import React, { useRef } from 'react';
2
3function App() {
4    const localVideoRef = useRef();
5    const remoteVideoRef = useRef();
6
7    // More React code to handle video streams
8
9    return (
10        <div>
11            <video ref={localVideoRef} autoPlay playsInline />
12            <video ref={remoteVideoRef} autoPlay playsInline />
13        </div>
14    );
15}
16
17export default App;
This setup includes video elements for local and remote video streams.
  1. Handling WebRTC in React:
    • Implement the WebRTC logic to connect, send, and receive media streams.
    • Manage signaling via WebSocket to exchange SDP and ICE candidates.
1// Assuming signaling via WebSocket is set up
2const pc = new RTCPeerConnection();
3
4pc.ontrack = (event) => {
5    if (event.streams && event.streams[0]) {
6        remoteVideoRef.current.srcObject = event.streams[0];
7    }
8};
9
10// Function to start the connection
11function startConnection() {
12    navigator.mediaDevices.getUserMedia({ video: true, audio: true })
13        .then(stream => {
14            localVideoRef.current.srcObject = stream;
15            stream.getTracks().forEach(track => pc.addTrack(track, stream));
16        });
17    // Signaling code to exchange offers/answers and candidates
18}
This code snippet outlines the basic WebRTC setup for handling video streams and connecting peers.

Testing the Application

  • Local Testing: Test the application locally by running multiple instances of the frontend and connecting them through the backend.
  • Deployment: Consider deploying the application to a public server to test its functionality over the internet.
This above case provides a foundational framework for a video chat application, demonstrating the integration of React and Python in a WebRTC context. By expanding upon this framework, developers can add features such as text chat, file sharing, and more sophisticated media controls, tailoring the application to specific needs and scenarios.

Common Issues and Troubleshooting

Deploying WebRTC applications using Python involves overcoming several technical challenges, particularly as the complexities of real-time media streaming are coupled with the nuances of network environments. This section outlines common issues you might encounter and provides tips for troubleshooting them effectively.

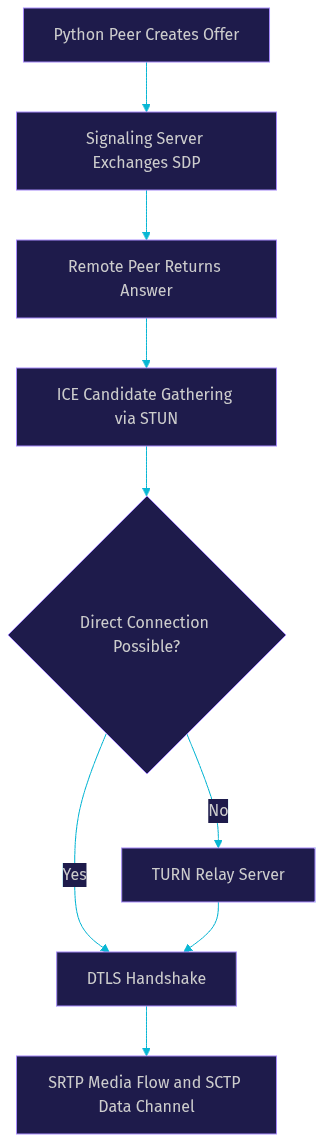

Connectivity Issues

Connectivity problems are among the most common issues in WebRTC applications. They can occur due to NAT (Network Address Translation) devices, firewall settings, or incompatible network configurations.
  • Symptoms: Peers cannot establish a connection, or the connection is intermittently lost.
  • Troubleshooting:
    • Ensure that both peers can access STUN/TURN servers. These servers facilitate the traversal of NATs and firewalls.
    • Check firewall settings to make sure that WebRTC traffic is not being blocked. Specifically, UDP traffic should be permitted.
    • Use the iceconnectionstatechange event in the RTCPeerConnection API to monitor connection states and identify failures.

Media Stream Issues

Issues with media streams can manifest as no audio/video output, poor quality streams, or delays.
  • Symptoms: Missing video/audio streams, low-quality video/audio, or high latency.
  • Troubleshooting:
    • Verify that media permissions are correctly granted in the browser.
    • Check the network conditions, as poor quality often correlates with inadequate bandwidth or high network latency.
    • Adjust the constraints passed to getUserMedia to request an appropriate resolution and bitrate that matches the capabilities of the network and devices.

Signaling Errors

Signaling is crucial for the initial negotiation between peers to establish a WebRTC connection. Errors here can prevent the session from initiating.
  • Symptoms: Connection cannot be established, or the session negotiation fails.
  • Troubleshooting:
    • Debug the signaling flow using network tools or by logging messages to ensure that offers, answers, and ICE candidates are correctly generated and transmitted.
    • Ensure that the signaling server is reachable and functioning as expected. Check server logs for errors.
    • Validate the SDP (Session Description Protocol) integrity to ensure that the offers and answers are correctly formed and exchanged.

API Misuse

Incorrect usage of the WebRTC APIs can lead to subtle bugs that are hard to trace.
  • Symptoms: Unpredictable application behavior or crashes.
  • Troubleshooting:
    • Refer to the aiortc and WebRTC API documentation to ensure that the APIs are used as intended.
    • Review the life cycle and event handling within your application to ensure that all events are managed appropriately.
    • Consider adding extensive logging around API calls to trace the flow of execution and identify misuse.

Performance Optimization

As real-time applications, WebRTC-based systems need to be optimized to handle high loads, especially in video-intensive applications.
  • Symptoms: High CPU usage, application slowing down, or device heating
  • Troubleshooting:
    • Profile the application to identify bottlenecks, particularly focusing on how media streams are handled and manipulated.
    • Optimize the server and client code. For instance, ensure that video processing tasks are efficiently using available hardware acceleration.
    • Scale your infrastructure appropriately. For server-managed components like signaling, ensure that the server can handle the expected load.
By systematically addressing these common issues, developers can enhance the stability, performance, and user experience of their WebRTC applications.

Conclusion

In conclusion, WebRTC with Python, especially through libraries like aiortc, opens up powerful opportunities for real-time communication beyond browser limitations. From basic setups to full-fledged video chat apps, Python's versatility shines, aided by its supportive community. Integration with web frameworks like React enables scalable, modern applications for multimedia sharing and live streaming. Mastering WebRTC with Python is a valuable investment for developers, promising significant returns in the digital communication landscape.

Want to level-up your learning? Subscribe now

Subscribe to our newsletter for more tech based insights

FAQ
