What is SIP session initiation protocol used for?

SIP is used to initiate, maintain, modify, and terminate real-time sessions such as voice and video calls over IP networks.

How does SIP session initiation protocol differ from H.323?

SIP is text-based, more flexible, and easier to implement, while H.323 is binary and was designed for traditional telephony integration.

What are the main components of a SIP network?

The main SIP network elements are user agents, proxy servers, registrar servers, redirect servers, and location servers.

How secure is SIP session initiation protocol?

SIP can be vulnerable to threats like interception and spoofing, but security can be improved with TLS, SRTP, authentication, and firewalls.

Can SIP work with NAT and firewalls?

SIP can encounter issues with NAT/firewalls, but solutions like STUN, TURN, and SIP-aware firewalls can help.

What protocols does SIP work with for media transfer?

SIP commonly works with SDP for session description and RTP for actual media transfer.

How do I start implementing SIP in my network?

Start by choosing SIP-compatible devices or software, configuring SIP accounts and servers, and ensuring proper network security and NAT traversal.

SIP Session Initiation Protocol: The Backbone of Modern Communication in 2025

Learn how the SIP Session Initiation Protocol forms the foundation of VoIP, unified communications, and multimedia signaling in 2025. Dive into architecture, call flows, features, security, and real-world use cases for developers and IT professionals.

SIP Session Initiation Protocol: The Backbone of Modern Communication in 2025

Introduction to SIP Session Initiation Protocol

The SIP Session Initiation Protocol (SIP) is a signaling protocol that has revolutionized the way modern IP-based communications operate. As the cornerstone of Voice over IP (VoIP), video conferencing, and unified communications, SIP enables seamless multimedia connections over the internet and private IP networks. Its flexibility, scalability, and extensibility make it a crucial technology for developers, network engineers, and IT architects designing real-time communication systems in 2025. SIP session initiation protocol empowers a variety of applications, from basic phone calls to complex collaborative environments, by standardizing how sessions are established, managed, and terminated across diverse endpoints. Understanding SIP is vital for anyone working in the fields of IP telephony, multimedia communication, or unified communications platforms.

What is SIP Session Initiation Protocol?

SIP session initiation protocol is an application-layer signaling protocol standardized by the IETF in RFC 3261. It was designed to initiate, maintain, and terminate real-time sessions that involve video, voice, messaging, and other communications. Unlike traditional telephony protocols, SIP leverages the power of IP networks, providing a flexible foundation for multimedia communication services.

The development of SIP began in the late 1990s, with the protocol gaining rapid adoption due to its simplicity and compatibility with existing internet technologies. SIP’s architecture borrows from HTTP and SMTP, making it easy to integrate with web-based applications and services. Its text-based message format is human-readable, facilitating troubleshooting and debugging for engineers.

In VoIP and multimedia environments, SIP acts as the backbone for signaling, handling user location, registration, call setup, and teardown. It works alongside other protocols such as SDP (Session Description Protocol) for media negotiation and RTP (Real-time Transport Protocol) for media transport. Today, SIP underpins a wide range of applications, from business phone systems to large-scale video conferencing platforms.

How SIP Session Initiation Protocol Works

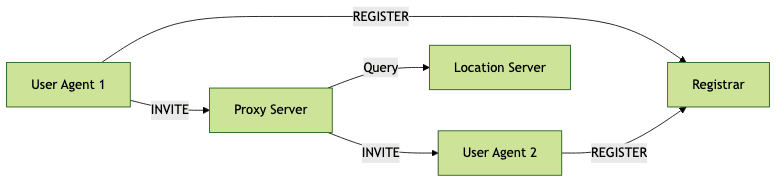

SIP Architecture and Network Elements

SIP session initiation protocol operates through a modular, distributed architecture comprising several key network elements:

User Agent (UA): Acts as both a client and a server, initiating and receiving SIP requests. UAs are typically endpoints like softphones or IP phones.
Proxy Server: Routes SIP requests to the appropriate destination, enforcing policy and providing scalability.
Registrar Server: Handles registration of UAs, mapping their SIP addresses to IP addresses.
Redirect Server: Directs clients to contact an alternate set of endpoints.
Location Server: Maintains a database of user locations and is often queried by proxies and registrars.

These elements work together to establish, manage, and terminate SIP sessions, enabling robust and scalable IP telephony solutions.

SIP Messages and Signaling

The SIP protocol uses a set of request and response messages to control communication sessions. Common SIP requests include:

INVITE: Initiates a session
ACK: Confirms session establishment
BYE: Ends a session
OPTIONS: Queries capabilities
REGISTER: Registers a UA with a registrar

SIP responses use a three-digit code structure similar to HTTP (e.g., 200 OK, 404 Not Found). SIP messages are plain text and follow a standardized format, making them easy to parse and debug.

Example SIP INVITE Message

1INVITE sip:bob@example.com SIP/2.0
2Via: SIP/2.0/UDP pc33.example.com;branch=z9hG4bK776asdhds
3Max-Forwards: 70
4To: Bob <sip:bob@example.com>
5From: Alice <sip:alice@example.com>;tag=1928301774
6Call-ID: a84b4c76e66710@pc33.example.com
7CSeq: 314159 INVITE
8Contact: <sip:alice@pc33.example.com>
9Content-Type: application/sdp
10Content-Length: 142
11
12v=0
13o=alice 2890844526 2890844526 IN IP4 pc33.example.com
14s=-
15c=IN IP4 pc33.example.com
16t=0 0
17m=audio 49170 RTP/AVP 0
18

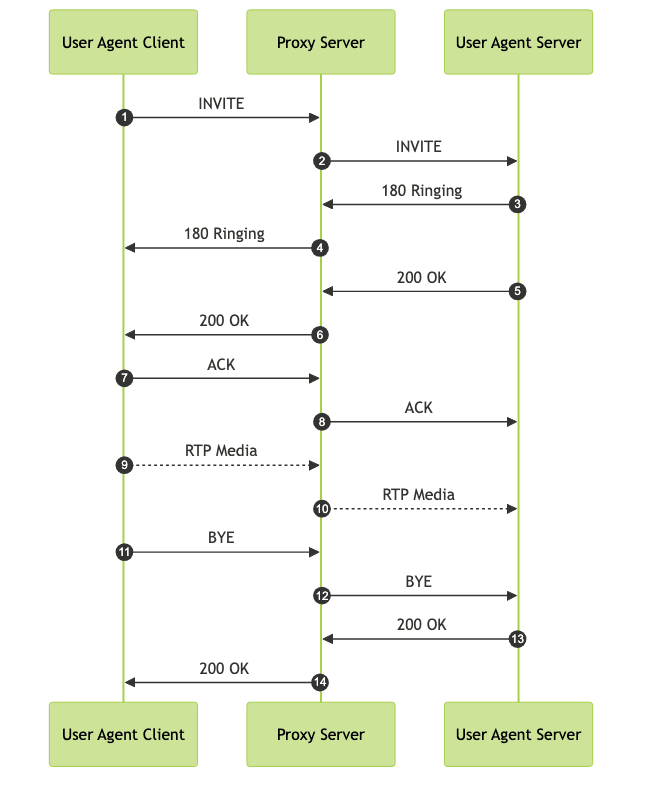

SIP Call Flow: Step-by-Step Example

A typical SIP call flow involves several stages, from session initiation to termination. Here’s how the signaling process works:

User Agent Client (UAC) sends an INVITE to initiate a session.
The Proxy Server forwards the INVITE to the destination.
The User Agent Server (UAS) responds with a 180 Ringing and then a 200 OK.
The UAC sends an ACK to confirm the session.
When finished, either party sends a BYE to terminate the call.

Full SIP Call Flow Code Example

1INVITE sip:bob@example.com SIP/2.0
2...
3SIP/2.0 180 Ringing
4...
5SIP/2.0 200 OK
6...
7ACK sip:bob@example.com SIP/2.0
8...
9<media exchange via RTP>
10BYE sip:bob@example.com SIP/2.0
11...
12SIP/2.0 200 OK
13

Key Features and Capabilities of SIP Session Initiation Protocol

SIP session initiation protocol is renowned for its rich feature set and extensibility:

Call Management: Supports advanced telephony features like call hold, transfer, and multiparty conferencing.
Feature Negotiation: SIP allows endpoints to negotiate supported capabilities using SDP, ensuring compatibility.
Media Negotiation: While SIP handles signaling, it works with SDP and RTP for specifying and transporting media streams.
Scalability and Flexibility: SIP’s stateless proxy architecture and modular network elements enable easy scaling from small businesses to carrier-grade deployments.

These characteristics make SIP the protocol of choice for modern unified communications, IP telephony, and multimedia systems.

SIP in Real-World Applications

SIP session initiation protocol forms the foundation of numerous communication technologies:

VoIP: SIP enables cost-effective, scalable IP-based voice solutions for businesses and service providers.
Video Conferencing: SIP supports high-definition video and screen sharing, powering modern collaboration platforms.
Instant Messaging & Presence: SIP for Instant Messaging and Presence Leveraging Extensions (SIMPLE) extends SIP’s capabilities to real-time messaging.
Unified Communications: SIP integrates voice, video, chat, and presence into a single, cohesive user experience.
SIP Trunking: Businesses use SIP trunks to connect on-premises PBXs to the public switched telephone network (PSTN), reducing costs and increasing flexibility.
Contact Centers: SIP enables advanced call routing, IVR, and analytics, serving as the backbone for modern contact center technologies.

Implementing SIP Session Initiation Protocol

SIP Setup and Configuration

Setting up SIP session initiation protocol in your environment typically involves:

Configuring SIP endpoints (phones, softclients) with user credentials.
Registering devices with a SIP registrar.
Setting up SIP proxy and/or SBC for call routing and security.
Specifying supported codecs and NAT/firewall traversal settings.

SIP Configuration Sample

1[sip_general]
2context=default
3disallow=all
4allow=ulaw,alaw,gsm
5bindport=5060
6bindaddr=0.0.0.0
7
8[sip_user]
9type=friend
10username=alice
11secret=supersecret
12host=dynamic
13context=users
14

Security Considerations for SIP

SIP, like any internet-based protocol, faces multiple security threats:

Spoofing and Impersonation: Attackers can forge SIP identities.
Eavesdropping: Unencrypted SIP or RTP can be intercepted.
Denial of Service (DoS): SIP infrastructure can be targeted by DoS attacks.

Best Practices:

Deploy TLS for SIP signaling and SRTP for media encryption
Use strong authentication (e.g., SIP Digest)
Regularly update and patch SIP software
Deploy SBCs and firewalls tailored for SIP traffic

SIP Session Initiation Protocol vs. Other Protocols

SIP is often compared with other multimedia signaling protocols:

H.323: An older ITU-T protocol for multimedia; more complex and less flexible than SIP.
MGCP (Media Gateway Control Protocol): Used primarily for controlling media gateways; less feature-rich than SIP.
WebRTC: A modern protocol for browser-based real-time communication; often uses SIP for signaling but provides its own media stack.

Strengths of SIP:

Human-readable, extensible, and widely adopted
Integration with web and mobile apps

Weaknesses:

Sensitive to NAT/firewall issues
Requires robust security measures

Troubleshooting Common SIP Issues

SIP session initiation protocol deployments can encounter several issues, especially related to NAT and firewalls:

NAT/Firewall Traversal: SIP signaling and RTP media may not traverse NAT/firewalls without proper configuration (e.g., STUN, TURN, ICE).
Debugging Tools: Use tools like Wireshark, sngrep, and SIPp for packet capture and call flow analysis. Reviewing SIP logs and message traces is essential for diagnosing issues.

Conclusion: The Future of SIP Session Initiation Protocol

In 2025, SIP session initiation protocol remains at the forefront of real-time communications technology. Its adaptability to cloud architectures, integration with WebRTC, and ongoing enhancements in security and scalability ensure its continued relevance. As unified communications and multimedia collaboration continue to evolve, SIP’s role as the backbone of modern IP-based communication is more vital than ever.
