Multiple RTMP refers to the practice of taking a single live video ingest feed and delivering it to several destination platforms simultaneously. VideoSDK's Interactive Live Streaming supports RTMP output, letting developers broadcast to YouTube, Twitch, and custom endpoints from one room session. The right architecture depends on your latency budget, bandwidth, and whether you self-host a relay or use a managed streaming layer.
Introduction
A developer building a live streaming product faces a common request early on: "We need to stream to YouTube, Twitch, and our own website at the same time." The instinct is to spin up three encoders or push three separate RTMP feeds from the source machine. That works for a single stream on a powerful desktop, but it falls apart when you scale to concurrent events, mobile sources, or cloud-based production pipelines.
The real challenge is efficient replication. You have one video feed and N destinations. Sending N independent copies from the origin wastes upstream bandwidth and overloads the encoder. A better approach is to send one stream to a relay point, which then fans out copies to each platform. This is the core idea behind multiple RTMP.
This article walks through the concepts, architecture options, server software choices, and best practices for building a robust multiple-RTMP workflow. Whether you self-host an RTMP relay or use a managed service like VideoSDK's Interactive Live Streaming, you will understand the tradeoffs and how to choose the right path for your use case.
What Is Multiple RTMP?
Multiple RTMP is defined as the process of receiving a single RTMP ingest feed and distributing copies of that feed to multiple destination endpoints simultaneously. Each destination has its own stream key and server URL, but the source content is identical across all outputs.
RTMP (Real-Time Messaging Protocol) was originally designed by Macromedia (later Adobe) for Flash-based communication. Despite Flash's deprecation, RTMP remains the dominant ingest protocol for live streaming because of its low latency, widespread encoder support, and simplicity. Platforms like YouTube Live, Twitch, Facebook Live, and custom RTMP endpoints all accept RTMP ingest.
There is an important distinction between true multiplexing and relay-based replication. True multiplexing would send a single network flow that all destinations subscribe to, similar to multicast. This is rarely practical over the public internet because most platforms do not support multicast ingestion. Relay-based replication, which is what the industry actually uses, involves a central server that receives one RTMP stream and creates independent unicast copies for each destination. The relay handles the fan-out so the source encoder only needs to push one feed.
Key terms you will encounter include RTMP ingest (the incoming feed from the encoder), RTMP relay (the server that replicates the stream), stream key (the unique identifier each platform assigns to authenticate an incoming stream), and destination list (the set of RTMP URLs and keys the relay pushes to).
VideoSDK provides multi-destination streaming through its Interactive Live Streaming mode, which supports RTMP output to external platforms. This means a developer can build a streaming application where a host publishes once, and VideoSDK handles the fan-out to YouTube, Twitch, or any RTMP-compatible endpoint.
Core Architecture Options
When you need to broadcast to multiple platforms, three architectural patterns dominate. Each has distinct tradeoffs in latency, resource consumption, and operational complexity.
Option 1: RTMP Relay Server
A central server receives one RTMP feed from the source encoder and pushes independent copies to each destination platform. The relay server handles all upstream bandwidth to the destinations, so the source encoder only needs enough bandwidth to send one stream to the relay. This is the most common self-hosted approach for multiple RTMP.
The relay can be a dedicated server running nginx with the RTMP module, NodeMediaServer, or a custom media server. The relay does not need to transcode unless the destinations require different codec settings or bitrates. If all platforms accept the same codec and resolution, the relay simply copies the stream data to each destination, keeping CPU usage low.

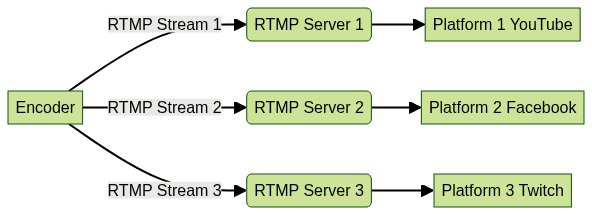

Option 2: Multi-Destination Push from Encoder
Some encoders (OBS Studio, vMix, Wirecast) support pushing to multiple RTMP destinations directly. The encoder sends N independent copies of the stream, one to each platform. This eliminates the need for a relay server, but it multiplies the upstream bandwidth requirement by the number of destinations.
This approach works for single-stream setups on machines with sufficient upload bandwidth. It does not scale well for cloud-based production, multi-tenant streaming platforms, or scenarios where the source is a mobile device on a constrained connection.
Option 3: Cloud-Based Multi-Destination Services
Managed services handle the relay infrastructure for you. The source encoder pushes one stream to the service, and the service fans it out to all configured destinations. VideoSDK's Interactive Live Streaming falls into this category, as does Restream, StreamYard, and similar platforms.
The advantage is operational simplicity. No server maintenance, no bandwidth provisioning, no reconnection logic to implement. The tradeoff is cost (per-minute or per-hour pricing) and potentially less control over the relay configuration.

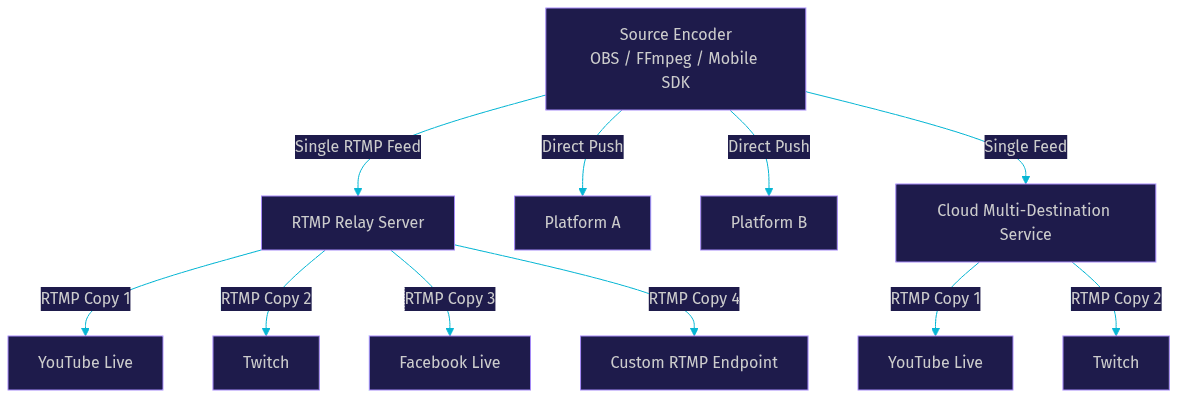

The diagram above shows all three patterns. The relay server path (left) centralizes fan-out on infrastructure you control. The direct push path (right top) sends independent copies from the encoder. The cloud service path (right bottom) offloads fan-out to a managed provider.
Setting Up an RTMP Relay Server
Building your own RTMP relay server gives you full control over the streaming pipeline. The core components are straightforward: an RTMP-capable server, optional transcoding via FFmpeg, and a configuration that defines your ingestion point and destination list.
Component Overview
The RTMP server software (such as nginx with the RTMP module or NodeMediaServer) listens on a designated port for incoming RTMP connections. The source encoder pushes a single stream to this port using a publish URL and stream key. Once the server receives the ingest feed, it creates internal stream instances for each configured destination.
Each destination is defined by an RTMP URL and a stream key provided by the target platform. The server maintains a persistent connection to each destination and continuously forwards the incoming stream data. If a destination connection drops, the relay server attempts reconnection based on its configured retry policy.
Ingestion and Fan-Out Flow
The ingestion point is a single RTMP application endpoint on your server. The source encoder connects to this endpoint and begins publishing. The server then spawns parallel output processes, one per destination. Each output process maintains its own TCP connection to the target platform's RTMP ingest server.
Reconnection handling is critical. Network interruptions between the relay and a destination platform are common. A well-configured relay server will buffer incoming data during a brief disconnection, attempt to re-establish the connection, and resume forwarding without dropping the source feed. If reconnection fails after a configured timeout, the server should log the failure and continue serving the remaining destinations.
Resource Considerations
If all destinations accept the same codec, resolution, and bitrate, the relay performs stream copying without transcoding. This keeps CPU usage minimal, typically requiring only network I/O capacity. A single modern CPU core can handle relay-only fan-out for 5 to 10 destinations on a 1080p stream.
If transcoding is required (for example, one platform needs H.264 while another only accepts H.265, or different bitrates are needed), CPU requirements increase significantly. Each transcoding path consumes roughly one CPU core per 1080p output. Plan your server sizing accordingly.
Network bandwidth is the primary constraint. Calculate your upstream bandwidth requirement as the stream bitrate multiplied by the number of destinations. A 6 Mbps 1080p stream sent to 4 destinations requires 24 Mbps of sustained upstream bandwidth, plus overhead. Always provision 20 to 30 percent headroom above the calculated requirement.

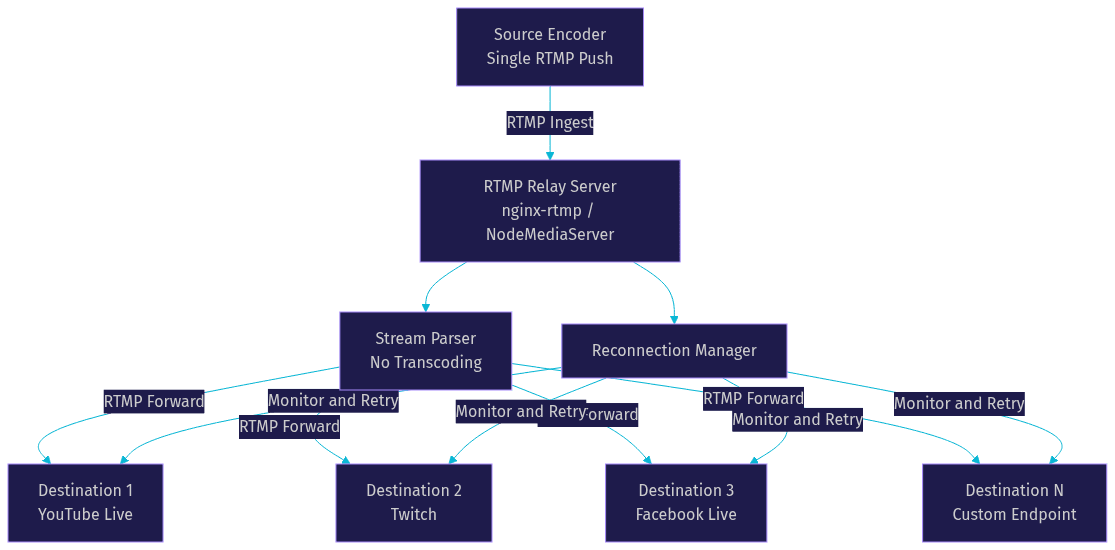

This diagram illustrates the end-to-end flow. The source encoder pushes one feed to the relay. The relay parses the stream and forwards copies to each destination. A reconnection manager monitors each destination connection and handles retry logic independently.
Choosing the Right Server Software
Selecting the right RTMP server software depends on your feature requirements, deployment environment, and comfort level with configuration. Here is a practical comparison of the most popular open-source options.
nginx with RTMP Module
The nginx-rtmp-module is the most widely deployed open-source RTMP server. It runs as an extension of the nginx web server, which means you get RTMP ingestion, HTTP-based HLS output, and standard web serving in one package. The module supports live streaming, recording to FLV, and multi-destination forwarding through its configuration syntax.
Community support is strong, with extensive documentation and tutorials available. The module's GitHub repository remains a reference point, though the original maintainer has reduced involvement. Several forks exist with additional features.
Best for: developers who want a lightweight, proven relay with HLS output and are comfortable with nginx configuration.
NodeMediaServer
NodeMediaServer is a Node.js-based media server that supports RTMP, HLS, and HTTP-FLV protocols. It offers a built-in REST API for stream management, which makes it attractive for developers building programmatic streaming pipelines. The server supports multi-destination forwarding, authentication, and recording.
Best for: JavaScript and Node.js developers who want API-driven stream management without dealing with nginx configuration files.
Media Server Frameworks (GStreamer, FFmpeg Pipelines)
For maximum flexibility, some developers build custom relay pipelines using GStreamer or FFmpeg. These tools can ingest RTMP, process the stream through arbitrary filter chains, and output to multiple RTMP destinations. This approach offers the most control but requires significant multimedia engineering expertise.
Best for: teams with deep multimedia experience who need custom processing (mixing, overlays, codec conversion) alongside multi-destination forwarding.
Feature Checklist
When evaluating server software for multiple RTMP, look for these capabilities:
- Multi-destination push (forwarding one ingest to N endpoints)
- HLS or DASH output for web playback
- Recording to disk for archival
- Authentication (token-based or password-based ingest protection)
- Monitoring endpoints (stats, active streams, connection health)
- Automatic reconnection with configurable retry policies
- RTMPS support (RTMP over TLS) for platforms that require encrypted ingest
VideoSDK's REST APIs provide a managed alternative to self-hosted relay configuration, letting you create rooms, manage participants, and control RTMP output programmatically without maintaining server infrastructure.
Best Practices for Reliable Multi-Platform Streaming
A working multiple-RTMP setup is not the same as a reliable one. Production streaming requires attention to security, monitoring, bandwidth, latency, and failure handling.
Stream Key Management and Security
Each destination platform provides a stream key that authenticates your RTMP connection. Treat stream keys like passwords. Store them in environment variables or a secrets manager, never in version control or client-side code.
Enable authentication on your relay server's ingest endpoint. Without it, anyone who discovers your server URL can publish streams to your destinations. Most RTMP server software supports token-based or password-based publish authentication.
Use RTMPS (RTMP over TLS) wherever the destination platform supports it. YouTube and Twitch both support RTMPS ingest, which encrypts the stream in transit and protects against interception. According to the IETF TLS 1.3 specification (RFC 8446), TLS 1.3 provides forward secrecy and reduced handshake latency compared to earlier versions, making it the preferred choice for encrypted RTMP connections.
Monitoring Stream Health
Implement monitoring at three levels. First, monitor the ingest connection between the source encoder and your relay server. If this connection drops, all destinations go dark. Second, monitor each destination connection independently. A single destination failure should not affect others. Third, monitor server resources (CPU, memory, network I/O) to catch capacity issues before they cause stream degradation.
Most RTMP server software exposes stats endpoints that report active connections, bitrate, and uptime. Set up watchdog timers that alert you when a stream's bitrate drops below a threshold or when a destination connection has been in a reconnecting state for more than 30 seconds.
Bandwidth Budgeting
Calculate your upstream bandwidth requirement precisely. For a relay server, the formula is simple: stream bitrate multiplied by the number of destinations, plus 20 percent overhead for protocol and TCP overhead.
For example, a 1080p stream at 6 Mbps sent to 4 destinations requires 24 Mbps plus overhead, totaling approximately 29 Mbps of sustained upstream bandwidth. If your server has a 100 Mbps uplink, you can handle roughly 3 concurrent streams at this configuration before hitting capacity.
For direct encoder push (no relay), the same formula applies but the bandwidth requirement falls on the encoder's machine. A mobile device on a 4G connection will struggle to push even two copies of a 1080p stream reliably.
Reducing Latency
The biggest latency contributor in a multiple-RTMP pipeline is unnecessary transcoding. If all destinations accept the same codec and bitrate, configure your relay to copy codecs directly without re-encoding. This eliminates the decode-encode cycle, which can add 2 to 5 seconds of latency per transcode pass.
Another latency source is the relay server's buffer size. Larger buffers improve stability on unstable connections but increase end-to-end latency. Tune the buffer to the smallest value that maintains stable playback for your typical network conditions.
Handling Failures
Design for failure at every layer. If a destination platform rejects your stream (invalid key, server maintenance, rate limiting), the relay should log the error, retry a configurable number of times, and then mark that destination as failed without affecting other destinations.
For critical broadcasts, consider a secondary CDN or backup RTMP endpoint. Some platforms support primary and backup ingest URLs. Configure your relay to failover to the backup URL if the primary is unreachable.
VideoSDK's Interactive Live Streaming handles many of these concerns automatically, including reconnection logic and recording for archival, reducing the operational burden on your team.
Common Pitfalls and How to Avoid Them
Even with a solid architecture, several common issues can degrade your multiple-RTMP workflow.
Audio and Video Sync Issues
When a relay server transcodes streams separately for different destinations, the audio and video paths can drift out of sync. This happens because audio and video are processed through separate filter chains, and slight timing differences accumulate. To avoid this, use stream copying (no transcoding) whenever possible. If transcoding is unavoidable, ensure your server software processes audio and video in a synchronized pipeline rather than independent paths.
Overloading a Single RTMP Port
Running all ingest and egress traffic through a single port can create bottlenecks under high concurrency. Network Address Translation (NAT) and firewall rules may also limit concurrent connections on a single port. Distribute ingest and egress across multiple ports or use a load balancer in front of your relay servers to distribute connections.
Inconsistent Stream Key Formats
Different platforms use different stream key formats and URL structures. YouTube uses a combination of a server URL and a stream key. Twitch uses a server URL with the stream key appended. Facebook Live uses a persistent or one-time stream key. Hardcoding these formats leads to brittle configurations. Build a destination configuration system that normalizes the URL and key format for each platform, making it easy to add or remove destinations without modifying the relay server's core configuration.
Ignoring RTMPS
Many platforms now require or strongly prefer RTMPS for ingest. If your relay server only supports plain RTMP, you may encounter connection failures or security warnings on platforms that enforce encrypted ingest. Ensure your server software supports TLS termination for outbound RTMP connections, or use a reverse proxy that handles TLS wrapping.
Future Trends: RTMP and RTP Convergence
The streaming ecosystem is evolving beyond RTMP. Several RFCs address multi-stream delivery in RTP sessions. RFC 8108 defines how multiple RTP streams can be grouped within a single session, enabling more efficient multi-destination delivery at the protocol level. RFC 8860 addresses the negotiation of media attributes in RTP sessions, which affects how multi-platform streaming pipelines negotiate codec and format parameters.
Emerging protocols are also reshaping the landscape. SRT (Secure Reliable Transport) offers improved packet recovery and lower latency over unreliable networks compared to RTMP. WebRTC, which VideoSDK's video calling SDK is built on, provides sub-second latency for interactive streaming scenarios where RTMP's 2 to 5 second delay is unacceptable.
For multi-destination broadcasting, the trend is toward hybrid architectures: WebRTC or SRT for the ingest path (low latency, reliable delivery) and RTMP for the egress path (universal platform compatibility). VideoSDK's Interactive Live Streaming already implements this pattern, using WebRTC for the host-to-server connection and RTMP output for platform delivery.
Definitions Glossary
RTMP Ingest: The process of receiving a live video feed from an encoder at an RTMP server endpoint, typically using a publish URL and stream key for authentication.
RTMP Relay: A server that receives one RTMP ingest feed and forwards independent copies to multiple destination endpoints, handling fan-out so the source encoder only pushes one stream.
Stream Key: A unique alphanumeric identifier assigned by a streaming platform to authenticate an incoming RTMP connection, functionally equivalent to a password for that specific stream.
RTMPS: RTMP encapsulated in a TLS connection, providing encrypted transport between the encoder or relay and the destination platform's ingest server.
Interactive Live Streaming (ILS): VideoSDK's low-latency streaming mode where a host publishes media to a room and viewers can watch or be promoted to active participants, with RTMP output for simultaneous multi-platform broadcasting.
Key Takeaways
- Multiple RTMP architecture centers on three patterns: relay server fan-out, direct encoder push, and cloud-based multi-destination services, each with distinct bandwidth and operational tradeoffs.
- A self-hosted RTMP relay reduces source bandwidth to a single feed but requires careful server sizing, especially when transcoding is involved.
- Stream copying without transcoding is the single most effective way to minimize latency and CPU usage in a multiple-RTMP pipeline.
- Stream keys must be treated as secrets, and RTMPS should be used wherever platforms support encrypted ingest.
- VideoSDK's Interactive Live Streaming provides a managed alternative to self-hosted relays, handling fan-out, reconnection, and recording while using WebRTC for low-latency ingest and RTMP for platform delivery.
Conclusion
Building a multiple-RTMP workflow comes down to choosing the right architecture for your scale, latency budget, and operational capacity. A self-hosted relay server gives you maximum control and is cost-effective for predictable workloads. Direct encoder push works for simple single-source setups. Cloud-based services like VideoSDK's Interactive Live Streaming eliminate infrastructure management and handle the hard parts: reconnection, recording, and multi-platform fan-out.
Start by evaluating your upstream bandwidth, selecting an open-source relay or a managed service, and testing with a single source before scaling to concurrent streams. The VideoSDK documentation and code samples provide everything you need to get a streaming room running with RTMP output in minutes. You can sign up for a free account at app.videosdk.live/login and start building today.
What are you building with VideoSDK? Drop a comment below, I would love to hear what kind of multi-platform streaming use case you are working on.
