What is WebRTC Video Chat? A Comprehensive Guide
Introduction to WebRTC Video Chat
WebRTC (Web Real-Time Communication) is a free, open-source project that provides web browsers and mobile applications with real-time communication (RTC) capabilities via simple APIs. It allows for audio and video communication without the need for plugins or downloads, directly within the browser.
How WebRTC Video Chat Works

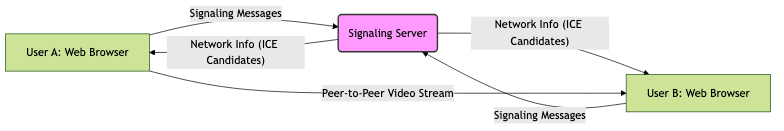

WebRTC video chat facilitates peer-to-peer communication, meaning data flows directly between users, minimizing latency and maximizing efficiency. However, establishing this direct connection requires a signaling server to coordinate the initial handshake. This server handles session management, user discovery, and the exchange of network information. This information includes ICE candidates, which are potential pathways for connecting peers. To traverse network address translators (NATs) and firewalls, WebRTC often relies on STUN/TURN servers. STUN servers discover the public IP address of a client, while TURN servers act as relays when a direct peer-to-peer connection is impossible.
Advantages of WebRTC Video Chat
WebRTC offers several advantages, including its open-source nature, lack of required plugins, direct peer-to-peer communication reducing latency, browser compatibility, and strong security features like built-in encryption. This makes it a compelling choice for real-time video communication.
Building a Simple WebRTC Video Chat Application
This section provides a basic guide to building a simple WebRTC video chat application.
Setting up the Development Environment
First, you'll need to choose a suitable JavaScript framework or library. While plain JavaScript is perfectly viable, frameworks like React, Vue, or Angular can streamline development. For this example, we'll assume basic JavaScript. You'll also need a signaling server. Node.js with Socket.IO is a popular choice, but alternatives like Firebase Realtime Database can also work. The signaling server facilitates the exchange of SDP (Session Description Protocol) offers and ICE candidates between peers.
HTML
1<!DOCTYPE html>
2<html>
3<head>
4 <title>WebRTC Video Chat</title>
5</head>
6<body>
7 <h1>WebRTC Video Chat</h1>
8 <video id="localVideo" autoplay muted></video>
9 <video id="remoteVideo" autoplay></video>
10 <button id="startButton">Start Call</button>
11 <script src="script.js"></script>
12</body>
13</html>
14Establishing the Peer Connection
The core of WebRTC is the
RTCPeerConnection object. This object handles the peer-to-peer connection, including negotiating media streams and exchanging data. To start, you'll need to create an RTCPeerConnection instance and add your local media stream (webcam and microphone).Javascript
1const localVideo = document.getElementById('localVideo');
2const remoteVideo = document.getElementById('remoteVideo');
3const startButton = document.getElementById('startButton');
4
5let localStream;
6let peerConnection;
7
8startButton.addEventListener('click', startCall);
9
10async function startCall() {
11 try {
12 localStream = await navigator.mediaDevices.getUserMedia({ video: true, audio: true });
13 localVideo.srcObject = localStream;
14
15 peerConnection = new RTCPeerConnection();
16
17 localStream.getTracks().forEach(track => {
18 peerConnection.addTrack(track, localStream);
19 });
20
21 peerConnection.ontrack = event => {
22 remoteVideo.srcObject = event.streams[0];
23 };
24
25 } catch (error) {
26 console.error('Error accessing media devices:', error);
27 }
28}
29Handling Signaling
The signaling process involves the exchange of SDP offers and answers, along with ICE candidates. The SDP (Session Description Protocol) describes the media capabilities of each peer. One peer creates an offer, which is then sent to the other peer. The receiving peer creates an answer, which is sent back to the original peer. ICE candidate exchange allows peers to find the best route for communication, navigating NATs and firewalls with the help of STUN/TURN servers. The signaling server facilitates this exchange by relaying messages between the peers.
Javascript
1// Example using a hypothetical signaling server (replace with your actual implementation)
2
3// Sending an offer
4async function createOffer() {
5 const offer = await peerConnection.createOffer();
6 await peerConnection.setLocalDescription(offer);
7 // Send the offer to the remote peer via the signaling server
8 signalingServer.send('offer', offer);
9}
10
11// Receiving an offer
12signalingServer.on('offer', async (offer) => {
13 await peerConnection.setRemoteDescription(offer);
14 const answer = await peerConnection.createAnswer();
15 await peerConnection.setLocalDescription(answer);
16 // Send the answer back to the remote peer via the signaling server
17 signalingServer.send('answer', answer);
18});
19
20// Handling ICE candidates
21peerConnection.onicecandidate = event => {
22 if (event.candidate) {
23 // Send the ICE candidate to the remote peer via the signaling server
24 signalingServer.send('iceCandidate', event.candidate);
25 }
26};
27
28// Receiving ICE candidates
29signalingServer.on('iceCandidate', async (candidate) => {
30 await peerConnection.addIceCandidate(candidate);
31});
32Displaying the Video Stream
Once the peer connection is established and media streams are flowing, you need to display the video streams in HTML video elements. This is done by setting the
srcObject property of the video elements to the media streams.Javascript
1// Assuming the 'remoteVideo' element is defined elsewhere
2peerConnection.ontrack = event => {
3 remoteVideo.srcObject = event.streams[0];
4};
5
6//Assuming the localVideo element is already pointing to the correct dom element
7navigator.mediaDevices.getUserMedia({ video: true, audio: true })
8.then(stream => {
9 localVideo.srcObject = stream;
10});
11Advanced WebRTC Video Chat Techniques
Handling Multiple Users
Multi-peer connections can be managed in several ways. One common approach is using a Selective Forwarding Unit (SFU). An SFU receives streams from multiple participants and forwards only the relevant streams to each participant, reducing the bandwidth requirements for each client. For example, in a group call, each user only receives the streams of the active speakers. Another approach is using a Mesh architecture, where each client connects to every other client. This can be simpler to implement for small groups but doesn't scale well.
Javascript
1// Example using a simplified SFU concept (Conceptual)
2// Each client sends their stream to the SFU
3// SFU forwards only relevant streams to each client
4
5// Client-side (simplified)
6const peerConnections = {}; // Store peer connections to other users
7
8function connectToUser(userId) {
9 const peerConnection = new RTCPeerConnection();
10 // ... setup peer connection, add local stream, handle ICE candidates ...
11 peerConnections[userId] = peerConnection;
12}
13
14//SFU-side (simplified) - Node.js example with Socket.IO
15io.on('connection', socket => {
16 socket.on('stream', streamData => {
17 //Determine which users should receive this stream (e.g., based on active speaker)
18 const recipients = determineRecipients(socket.id);
19 recipients.forEach(recipientSocketId => {
20 io.to(recipientSocketId).emit('stream', streamData); //Forward the stream data
21 });
22 });
23});
24Scalability considerations are vital when handling multiple users. The chosen architecture (SFU, Mesh, MCU) greatly impacts scalability. Bandwidth management and server infrastructure are also crucial. For large-scale applications, cloud-based solutions and distributed servers are often necessary.
Optimizing Performance
Bandwidth management is crucial for ensuring smooth video chat experiences, especially for users with limited bandwidth. Techniques include adaptive bitrate streaming, where the video quality is automatically adjusted based on the available bandwidth. SVC (Scalable Video Coding) is another method. You can adjust the encoding settings in your application to prioritize frame rate or resolution based on network conditions.
Latency reduction is essential for real-time communication. Strategies include optimizing network configurations, minimizing processing delays, and using efficient video codecs. Techniques like using WebSockets instead of HTTP polling for signaling can also reduce latency.
Adaptive bitrate streaming involves dynamically adjusting the video quality based on the user's network conditions. This can be implemented using libraries or custom algorithms. For example, you can use JavaScript to estimate the round-trip time (RTT) and adjust the video bitrate accordingly.
Enhancing User Experience
Screen sharing allows users to share their screen with other participants. This can be implemented using the
getDisplayMedia API. This API prompts the user to select a screen or window to share.Text chat integration provides a way for users to communicate via text during the video call. This can be implemented using a separate WebSocket connection or by utilizing WebRTC's data channel API.
Recording capabilities allow users to record the video chat session. This can be achieved by capturing the media streams and encoding them into a video file. Libraries can help with encoding. Implementations often involve capturing the raw media streams and processing them using a media recorder API. The data channel can be used to signal recording start/stop across users in the chat.
Security Considerations in WebRTC Video Chat
Data Encryption
WebRTC mandates SRTP (Secure Real-time Transport Protocol) for encrypting media streams. This ensures that the audio and video data is protected during transmission. DTLS (Datagram Transport Layer Security) is used for encrypting the signaling channel, protecting the exchange of SDP offers and ICE candidates. These built-in security features are a major advantage of WebRTC.
Preventing Attacks
Input sanitization is important to prevent cross-site scripting (XSS) attacks. All data received from the signaling server should be properly sanitized before being displayed to the user. Carefully validate and escape any user-provided data.
Access control should be implemented on the signaling server to prevent unauthorized users from joining the video chat. Implement authentication and authorization mechanisms to control access to the video chat application. Validate user credentials before allowing them to participate in calls.
Choosing Secure Servers
Ensure that your signaling server uses HTTPS to protect the communication between the client and the server. This prevents eavesdropping and man-in-the-middle attacks. Use strong TLS configurations.
WebRTC Video Chat: The Future of Real-time Communication
Emerging Trends
Integration with other technologies like AI and AR/VR is opening new possibilities for WebRTC. AI can be used for features like background noise cancellation, automatic transcription, and facial recognition. AR/VR can enhance video chat experiences with immersive environments and interactive elements.
Enhanced security features are continuously being developed to address emerging threats. This includes improvements to DTLS and SRTP protocols, as well as new techniques for preventing denial-of-service attacks. Work is being done on end-to-end encryption and decentralized signaling.
Improved performance and scalability are essential for meeting the growing demands of real-time communication. Ongoing research and development are focused on optimizing bandwidth usage, reducing latency, and improving the efficiency of WebRTC implementations.
Use Cases
Healthcare: Telemedicine leverages WebRTC for remote consultations, diagnosis, and monitoring. WebRTC enables secure and reliable video communication between doctors and patients.
Education: Online learning platforms use WebRTC for virtual classrooms, tutoring sessions, and collaborative projects. WebRTC facilitates interactive and engaging learning experiences.
Business: WebRTC powers video conferencing, remote collaboration tools, and customer support applications. WebRTC helps businesses improve communication and productivity.
Conclusion
WebRTC video chat is a powerful technology that is transforming the way we communicate in real-time. Its open-source nature, browser compatibility, and built-in security features make it a compelling choice for a wide range of applications. By understanding the fundamentals of WebRTC and implementing security best practices, developers can create innovative and engaging real-time communication experiences.
