Peer-to-Peer Video Streaming: Architecture, Advantages & Implementation

A comprehensive guide to peer-to-peer (P2P) video streaming, covering its architecture, advantages, disadvantages, implementation, and future trends.

Introduction: Understanding Peer-to-Peer Video Streaming

Peer-to-peer (P2P) video streaming is a distributed content delivery method that allows users to share video data directly with each other, reducing reliance on centralized servers. Unlike traditional client-server models or content delivery networks (CDNs), P2P networks leverage the bandwidth and computing resources of participating users to distribute video content. This approach offers several potential benefits, including reduced server load, improved scalability, and cost savings. This blog post will delve into the intricacies of peer to peer video streaming, exploring its advantages, disadvantages, architectures, protocols, and real-world applications. We will also compare it with traditional CDN approaches and discuss future trends in the field. Whether you are a seasoned developer or just starting to explore the world of video streaming, this guide will provide you with a comprehensive understanding of p2p video streaming technology.

What is Peer-to-Peer Video Streaming?

Peer-to-peer video streaming is a method of distributing video content where each user's device acts as both a client and a server. Instead of downloading the entire video from a central server, users receive parts of the video from other users who already have those parts. This collaborative approach can significantly reduce the load on the origin server and improve overall streaming performance.

The Evolution of Peer-to-Peer Video Streaming

The concept of peer-to-peer video streaming has evolved significantly over the years. Early P2P file-sharing networks like Napster and Gnutella paved the way for distributed content delivery. Technologies like BitTorrent demonstrated the efficiency of P2P for large file transfers, inspiring the development of P2P streaming solutions. Modern p2p video streaming systems leverage advanced protocols like WebRTC, HLS, and DASH to deliver high-quality video with low latency. The rise of live streaming and video-on-demand (VOD) platforms has further fueled the demand for scalable and cost-effective P2P streaming solutions.

Key Technologies Enabling P2P Video Streaming

Several key technologies underpin modern peer-to-peer video streaming. WebRTC enables real-time communication and data transfer directly between browsers, facilitating peer-to-peer live streaming. HTTP Live Streaming (HLS) and Dynamic Adaptive Streaming over HTTP (DASH) are adaptive bitrate streaming protocols that allow for efficient delivery of video content over HTTP. WebTorrent, a browser-based BitTorrent client, enables P2P file sharing within web browsers. These technologies, combined with sophisticated algorithms for peer discovery and content distribution, make p2p streaming architecture robust and scalable.

Get 10,000 Free Minutes Every Months

No credit card required to start.

Advantages of Peer-to-Peer Video Streaming

Peer-to-peer video streaming offers several compelling advantages over traditional content delivery methods. These benefits include reduced server load, improved scalability, enhanced user experience, and decentralization. These advantages make p2p video streaming solutions attractive for a wide range of applications.

Reduced Server Load and Bandwidth Costs

One of the primary advantages of peer-to-peer video streaming is the reduction in server load and bandwidth costs. By distributing the video content among the users, the burden on the central server is significantly reduced. This can translate into substantial cost savings, especially for high-traffic streaming platforms. Instead of serving every user individually, the server only needs to provide the initial content and coordinate the peer network. This makes p2p streaming bandwidth usage more efficient.

Improved Scalability and Resilience

P2p video streaming inherently provides improved scalability and resilience. As the number of users increases, the network's capacity to deliver video content also increases. This is because each new user contributes their bandwidth to the network, making it more robust and able to handle higher traffic volumes. Additionally, the decentralized nature of P2P networks makes them more resilient to outages. If one peer goes offline, other peers can still provide the necessary video data.

Enhanced User Experience

In some scenarios, peer-to-peer video streaming can enhance the user experience. By leveraging the proximity of peers, P2P networks can potentially reduce latency and improve video quality. Users may receive video data from nearby peers with faster connections, resulting in smoother playback and fewer buffering issues. Also, p2p streaming solutions with intelligent peer selection algorithms can optimize the user experience based on network conditions and peer capabilities.

Decentralization and Security

Peer-to-peer video streaming promotes decentralization by distributing the content across multiple users. This can make the network more resistant to censorship and single points of failure. However, it also introduces some p2p video streaming security concerns. Securing P2P networks requires careful consideration of peer authentication, content integrity, and privacy protection. Techniques like cryptographic hashing and digital signatures can be used to verify the authenticity and integrity of video content.

Disadvantages of Peer-to-Peer Video Streaming

While peer-to-peer video streaming offers numerous advantages, it also has some drawbacks that need to be carefully considered. These include potential network congestion, security and privacy concerns, peer availability issues, and challenges in content management.

Network Congestion and Latency

One of the primary concerns with p2p video streaming is the potential for network congestion and increased latency. When many users are simultaneously sharing video data, it can strain network resources and lead to slower streaming speeds for some users. This is especially true if users have limited upload bandwidth or are located in areas with poor network infrastructure. Efficient peer selection and traffic management algorithms are crucial for mitigating these issues and minimizing p2p streaming latency.

Security and Privacy Concerns

P2p video streaming introduces several security and privacy concerns. Since users are sharing video data with each other, there is a risk of malicious peers injecting malware or distributing illegal content. Additionally, users' IP addresses and viewing habits may be exposed to other peers in the network, raising privacy concerns. Implementing robust security measures, such as peer authentication, content encryption, and anonymization techniques, is essential for protecting users and ensuring the integrity of the p2p video streaming network.

Peer Availability and Reliability

The performance of a p2p video streaming network depends on the availability and reliability of its peers. If a significant number of peers go offline or have poor network connections, it can negatively impact the streaming experience for other users. Ensuring a sufficient number of active and reliable peers is crucial for maintaining the quality and stability of the network. Incentive mechanisms and reputation systems can be used to encourage users to share their bandwidth and remain active in the network.

Content Management and Control

Managing and controlling content in a p2p video streaming network can be challenging. Unlike traditional CDNs, where content is stored on centralized servers, P2P networks distribute content across multiple users. This makes it difficult to enforce copyright restrictions, prevent the distribution of illegal content, and ensure content integrity. Watermarking, digital signatures, and other content protection technologies can be used to address these challenges, but they often come with trade-offs in terms of performance and complexity.

Architectures and Protocols for P2P Video Streaming

Architectures and Protocols for P2P Video Streaming
Different architectures and protocols are used in peer-to-peer video streaming to optimize performance, scalability, and reliability. The architecture defines how peers connect and exchange data, while the protocols dictate the rules and formats for communication. Here, we'll look into common ones such as mesh networks, tree-based networks, and hybrid architectures, and then discuss protocols like HLS and DASH that are commonly employed.

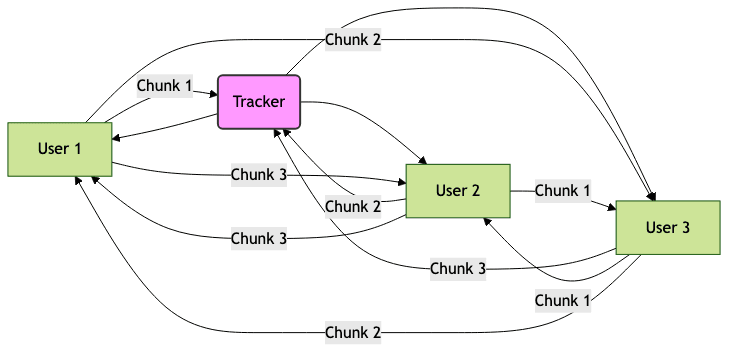

Mesh Networks

In a mesh network, each peer connects to multiple other peers, forming a decentralized and highly interconnected network. This architecture provides high redundancy and resilience, as data can be routed through multiple paths. However, mesh networks can also be complex to manage and may suffer from increased overhead due to redundant connections.

Python: Simple Peer Connection (Illustrative)

1import socket
2
3# Create a socket object
4s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
5
6# Define the port on which you want to connect
7port = 12345
8
9# connect to the server on local computer
10s.connect(('127.0.0.1', port))
11
12# receive data from the server
13print (s.recv(1024).decode())
14
15# close the connection
16s.close()
17

Tree-Based Networks

In a tree-based network, peers are organized in a hierarchical structure, with a root node distributing content to its children, who then distribute it to their children, and so on. This architecture is simpler to manage than mesh networks and can provide efficient content distribution. However, tree-based networks are more vulnerable to failures, as the failure of a parent node can disrupt the entire subtree.

JavaScript: Illustrative Data Routing in a Tree

1function distributeData(node, data) {
2  if (!node) return;
3  node.data = data;
4  for (let child of node.children) {
5    distributeData(child, data);
6  }
7}
8
9// Example usage
10const root = {
11  data: null,
12  children: [{
13    data: null,
14    children: []
15  }, {
16    data: null,
17    children: []
18  }]
19};
20
21distributeData(root, "Video Chunk");
22console.log(root);
23

Hybrid Architectures

Hybrid architectures combine elements of both mesh and tree-based networks to leverage their respective advantages. For example, a hybrid network might use a tree-based structure for initial content distribution and then switch to a mesh network for peer-to-peer sharing among users. This approach can provide both efficient content distribution and high resilience.

Common Streaming Protocols (HLS, DASH)

Several streaming protocols are commonly used in peer-to-peer video streaming, including HLS and DASH. These protocols support adaptive bitrate streaming, allowing the video quality to be adjusted based on the user's network conditions. They also provide features like content encryption and DRM to protect against unauthorized access.

Comparison: P2P Video Streaming vs. Traditional CDN

Peer-to-peer video streaming and traditional Content Delivery Networks (CDNs) are two different approaches to delivering video content. CDNs rely on a network of geographically distributed servers to cache and deliver content to users, while P2P networks leverage the bandwidth of participating users. This section will compare these two approaches based on cost, scalability, and latency.

Cost Analysis

P2p video streaming can offer significant cost savings compared to traditional CDNs, especially for high-traffic streaming platforms. By distributing the video content among the users, P2P networks reduce the load on the origin server and the CDN infrastructure, leading to lower bandwidth costs. However, P2P networks also require investment in peer discovery, content management, and security infrastructure.

Scalability and Performance

Both p2p video streaming and CDNs can provide high scalability, but they achieve it in different ways. CDNs scale by adding more servers to their network, while P2P networks scale by leveraging the bandwidth of participating users. P2P networks can be more resilient to traffic spikes, as the network's capacity increases as the number of users increases. However, CDNs can provide more consistent performance, as they have dedicated infrastructure and quality-of-service guarantees.

Latency and Quality of Service

CDNs typically offer lower latency and better quality of service than p2p video streaming networks. CDNs have servers located closer to the users, reducing the distance that video data needs to travel. They also have sophisticated caching and traffic management algorithms to optimize performance. P2P networks can suffer from increased latency and variability due to network congestion and peer availability issues. However, P2P networks can potentially reduce latency in certain scenarios by delivering video data from nearby peers.

Real-World Applications and Case Studies

Peer-to-peer video streaming is being used in a variety of real-world applications, including live streaming events, video-on-demand (VOD) platforms, enterprise video delivery, and educational platforms. Here are some common examples.

Live Streaming Events

P2p video streaming is particularly well-suited for live streaming events, such as concerts, sports games, and conferences. The distributed nature of P2P networks allows them to handle large audiences without overloading the origin server. Several live streaming platforms are now using P2P technology to improve scalability and reduce bandwidth costs.

Video-on-Demand (VOD) Platforms

VOD platforms can also benefit from p2p video streaming. By distributing popular video content among the users, VOD platforms can reduce the load on their servers and improve the streaming experience for their subscribers. P2P can be used in conjunction with a CDN to provide a hybrid delivery solution that combines the benefits of both approaches.

Enterprise Video Delivery

Companies are increasingly using p2p video streaming to deliver video content to their employees, such as training videos, internal communications, and corporate events. P2P networks can reduce the bandwidth costs associated with delivering video content over the corporate network, especially for large organizations with distributed offices.

Educational and Training Platforms

Educational institutions and training providers are using p2p video streaming to deliver online courses and training materials to their students. P2P networks can improve the scalability and reliability of online learning platforms, especially during peak usage times.

Implementing P2P Video Streaming

Implementing peer-to-peer video streaming requires careful planning and execution. Here are some key steps to consider:

Choosing the Right Technology Stack

Selecting the right technology stack is crucial for successful p2p video streaming implementation. Consider technologies like WebRTC for real-time communication, HLS or DASH for adaptive bitrate streaming, and WebTorrent for browser-based P2P file sharing. Open source libraries and frameworks can significantly simplify the development process. Evaluate the trade-offs between different technologies based on your specific requirements and constraints.

Setting up a P2P Streaming Infrastructure

Setting up a p2p streaming infrastructure involves configuring peer discovery, content distribution, and security mechanisms. Peer discovery enables users to find and connect to other peers in the network. Content distribution algorithms determine how video data is shared among the peers. Security measures protect against malicious peers and unauthorized access to content. Cloud-based services can provide managed P2P infrastructure, simplifying deployment and management.

Optimizing Performance and Scalability

Optimizing performance and scalability is essential for delivering a high-quality p2p video streaming experience. Monitor network conditions, peer availability, and content distribution patterns to identify bottlenecks and areas for improvement. Implement adaptive bitrate streaming to adjust video quality based on user's network conditions. Use caching and content pre-fetching to reduce latency and improve responsiveness.
Peer-to-peer video streaming is a rapidly evolving field, with several emerging trends that are shaping its future. These include the integration of 5G and edge computing, the use of AI and machine learning, and the application of blockchain technology.

5G and Edge Computing

The emergence of 5G and edge computing will significantly enhance p2p video streaming. 5G networks offer higher bandwidth and lower latency, enabling faster and more reliable video delivery. Edge computing moves processing and storage closer to the users, reducing latency and improving responsiveness. These technologies will enable new use cases for P2P streaming, such as ultra-high-definition (UHD) video and augmented reality (AR) applications.

AI and Machine Learning

Artificial intelligence (AI) and machine learning (ML) are being used to optimize p2p video streaming performance. AI algorithms can predict network conditions, optimize peer selection, and improve content distribution. ML models can learn from user behavior and adapt the streaming experience to individual preferences. These technologies can enhance the efficiency, reliability, and personalization of P2P networks.

Blockchain Technology

Blockchain technology can be used to enhance the security and transparency of p2p video streaming. Blockchain can provide a decentralized and immutable record of content ownership and distribution, preventing piracy and unauthorized access. Smart contracts can automate content licensing and payment processes, creating new business models for P2P streaming platforms. However, it is an area under active research, and no significant real-world application is available as of now.

Conclusion: The Future of Peer-to-Peer Video Streaming

Peer-to-peer video streaming offers a compelling alternative to traditional content delivery methods, with the potential to reduce server load, improve scalability, and enhance user experience. While P2P networks also have some drawbacks, such as security concerns and content management challenges, ongoing research and development are addressing these issues. As technologies like 5G, edge computing, AI, and blockchain continue to evolve, p2p video streaming is poised to play an increasingly important role in the future of online video delivery. From live events to on-demand content, P2P networks have the potential to transform the way we consume video content.
