Server Driven UI Flutter: The Complete Guide for 2025

Introduction to Server Driven UI in Flutter

What Is Server Driven UI?

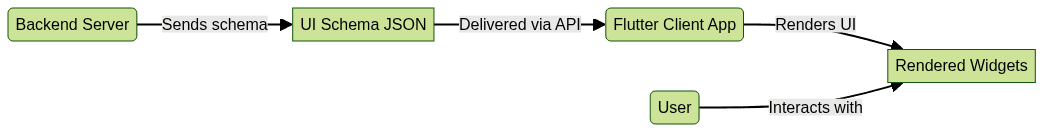

Client vs. Server Driven UI: Data Flow

Benefits of Server Driven UI in Flutter

• Dynamic Updates: Modify layouts, flows, or components instantly from the backend without redeploying the Flutter app. This is particularly beneficial when working with features such as

  flutter video and audio calling api

  , where UI changes for call screens can be rolled out seamlessly.
• Centralized Control: Maintain consistency and rapidly iterate across multiple platforms (iOS, Android, Web) from a single backend source.
• Reduced Deployment Overhead: Eliminate the need for frequent app store submissions and manual updates for minor UI changes.
• Personalization: Serve different UIs to user segments for A/B testing or feature rollouts.
• Scalability: Manage large-scale enterprise Flutter applications with a unified approach to UI delivery.

Challenges and Considerations

• Debugging Difficulty: Issues can be harder to trace, since bugs may originate from backend schemas or client rendering logic.
• Customization Limits: Advanced or highly interactive UIs may be challenging to express in generic JSON schemas.
• Performance Overheads: Parsing complex schemas and rendering dynamic widgets can impact app startup or runtime speed.
• Security Risks: Malicious or malformed schemas from the backend could compromise app stability or security. Strong validation is essential.
• Offline Handling: If the app relies heavily on the backend, poor connectivity could limit usability. Caching and fallback strategies are critical.

How Server Driven UI Works in Flutter

Sample JSON Schema

1{
2  "type": "Column",
3  "children": [
4    { "type": "Text", "props": { "text": "Welcome to Server Driven UI Flutter!" } },
5    { "type": "Button", "props": { "text": "Click Me", "action": "doSomething" } }
6  ]
7}
8

Flutter Code to Parse and Render JSON Schema

1import 'dart:convert';
2import 'package:flutter/material.dart';
3
4Widget buildWidgetFromJson(Map<String, dynamic> json) {
5  switch (json['type']) {
6    case 'Column':
7      return Column(
8        children: (json['children'] as List<dynamic>)
9            .map((child) => buildWidgetFromJson(child))
10            .toList(),
11      );
12    case 'Text':
13      return Text(json['props']['text'] ?? '');
14    case 'Button':
15      return ElevatedButton(
16        onPressed: () {
17          // Handle action
18        },
19        child: Text(json['props']['text'] ?? ''),
20      );
21    default:
22      return SizedBox.shrink();
23  }
24}
25

Popular Libraries and Tools for Server Driven UI Flutter

• Flutter Mirai

  : A flexible, production-ready library for rendering Flutter widgets from JSON schemas. Strong extensibility and community support.

• Duit Flutter

  : Inspired by Duit on Android/iOS, Duit Flutter offers a declarative, backend-driven approach to building dynamic UIs. Emphasizes simplicity and fast prototyping.

• Flutter SDUI

  : A lightweight open source solution for basic server driven UI needs. Good for experimentation and learning.

Tool Comparison Table

Step-by-Step Tutorial: Building a Server Driven UI in Flutter

Step 1: Designing the JSON Schema

1{
2  "type": "Column",
3  "children": [
4    {
5      "type": "Text",
6      "props": { "text": "Dynamic Welcome Message!" }
7    },
8    {
9      "type": "ElevatedButton",
10      "props": {
11        "text": "Get Started",
12        "action": "navigateToHome"
13      }
14    }
15  ]
16}
17

Step 2: Setting Up the Flutter Client

1import 'dart:convert';
2import 'package:flutter/material.dart';
3import 'package:http/http.dart' as http;
4
5class ServerDrivenScreen extends StatefulWidget {
6  @override
7  _ServerDrivenScreenState createState() => _ServerDrivenScreenState();
8}
9
10class _ServerDrivenScreenState extends State<ServerDrivenScreen> {
11  Map<String, dynamic>? schema;
12
13  @override
14  void initState() {
15    super.initState();
16    fetchSchema();
17  }
18
19  Future<void> fetchSchema() async {
20    final response = await http.get(Uri.parse('https://example.com/ui-schema'));
21    if (response.statusCode == 200) {
22      setState(() {
23        schema = jsonDecode(response.body);
24      });
25    }
26  }
27
28  @override
29  Widget build(BuildContext context) {
30    if (schema == null) {
31      return Center(child: CircularProgressIndicator());
32    }
33    return buildWidgetFromJson(schema!);
34  }
35}
36

Step 3: Connecting to the Backend

1const express = require("express");
2const app = express();
3
4app.get("/ui-schema", (req, res) => {
5  res.json({
6    "type": "Column",
7    "children": [
8      { "type": "Text", "props": { "text": "Dynamic Welcome Message!" } },
9      { "type": "ElevatedButton", "props": { "text": "Get Started", "action": "navigateToHome" } }
10    ]
11  });
12});
13
14app.listen(3000, () => console.log("Server started on port 3000"));
15

Step 4: Rendering Dynamic Widgets in Flutter

1Widget buildWidgetFromJson(Map<String, dynamic> json) {
2  switch (json['type']) {
3    case 'Column':
4      return Column(
5        mainAxisAlignment: MainAxisAlignment.center,
6        children: (json['children'] as List<dynamic>)
7            .map((child) => buildWidgetFromJson(child))
8            .toList(),
9      );
10    case 'Text':
11      return Text(json['props']['text'] ?? '', style: TextStyle(fontSize: 20));
12    case 'ElevatedButton':
13      return ElevatedButton(
14        onPressed: () {
15          // Implement navigation/action logic here
16        },
17        child: Text(json['props']['text'] ?? ''),
18      );
19    default:
20      return SizedBox.shrink();
21  }
22}
23

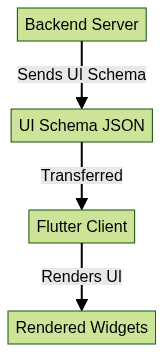

Server Driven UI Flutter Architecture Diagram

Best Practices for Server Driven UI Architecture in Flutter

• Schema Versioning: Track schema versions to handle backward compatibility as UI evolves.
• Comprehensive Error Handling: Validate JSON schemas on both server and client, and implement graceful fallbacks for malformed data.
• Extensibility: Design your widget mapping to be easily extendable for new widget types and properties.
• Security: Authenticate requests, sanitize incoming schemas, and restrict widget actions to prevent injection attacks or misuse.
• Testing: Automate schema validation and end-to-end UI rendering tests to catch issues before they reach production.

Real World Use Cases

• Enterprise Apps: Large companies update features and content instantly across their user base, reducing development and QA cycles.
• Dynamic Theming: Change app themes, layouts, or promotions in real time based on marketing campaigns or user preferences.
• A/B Testing: Experiment with UI variants by serving different schemas to user segments, collecting analytics without new releases.

Conclusion
