Introduction to SIP Voice Protocol
The Session Initiation Protocol (SIP) voice protocol is the cornerstone of modern Voice over IP (VoIP) communications. As businesses and developers increasingly rely on digital and cloud-based telephony, understanding how SIP enables, manages, and secures voice sessions is crucial. SIP voice protocol is not just a signaling protocol; it is the backbone that orchestrates call setup, management, and teardown across diverse devices and networks. Whether you are deploying a new VoIP infrastructure or troubleshooting an existing one, mastering SIP equips you to build robust, scalable, and interoperable communication systems. This guide aims for comprehensive coverage of SIP protocol, with intentional keyword integration to enhance both clarity and search relevance.
What is SIP Voice Protocol?
Definition and Purpose
SIP (Session Initiation Protocol) is a signaling protocol used to initiate, modify, and terminate real-time sessions involving video, voice, messaging, and other communications over IP networks. As a text-based protocol modeled after HTTP and SMTP, SIP enables endpoints—such as phones, soft clients, and gateways—to communicate seamlessly in a VoIP environment. Its primary purpose is to establish, manage, and terminate multimedia sessions, acting as the control plane while delegating media transmission to protocols like RTP. For developers looking to build custom audio experiences, integrating a
Voice SDK
can streamline SIP-based voice features into modern applications.History and Evolution
SIP was first standardized in RFC 2543 in 1999 and refined in RFC 3261, which remains the core reference to this day. Originally developed to address the scalability and interoperability limitations of earlier protocols like H.323, SIP quickly gained traction due to its simplicity and extensibility. Over the years, SIP has evolved to support advanced features, security mechanisms, and integration with web technologies, making it the de facto standard for VoIP and unified communications in 2024.
SIP in Modern Communications
In 2024, SIP is ubiquitous in enterprise telephony, contact centers, mobile apps, and cloud communication platforms, powering millions of voice and video calls every day. Many of these platforms leverage robust
phone call API
solutions to facilitate seamless SIP integration and enhance user experience.SIP Voice Protocol Architecture
Core Components of SIP (User Agents, Servers, Proxies)
The SIP architecture is built around several essential components:
- User Agent (UA): Acts as both a client (UAC) and server (UAS), initiating and responding to requests. SIP phones, softphones, and gateways are examples.
- SIP Server: Manages signaling, including registration and location services. Types include registrar, redirect, and proxy servers.
- Proxy Server: Routes SIP requests to the correct destination, enforces policy, and can handle authentication.
- Registrar Server: Handles user registrations, mapping SIP URIs to current network locations.
This modular design enables flexibility, scalability, and interoperability across diverse VoIP deployments. For those interested in adding video capabilities alongside SIP voice, integrating a
Video Calling API

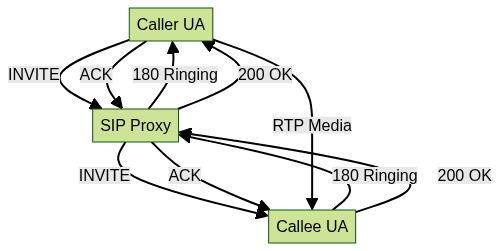

can provide a unified communications experience.How SIP Protocol Works (Call Flow Basics)
SIP operates using a request/response transaction model. When a user initiates a call, their SIP client (UA) sends an INVITE request to the destination, typically via a proxy server. The call is routed to the recipient, who responds with messages such as TRYING, RINGING, and OK. Once accepted, media negotiation occurs (generally via SDP within SIP), and the RTP stream carries the actual voice. Developers building mobile VoIP apps may benefit from a
callkit tutorial
to implement native call handling on iOS devices.
SIP Protocol in the OSI Model
SIP operates primarily at the application layer (Layer 7) of the OSI model. While it handles signaling and session management, the actual media streams (voice or video) are carried by other protocols such as RTP (Real-time Transport Protocol) at the transport layer. SIP messages are typically transported over UDP, TCP, or TLS (for secure signaling), and depend on the underlying network and transport layers for delivery. This separation of signaling and media ensures modularity, security, and scalability in VoIP architectures. For Android developers, exploring
webrtc android
can offer insights into real-time communications and SIP integration on mobile platforms.SIP Voice Protocol: Message Structure and Transactions
SIP Requests and Responses
SIP uses a set of well-defined request methods (such as INVITE, ACK, BYE, REGISTER) and corresponding responses (like 100 TRYING, 180 RINGING, 200 OK). Each SIP message includes a start line, headers, and an optional body. When building SIP-based solutions, leveraging a
Voice SDK
can simplify the process of handling these signaling messages and media sessions.SIP INVITE Request Example
1INVITE sip:bob@example.com SIP/2.0
2Via: SIP/2.0/UDP alicepc.example.com;branch=z9hG4bK776asdhds
3Max-Forwards: 70
4To: Bob <sip:bob@example.com>
5From: Alice <sip:alice@example.com>;tag=1928301774
6Call-ID: a84b4c76e66710
7CSeq: 314159 INVITE
8Contact: <sip:alice@alicepc.example.com>
9Content-Type: application/sdp
10Content-Length: 147
11
12v=0
13o=alice 2890844526 2890844526 IN IP4 alicepc.example.com
14s=-
15c=IN IP4 alicepc.example.com
16t=0 0
17m=audio 49170 RTP/AVP 0
18SIP Message Headers and Bodies
Headers in SIP messages specify routing, addressing, authentication, and feature negotiation. Common headers include Via, To, From, Call-ID, CSeq, and Contact. The message body—often formatted as SDP (Session Description Protocol)—contains media negotiation details like supported codecs, ports, and session parameters.

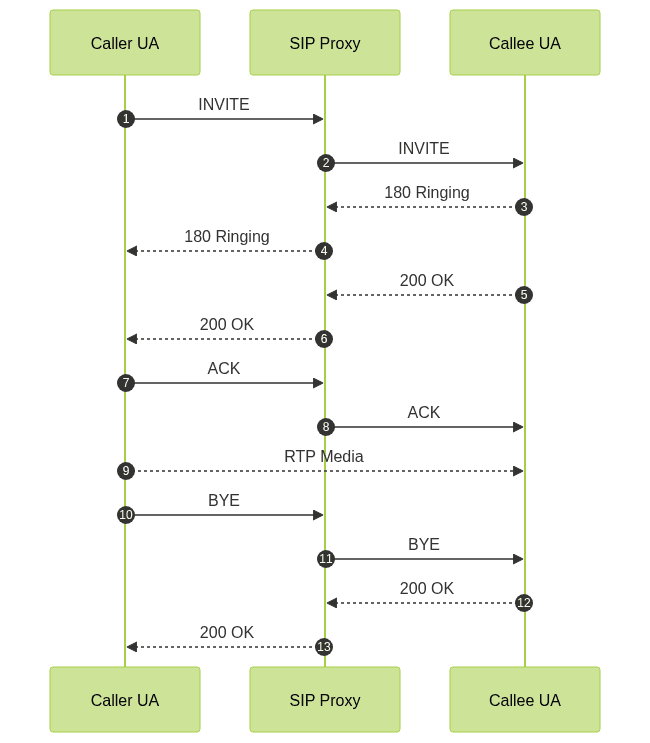

Example SIP Call Flow
A typical SIP call involves the following transaction sequence:
- INVITE (start call)
- 100 TRYING (server processing)
- 180 RINGING (callee alerted)
- 200 OK (call accepted)
- ACK (call established)
- RTP media exchange (voice)
- BYE (call terminated)
For developers seeking to add SIP-based calling to their apps, utilizing a
phone call api
can accelerate development and ensure compatibility with modern VoIP standards.SIP Call Flow Code Example
1INVITE sip:bob@example.com SIP/2.0
2...
3180 Ringing
4...
5200 OK
6...
7ACK
8...
9RTP Media Exchange
10...
11BYE
12...
13200 OK
14
Key Features and Functions of SIP Voice Protocol
Name Translation and User Location
SIP resolves human-friendly SIP URIs (like sip:alice@example.com) to network addresses, allowing users to move freely between devices or networks while maintaining a consistent identity. This flexibility is a key reason why SIP is often integrated with modern
Video Calling API
solutions for unified communications.Feature Negotiation
Through SDP embedded in SIP messages, endpoints negotiate supported codecs, encryption, and media parameters, ensuring compatibility before a session starts. If you're building VoIP apps for iOS, following a
callkit tutorial
can help you implement advanced call features and seamless user experiences.Call Management (Hold, Transfer, Conference)
SIP supports advanced call management features:
- Hold: Temporarily suspends media transmission, often using re-INVITE or UPDATE.
- Transfer: Blind or attended call transfers are handled via REFER or BYE/INVITE sequences.
- Conference: SIP can initiate multi-party calls, with a conference server mixing media streams and managing signaling.
SIP Voice Protocol in VoIP Ecosystem
SIP vs. Other Voice Protocols (H.323, RTP)
SIP and H.323 are both signaling protocols, but SIP is text-based, simpler, and more extensible. RTP, meanwhile, is not a signaling protocol but the transport for media streams negotiated via SIP. SIP's flexibility, openness, and integration with web technologies have made it the dominant choice in 2024. For developers seeking to support real-time communications on Android, resources on
webrtc android
can be invaluable for bridging SIP and WebRTC technologies.SIP Trunking and Interoperability
SIP trunking enables enterprises to connect their PBX systems directly to VoIP providers over IP, replacing traditional phone lines. Thanks to clear standards and widespread adoption, SIP offers excellent interoperability between devices, vendors, and platforms, supporting mixed deployments and gradual migrations.
Real-world Use Cases
SIP voice protocol powers cloud-based PBXs, unified communication platforms, call centers, and even embedded VoIP features in IoT devices. Its scalability and adaptability make it suitable for everything from small business telephony to global carrier networks. If you're ready to implement SIP-based solutions,
Try it for free
and explore how these technologies can transform your communications.Implementation and Configuration of SIP Voice Protocol
SIP Ports and Transport Protocols
By default, SIP uses UDP or TCP port 5060 for unencrypted signaling and 5061 for TLS-encrypted sessions. Some deployments leverage alternate ports for security or compliance. RTP media streams use dynamically negotiated UDP ports, which are communicated in the SIP/SDP message body.
Registration and Authentication
SIP clients must register with a SIP registrar to receive calls. Registration involves sending a REGISTER request with credentials. Authentication is typically handled via HTTP Digest.
SIP Registration Example
1REGISTER sip:example.com SIP/2.0
2Via: SIP/2.0/UDP alicepc.example.com;branch=z9hG4bK74bf9
3Max-Forwards: 70
4To: Alice <sip:alice@example.com>
5From: Alice <sip:alice@example.com>;tag=123456
6Call-ID: 1j9FpLxk3uxtm8tn@alicepc.example.com
7CSeq: 1 REGISTER
8Contact: <sip:alice@alicepc.example.com>
9Expires: 3600
10Content-Length: 0
11NAT Traversal and Firewall Considerations
SIP and RTP can be disrupted by NAT and firewall configurations. Techniques such as STUN, TURN, and ICE help SIP endpoints discover their public IPs and relay media when direct peer-to-peer communication is not possible. SIP-aware firewalls and SBCs (Session Border Controllers) are often deployed to manage signaling and media paths securely and reliably.
SIP Voice Protocol Security and Troubleshooting
Common Security Threats and Best Practices
SIP is susceptible to threats like registration hijacking, call interception, and DoS attacks. Best practices include enforcing TLS for signaling, SRTP for media encryption, robust authentication, and regular monitoring of SIP traffic for anomalies.
Troubleshooting SIP Issues
Common SIP problems include one-way audio, failed registrations, and call drops. Tools like SIPp, Wireshark, and SIP monitoring solutions help diagnose signaling and media path issues. Understanding SIP call flows, message exchanges, and response codes is key to effective troubleshooting in VoIP environments.
Conclusion: The Future of SIP Voice Protocol
SIP voice protocol remains foundational in VoIP and unified communications for 2024 and beyond. As networks evolve—with trends like 5G, WebRTC, and cloud-native deployments—SIP's flexibility, interoperability, and broad ecosystem support ensure it will continue powering real-time communications for years to come.
