Mastering ASR Error Handling with AI Agents

Build an AI Voice Agent for ASR error handling using VideoSDK. Follow our step-by-step guide with complete code examples.

Introduction to AI Voice Agents in ASR Errors Handling

In today's fast-paced technological landscape, AI Voice Agents have become an integral part of various industries, particularly in handling Automatic Speech Recognition (ASR) errors. But what exactly is an AI

Voice Agent

?

What is an AI

Voice Agent

?

An AI

Voice Agent

 is a software application designed to interact with users through voice commands. It processes spoken language, understands the intent, and provides responses or actions based on the input. These agents are powered by advanced algorithms and machine learning models that enable them to comprehend and respond to human speech effectively.

Why are they important for the ASR Errors Handling Industry?

In the ASR industry, errors can occur due to various factors such as accents, background noise, or ambiguous language. AI Voice Agents play a crucial role in identifying, categorizing, and suggesting corrective measures for these errors. They enhance the accuracy and reliability of ASR systems, making them indispensable tools for businesses relying on voice technology.

Core Components of a

Voice Agent

The core components of a

voice agent

 include:
  • Speech-to-Text (STT): Converts spoken language into text.
  • Large Language Model (LLM): Processes the text to understand context and intent.
  • Text-to-Speech (TTS): Converts the processed text back into spoken language.
For a comprehensive understanding, refer to the

AI voice Agent core components overview

.

What You'll Build in This Tutorial

In this tutorial, you will learn to build an AI Voice Agent specifically designed for handling ASR errors. We will use the VideoSDK framework to create a fully functional agent capable of identifying and categorizing common ASR errors, offering suggestions, and guiding users on improving ASR accuracy.

Architecture and Core Concepts

High-Level Architecture Overview

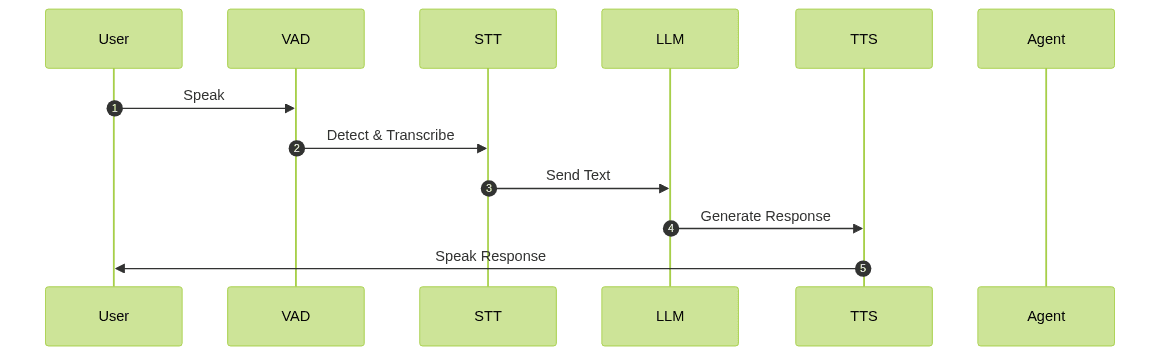

The architecture of an AI Voice Agent involves a seamless flow of data from user speech to agent response. Here's how it works:
  1. User Speech Input: The user speaks into the system.
  2. Voice

    Activity Detection

     (VAD):     Detects when the user starts and stops speaking.
  3. Speech-to-Text (STT): Transcribes the spoken words into text.
  4. Large Language Model (LLM): Analyzes the text to understand the user's intent.
  5. Text-to-Speech (TTS): Converts the response text back into speech for the user.
Diagram

Understanding Key Concepts in the VideoSDK Framework

  • Agent: The core class representing your bot. It defines the agent's behavior and responses.
  • CascadingPipeline: A structured flow of audio processing components, including STT, LLM, and TTS. Learn more about the

    cascading pipeline in AI voice Agents

    .
  • VAD & TurnDetector: Tools that help the agent know when to listen and when to respond. Explore the

    Turn detector for AI voice Agents

     for more details.

Setting Up the Development Environment

Prerequisites

Before you begin, ensure you have Python 3.11+ installed and a VideoSDK account. You can sign up at the VideoSDK website.

Step 1: Create a Virtual Environment

To avoid conflicts with other Python projects, create a virtual environment:
1python3 -m venv venv
2source venv/bin/activate  # On Windows use `venv\\Scripts\\activate`
3

Step 2: Install Required Packages

Install the necessary packages using pip:
1pip install videosdk
2

Step 3: Configure API Keys in a .env File

Create a .env file in your project directory and add your VideoSDK API keys:
1VIDEOSDK_API_KEY=your_api_key_here
2

Building the AI Voice Agent: A Step-by-Step Guide

Here is the complete code for building your AI Voice Agent. We will break it down in the following sections:
1import asyncio, os
2from videosdk.agents import Agent, AgentSession, CascadingPipeline, JobContext, RoomOptions, WorkerJob, ConversationFlow
3from videosdk.plugins.silero import SileroVAD
4from videosdk.plugins.turn_detector import TurnDetector, pre_download_model
5from videosdk.plugins.deepgram import DeepgramSTT
6from videosdk.plugins.openai import OpenAILLM
7from videosdk.plugins.elevenlabs import ElevenLabsTTS
8from typing import AsyncIterator
9
10# Pre-downloading the Turn Detector model
11pre_download_model()
12
13agent_instructions = "{\n  \"persona\": \"ASR Error Handling Specialist\",\n  \"capabilities\": [\n    \"Identify and categorize common ASR errors\",\n    \"Provide suggestions for correcting ASR errors\",\n    \"Offer guidance on improving ASR accuracy\",\n    \"Assist in configuring ASR systems for optimal performance\"\n  ],\n  \"constraints\": [\n    \"You are not a software developer and cannot provide code solutions\",\n    \"You must advise users to consult technical documentation for implementation details\",\n    \"You cannot guarantee error-free ASR performance\"\n  ]\n}"
14
15class MyVoiceAgent(Agent):
16    def __init__(self):
17        super().__init__(instructions=agent_instructions)
18    async def on_enter(self): await self.session.say("Hello! How can I help?")
19    async def on_exit(self): await self.session.say("Goodbye!")
20
21async def start_session(context: JobContext):
22    # Create agent and conversation flow
23    agent = MyVoiceAgent()
24    conversation_flow = ConversationFlow(agent)
25
26    # Create pipeline
27    pipeline = CascadingPipeline(
28        stt=DeepgramSTT(model="nova-2", language="en"),
29        llm=OpenAILLM(model="gpt-4o"),
30        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
31        vad=SileroVAD(threshold=0.35),
32        turn_detector=TurnDetector(threshold=0.8)
33    )
34
35    session = AgentSession(
36        agent=agent,
37        pipeline=pipeline,
38        conversation_flow=conversation_flow
39    )
40
41    try:
42        await context.connect()
43        await session.start()
44        # Keep the session running until manually terminated
45        await asyncio.Event().wait()
46    finally:
47        # Clean up resources when done
48        await session.close()
49        await context.shutdown()
50
51def make_context() -> JobContext:
52    room_options = RoomOptions(
53    #  room_id="YOUR_MEETING_ID",  # Set to join a pre-created room; omit to auto-create
54        name="VideoSDK Cascaded Agent",
55        playground=True
56    )
57
58    return JobContext(room_options=room_options)
59
60if __name__ == "__main__":
61    job = WorkerJob(entrypoint=start_session, jobctx=make_context)
62    job.start()
63

Step 4.1: Generating a VideoSDK Meeting ID

To create or join a meeting room, you need a meeting ID. You can generate this using a simple curl command:
1curl -X POST \
2  https://api.videosdk.live/v1/meetings \
3  -H "Authorization: Bearer YOUR_API_KEY" \
4  -H "Content-Type: application/json"
5

Step 4.2: Creating the Custom Agent Class

The MyVoiceAgent class is the heart of your voice agent. It defines how your agent interacts with users. Here's a breakdown:
1class MyVoiceAgent(Agent):
2    def __init__(self):
3        super().__init__(instructions=agent_instructions)
4    async def on_enter(self):
5        await self.session.say("Hello! How can I help?")
6    async def on_exit(self):
7        await self.session.say("Goodbye!")
8
This class inherits from the Agent class and uses predefined instructions to guide its interactions.

Step 4.3: Defining the Core Pipeline

The CascadingPipeline orchestrates the flow of data through various processing stages:
1pipeline = CascadingPipeline(
2    stt=DeepgramSTT(model="nova-2", language="en"),
3    llm=OpenAILLM(model="gpt-4o"),
4    tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
5    vad=SileroVAD(threshold=0.35),
6    turn_detector=TurnDetector(threshold=0.8)
7)
8
Each component in the pipeline plays a specific role:
  • STT (DeepgramSTT): Transcribes speech to text.
  • LLM (OpenAILLM): Processes the text to understand intent.
  • TTS (ElevenLabsTTS): Converts the response text back to speech.
  • VAD (SileroVAD): Detects when the user is speaking.
  • TurnDetector: Determines when it's the agent's turn to speak.

Step 4.4: Managing the Session and Startup Logic

The start_session function manages the lifecycle of the agent's session:
1async def start_session(context: JobContext):
2    agent = MyVoiceAgent()
3    conversation_flow = ConversationFlow(agent)
4
5    pipeline = CascadingPipeline(
6        stt=DeepgramSTT(model="nova-2", language="en"),
7        llm=OpenAILLM(model="gpt-4o"),
8        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
9        vad=SileroVAD(threshold=0.35),
10        turn_detector=TurnDetector(threshold=0.8)
11    )
12
13    session = AgentSession(
14        agent=agent,
15        pipeline=pipeline,
16        conversation_flow=conversation_flow
17    )
18
19    try:
20        await context.connect()
21        await session.start()
22        await asyncio.Event().wait()
23    finally:
24        await session.close()
25        await context.shutdown()
26
The make_context function sets up the room options:
1def make_context() -> JobContext:
2    room_options = RoomOptions(
3        name="VideoSDK Cascaded Agent",
4        playground=True
5    )
6    return JobContext(room_options=room_options)
7
Finally, the main block starts the job:
1if __name__ == "__main__":
2    job = WorkerJob(entrypoint=start_session, jobctx=make_context)
3    job.start()
4

Running and Testing the Agent

Step 5.1: Running the Python Script

Execute your script by running:
1python main.py
2

Step 5.2: Interacting with the Agent in the Playground

After starting the script, you'll see a playground URL in the console. Open this URL in your browser to interact with your agent. Speak into your microphone, and the agent will respond based on its programmed instructions.

Advanced Features and Customizations

Extending Functionality with Custom Tools

The VideoSDK framework allows you to extend your agent's functionality by integrating custom tools. This can include additional processing steps or external API calls.

Exploring Other Plugins

While this tutorial uses specific plugins, VideoSDK supports various STT, LLM, and TTS plugins. Explore options like Cartesia for STT, Google Gemini for LLM, and others to enhance your agent's capabilities.

Troubleshooting Common Issues

API Key and Authentication Errors

Ensure your API keys are correctly configured in the .env file. Double-check for any typos or missing keys.

Audio Input/Output Problems

Verify that your microphone and speakers are properly connected and configured. Check your system's audio settings.

Dependency and Version Conflicts

Ensure all dependencies are installed with compatible versions. Use a virtual environment to manage package versions effectively.

Conclusion

Summary of What You've Built

In this tutorial, you've built a fully functional AI Voice Agent capable of handling ASR errors using the VideoSDK framework. You've learned to set up the development environment, create a custom agent, define a processing pipeline, and test your agent in a playground.

Next Steps and Further Learning

To further enhance your skills, explore additional VideoSDK features and plugins. Consider integrating more complex logic or external APIs to expand your agent's functionality.
