Android Live Streaming Tutorial

1dependencyResolutionManagement{
2  repositories {
3    // ...
4    google()
5    mavenCentral()
6    maven { url "https://maven.aliyun.com/repository/jcenter" }
7  }
8}
9

1dependencies {
2  implementation 'live.videosdk:rtc-android-sdk:2.0.1'
3
4  // library to perform Network call to generate a meeting id
5  implementation 'com.amitshekhar.android:android-networking:1.0.2'
6
7  // other app dependencies
8  }
9

1<uses-permission android:name="android.permission.RECORD_AUDIO" />
2<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
3<uses-permission android:name="android.permission.INTERNET" />
4<uses-permission android:name="android.permission.CAMERA" />
5

1   app
2   ├── java
3   │    ├── packagename
4   │         ├── JoinActivity
5   │         ├── MeetingActivity
6   │         ├── SpeakerAdapter
7   │         ├── SpeakerFragment
8   |         ├── ViewerFragment
9   ├── res
10   │    ├── layout
11   │    │    ├── activity_join.xml
12   │    │    ├── activity_meeting.xml
13   |    |    ├── fragment_speaker.xml
14   |    |    ├── fragment_viewer.xml
15   │    │    ├── item_remote_peer.xml
16

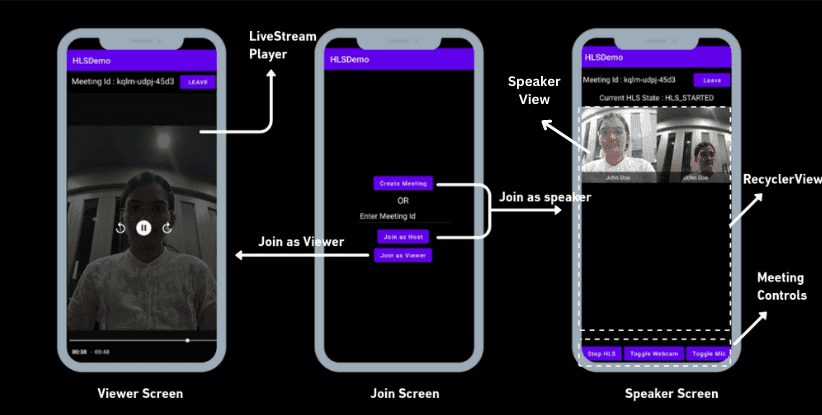

1JoinActivity
2└── MeetingActivity
3    ├── SpeakerFragment          (mode = SEND_AND_RECV)
4    │   ├── Mic / Webcam / HLS / Leave buttons
5    │   └── RecyclerView
6    │       └── SpeakerAdapter
7    │           └── PeerViewHolder × each host participant

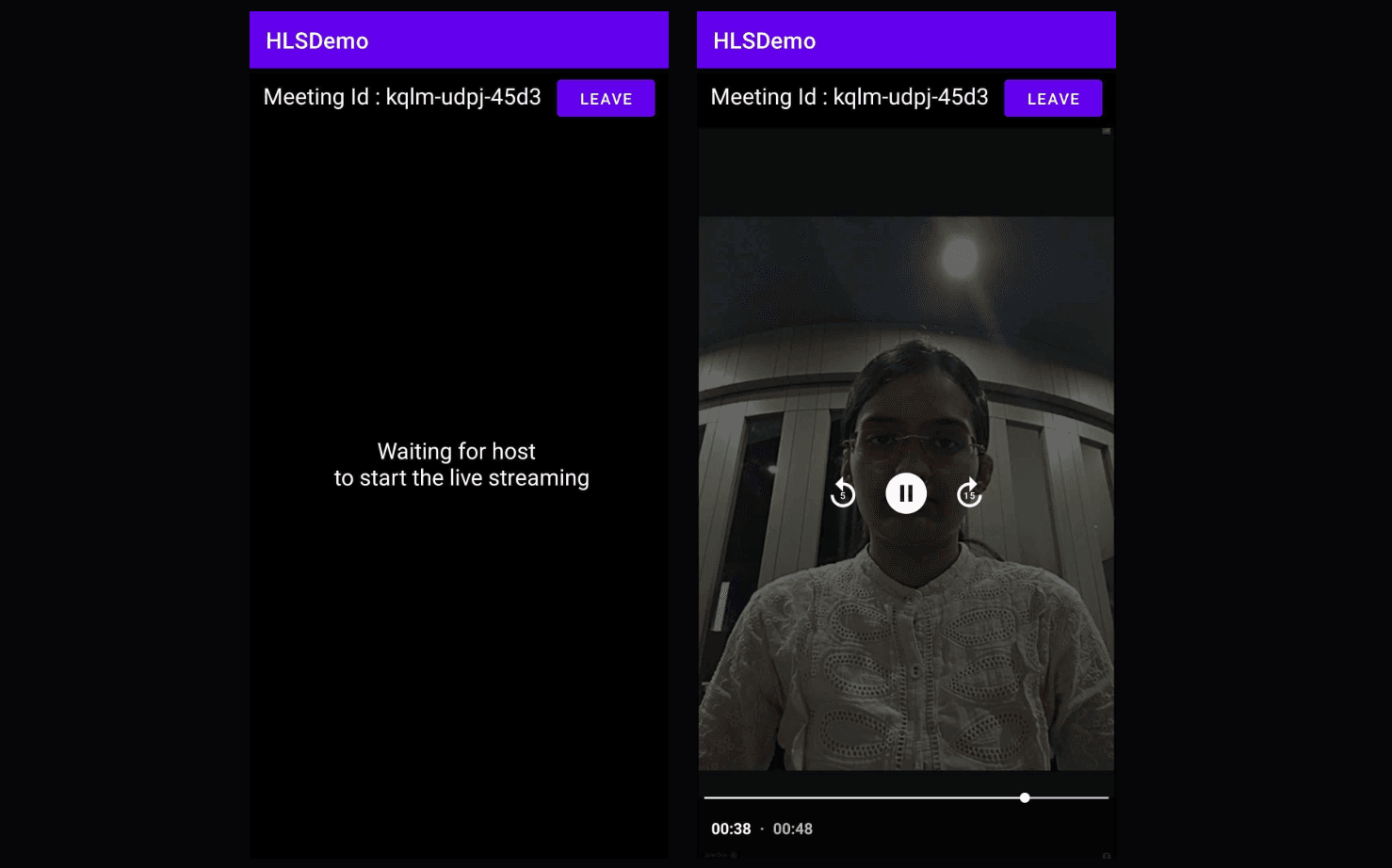

8    └── ViewerFragment           (mode = SIGNALLING_ONLY)
9        ├── waitingLayout        (shown when there is no active HLS)
10        └── StyledPlayerView     (ExoPlayer, plays the HLS stream)
11

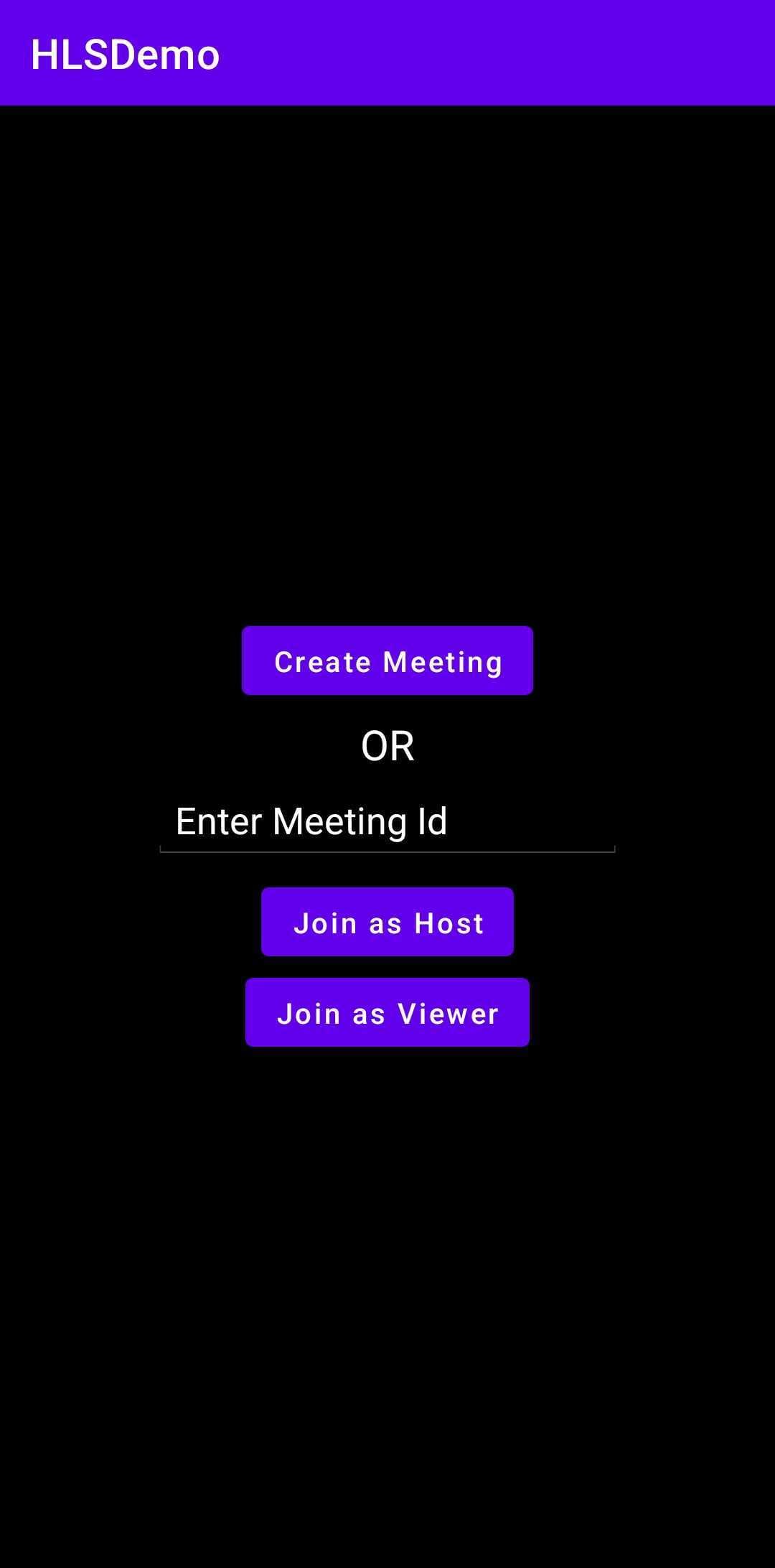

1<?xml version="1.0" encoding="utf-8"?>
2
3<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
4    android:id="@+id/createorjoinlayout"
5    android:layout_width="match_parent"
6    android:layout_height="match_parent"
7    android:background="@color/black"
8    android:gravity="center"
9    android:orientation="vertical">
10
11    <Button
12        android:id="@+id/btnCreateMeeting"
13        android:layout_width="wrap_content"
14        android:layout_height="wrap_content"
15        android:text="Create Meeting"
16        android:textAllCaps="false" />
17
18    <TextView
19        android:id="@+id/tvText"
20        android:layout_width="wrap_content"
21        android:layout_height="wrap_content"
22        android:paddingVertical="5sp"
23        android:text="OR"
24        android:textColor="@color/white"
25        android:textSize="20sp" />
26
27    <EditText
28        android:id="@+id/etMeetingId"
29        android:theme="@android:style/Theme.Holo"
30        android:layout_width="250dp"
31        android:layout_height="wrap_content"
32        android:hint="Enter Meeting Id"
33        android:textColor="@color/white"
34        android:textColorHint="@color/white" />
35
36    <Button
37        android:id="@+id/btnJoinHostMeeting"
38        android:layout_width="wrap_content"
39        android:layout_height="wrap_content"
40        android:layout_marginTop="8sp"
41        android:text="Join as Host"
42        android:textAllCaps="false" />
43
44    <Button
45        android:id="@+id/btnJoinViewerMeeting"
46        android:layout_width="wrap_content"
47        android:layout_height="wrap_content"
48        android:text="Join as Viewer"
49        android:textAllCaps="false" />
50
51</LinearLayout>
52

1class JoinActivity : AppCompatActivity() {
2
3  //Replace with the token you generated from the VideoSDK Dashboard
4  private var sampleToken = ""
5
6  override fun onCreate(savedInstanceState: Bundle?) {
7    //...
8  }
9}
10

1class JoinActivity : AppCompatActivity() {
2
3   //Replace with the token you generated from the VideoSDK Dashboard
4   private var sampleToken = "";
5
6   override fun onCreate(savedInstanceState: Bundle?) {
7      super.onCreate(savedInstanceState)
8      setContentView(R.layout.activity_join)
9
10      val btnCreate = findViewById<Button>(R.id.btnCreateMeeting)
11      val btnJoinHost = findViewById<Button>(R.id.btnJoinHostMeeting)
12      val btnJoinViewer = findViewById<Button>(R.id.btnJoinViewerMeeting)
13      val etMeetingId = findViewById<EditText>(R.id.etMeetingId)
14
15      // create meeting and join as Host
16      btnCreate.setOnClickListener {
17          createMeeting(
18              sampleToken
19          )
20      }
21
22      // Join as Host
23      btnJoinHost.setOnClickListener {
24          val intent = Intent(this@JoinActivity, MeetingActivity::class.java)
25          intent.putExtra("token", sampleToken)
26          intent.putExtra("meetingId", etMeetingId.text.toString().trim { it <= ' ' })
27          intent.putExtra("mode", "SEND_AND_RECV")
28          startActivity(intent)
29      }
30
31      // Join as Viewer
32      btnJoinViewer.setOnClickListener {
33          val intent = Intent(this@JoinActivity, MeetingActivity::class.java)
34          intent.putExtra("token", sampleToken)
35          intent.putExtra("meetingId", etMeetingId.text.toString().trim { it <= ' ' })
36          intent.putExtra("mode", "SIGNALLING_ONLY")
37          startActivity(intent)
38      }
39    }
40
41    private fun createMeeting(token: String) {
42      // we will explore this method in the next step
43    }
44}
45

1class JoinActivity : AppCompatActivity() {
2  //...onCreate
3 private fun createMeeting(token: String) {
4  // we will make an API call to VideoSDK Server to get a roomId
5  AndroidNetworking.post("https://api.videosdk.live/v2/rooms")
6      .addHeaders("Authorization", token) //we will pass the token in the Headers
7      .build()
8      .getAsJSONObject(object : JSONObjectRequestListener {
9          override fun onResponse(response: JSONObject) {
10            try {
11              // response will contain `roomId`
12              val meetingId = response.getString("roomId")
13
14              // starting the MeetingActivity with received roomId and our sampleToken
15              val intent = Intent(this@JoinActivity, MeetingActivity::class.java)
16              intent.putExtra("token", sampleToken)
17              intent.putExtra("meetingId", meetingId)
18              intent.putExtra("mode", "SEND_AND_RECV")
19              startActivity(intent)
20            } catch (e: JSONException) {
21                e.printStackTrace()
22            }
23          }
24
25          override fun onError(anError: ANError) {
26            anError.printStackTrace()
27            Toast.makeText(this@JoinActivity, anError.message, Toast.LENGTH_SHORT)
28                .show()
29          }
30      })
31  }
32}
33

1class JoinActivity : AppCompatActivity() {
2  companion object {
3    private const val PERMISSION_REQ_ID = 22
4    private val REQUESTED_PERMISSIONS = arrayOf(
5        Manifest.permission.RECORD_AUDIO,
6        Manifest.permission.CAMERA
7    )
8  }
9
10  private fun checkSelfPermission(permission: String, requestCode: Int) {
11    if (ContextCompat.checkSelfPermission(this, permission) !=
12        PackageManager.PERMISSION_GRANTED
13    ) {
14        ActivityCompat.requestPermissions(this, REQUESTED_PERMISSIONS, requestCode)
15    }
16  }
17
18  override fun onCreate(savedInstanceState: Bundle?) {
19    //... button listeners
20    checkSelfPermission(REQUESTED_PERMISSIONS[0], PERMISSION_REQ_ID)
21    checkSelfPermission(REQUESTED_PERMISSIONS[1], PERMISSION_REQ_ID)
22  }
23}
24

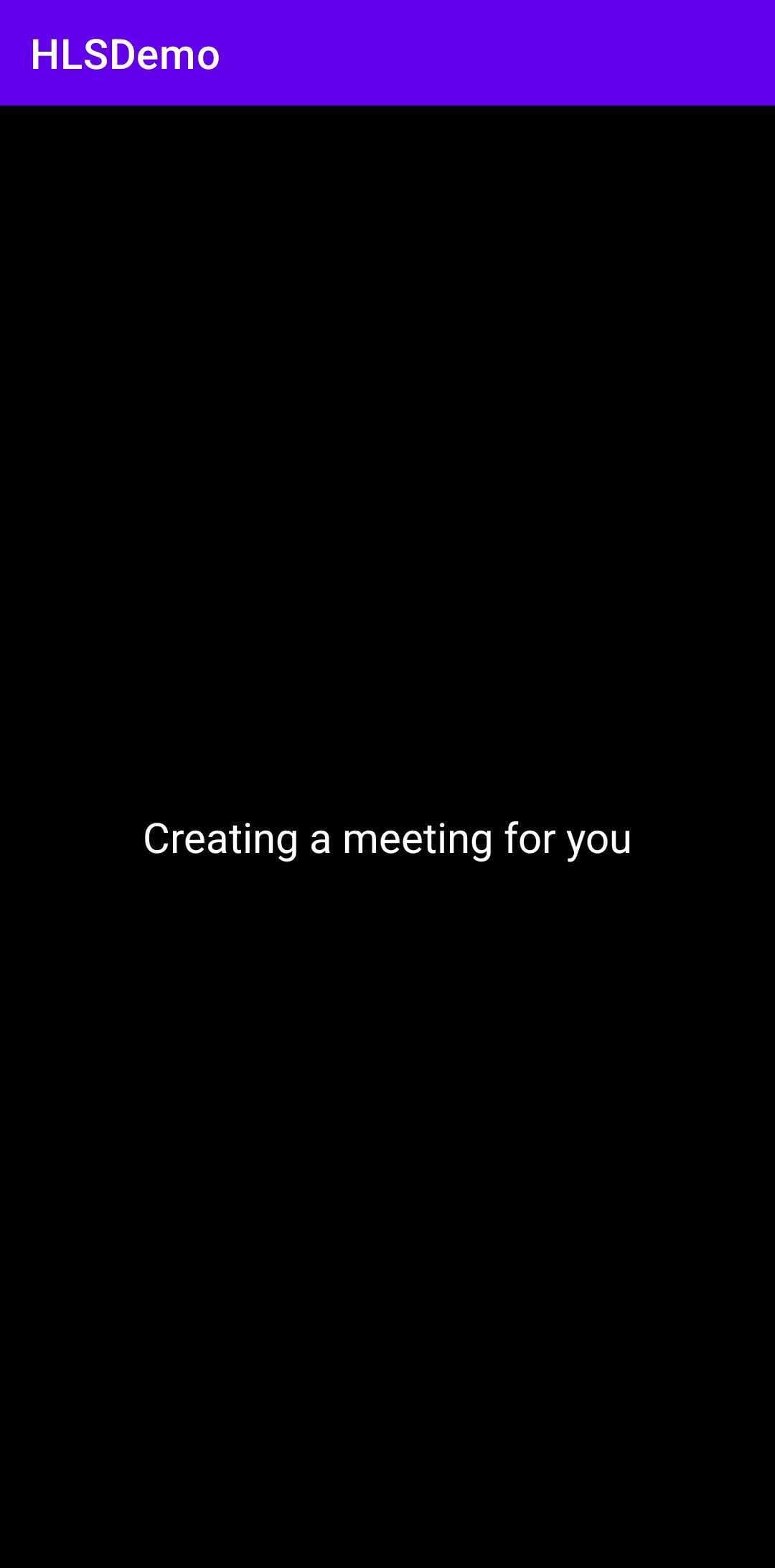

1<?xml version="1.0" encoding="utf-8"?>
2<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
3    xmlns:tools="http://schemas.android.com/tools"
4    android:id="@+id/mainLayout"
5    android:layout_width="match_parent"
6    android:layout_height="match_parent"
7    android:background="@color/black"
8    tools:context=".MeetingActivity">
9
10    <TextView
11        android:layout_width="match_parent"
12        android:layout_height="match_parent"
13        android:gravity="center"
14        android:text="Creating a meeting for you"
15        android:textColor="@color/white"
16        android:textFontWeight="700"
17        android:textSize="20sp" />
18
19</RelativeLayout>
20

1class MeetingActivity : AppCompatActivity() {
2  var meeting: Meeting? = null
3      private set
4
5  override fun onCreate(savedInstanceState: Bundle?) {
6    super.onCreate(savedInstanceState)
7    setContentView(R.layout.activity_meeting)
8
9    val meetingId = intent.getStringExtra("meetingId")
10    val token = intent.getStringExtra("token")
11    val mode = intent.getStringExtra("mode")
12    val localParticipantName = "John Doe"
13    val streamEnable = mode == "SEND_AND_RECV"
14
15    // initialize VideoSDK
16    VideoSDK.initialize(applicationContext)
17
18    // Configuration VideoSDK with Token
19    VideoSDK.config(token)
20
21    // Initialize VideoSDK Meeting
22    meeting = VideoSDK.initMeeting(
23        this@MeetingActivity, meetingId, localParticipantName,
24        streamEnable, streamEnable, null, mode, false, null, null
25    )
26
27    // join Meeting
28    meeting!!.join()
29
30    // if mode is SEND_AND_RECV than replace mainLayout with SpeakerFragment otherwise with ViewerFragment
31    meeting!!.addEventListener(object : MeetingEventListener() {
32      override fun onMeetingJoined() {
33          if (meeting != null) {
34            if (mode == "SEND_AND_RECV") {
35              //pin the local participant
36              meeting!!.localParticipant.pin("SHARE_AND_CAM")
37              supportFragmentManager
38                  .beginTransaction()
39                  .replace(R.id.mainLayout, SpeakerFragment(), "MainFragment")
40                  .commit()
41              } else if (mode == "SIGNALLING_ONLY") {
42                supportFragmentManager
43                    .beginTransaction()
44                    .replace(R.id.mainLayout, ViewerFragment(), "viewerFragment")
45                    .commit()
46              }
47          }
48      }
49    })
50  }
51}
52

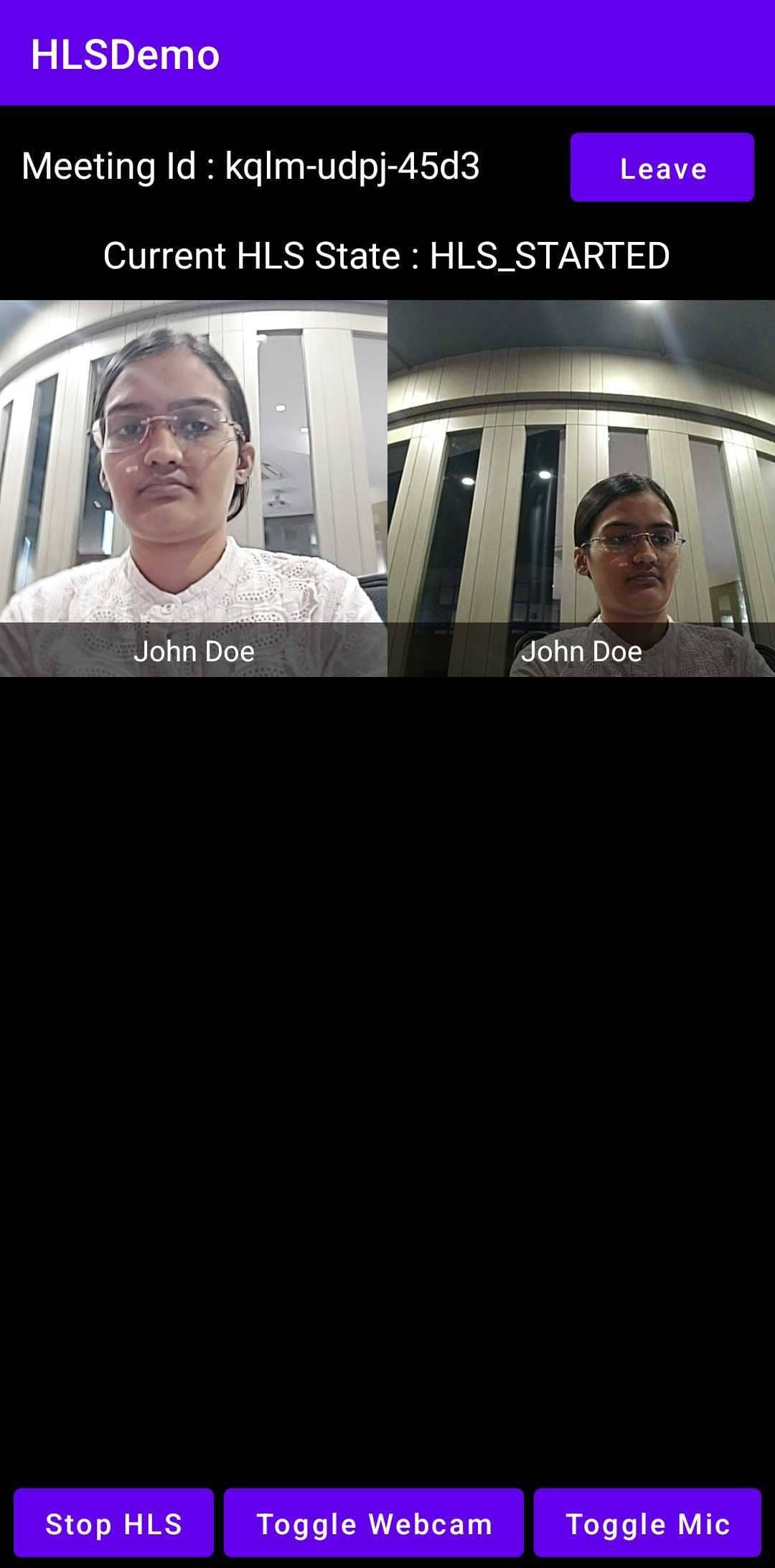

1<?xml version="1.0" encoding="utf-8"?>
2<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
3    xmlns:tools="http://schemas.android.com/tools"
4    android:layout_width="match_parent"
5    android:layout_height="match_parent"
6    android:background="@color/black"
7    android:gravity="center"
8    android:orientation="vertical"
9    tools:context=".SpeakerFragment">
10
11    <LinearLayout
12        android:layout_width="match_parent"
13        android:layout_height="wrap_content"
14        android:layout_marginVertical="8sp"
15        android:paddingHorizontal="10sp">
16
17        <TextView
18            android:id="@+id/tvMeetingId"
19            android:layout_width="0dp"
20            android:layout_height="wrap_content"
21            android:text="Meeting Id : "
22            android:textColor="@color/white"
23            android:textSize="18sp"
24            android:layout_weight="3"/>
25
26        <Button
27            android:id="@+id/btnLeave"
28            android:layout_width="0dp"
29            android:layout_height="wrap_content"
30            android:text="Leave"
31            android:textAllCaps="false"
32            android:layout_weight="1"/>
33
34    </LinearLayout>
35
36    <TextView
37        android:id="@+id/tvHlsState"
38        android:layout_width="wrap_content"
39        android:layout_height="wrap_content"
40        android:text="Current HLS State : NOT_STARTED"
41        android:textColor="@color/white"
42        android:textSize="18sp" />
43
44    <androidx.recyclerview.widget.RecyclerView
45        android:id="@+id/rvParticipants"
46        android:layout_width="match_parent"
47        android:layout_height="0dp"
48        android:layout_marginVertical="10sp"
49        android:layout_weight="1" />
50
51    <LinearLayout
52        android:layout_width="match_parent"
53        android:layout_height="wrap_content"
54        android:gravity="center">
55
56        <Button
57            android:id="@+id/btnHLS"
58            android:layout_width="wrap_content"
59            android:layout_height="wrap_content"
60            android:text="Start HLS"
61            android:textAllCaps="false" />
62
63        <Button
64            android:id="@+id/btnWebcam"
65            android:layout_width="wrap_content"
66            android:layout_height="wrap_content"
67            android:layout_marginHorizontal="5sp"
68            android:text="Toggle Webcam"
69            android:textAllCaps="false" />
70
71        <Button
72            android:id="@+id/btnMic"
73            android:layout_width="wrap_content"
74            android:layout_height="wrap_content"
75            android:text="Toggle Mic"
76            android:textAllCaps="false" />
77
78    </LinearLayout>
79
80</LinearLayout>
81

1class SpeakerFragment : Fragment() {
2  private var micEnabled = true
3  private var webcamEnabled = true
4  private var hlsEnabled = false
5  private var btnMic: Button? = null
6  private var btnWebcam: Button? = null
7  private var btnHls: Button? = null
8  private var btnLeave: Button? = null
9  private var tvMeetingId: TextView? = null
10  private var tvHlsState: TextView? = null
11  override fun onAttach(context: Context) {
12    super.onAttach(context)
13    mContext = context
14    if (context is Activity) {
15      mActivity = context
16      // getting meeting object from Meeting Activity
17      meeting = (mActivity as MeetingActivity?)!!.meeting
18    }
19  }
20
21  override fun onCreateView(
22      inflater: LayoutInflater, container: ViewGroup?,
23      savedInstanceState: Bundle?
24  ): View? {
25    // Inflate the layout for this fragment
26    val view = inflater.inflate(R.layout.fragment_speaker, container, false)
27    btnMic = view.findViewById(R.id.btnMic)
28    btnWebcam = view.findViewById(R.id.btnWebcam)
29    btnHls = view.findViewById(R.id.btnHLS)
30    btnLeave = view.findViewById(R.id.btnLeave)
31    tvMeetingId = view.findViewById(R.id.tvMeetingId)
32    tvHlsState = view.findViewById(R.id.tvHlsState)
33    if (meeting != null) {
34      tvMeetingId!!.text = "Meeting Id : " + meeting!!.meetingId
35      setActionListeners()
36    }
37    return view
38  }
39
40  private fun setActionListeners() {
41    btnMic!!.setOnClickListener {
42      if (micEnabled) {
43        meeting!!.muteMic()
44        Toast.makeText(mContext, "Mic Muted", Toast.LENGTH_SHORT).show()
45      } else {
46        meeting!!.unmuteMic()
47        Toast.makeText(
48            mContext,
49            "Mic Enabled",
50            Toast.LENGTH_SHORT
51        ).show()
52      }
53      micEnabled = !micEnabled
54    }
55    btnWebcam!!.setOnClickListener {
56      if (webcamEnabled) {
57        meeting!!.disableWebcam()
58        Toast.makeText(
59            mContext,
60            "Webcam Disabled",
61            Toast.LENGTH_SHORT
62        ).show()
63      } else {
64        meeting!!.enableWebcam()
65        Toast.makeText(
66            mContext,
67            "Webcam Enabled",
68            Toast.LENGTH_SHORT
69        ).show()
70      }
71      webcamEnabled = !webcamEnabled
72    }
73    btnLeave!!.setOnClickListener { meeting!!.leave() }
74    btnHls!!.setOnClickListener {
75      if (!hlsEnabled) {
76        val config = JSONObject()
77        val layout = JSONObject()
78        JsonUtils.jsonPut(layout, "type", "SPOTLIGHT")
79        JsonUtils.jsonPut(layout, "priority", "PIN")
80        JsonUtils.jsonPut(layout, "gridSize", 4)
81        JsonUtils.jsonPut(config, "layout", layout)
82        JsonUtils.jsonPut(config, "orientation", "portrait")
83        JsonUtils.jsonPut(config, "theme", "DARK")
84        JsonUtils.jsonPut(config, "quality", "high")
85        meeting!!.startHls(config)
86      } else {
87        meeting!!.stopHls()
88      }
89    }
90  }
91
92  companion object {
93    private var mActivity: Activity? = null
94    private var mContext: Context? = null
95    private var meeting: Meeting? = null
96  }
97}
98

1class SpeakerFragment : Fragment() {
2
3  override fun onCreateView(
4      inflater: LayoutInflater, container: ViewGroup?,
5      savedInstanceState: Bundle?
6  ): View? {
7    //...
8    if (meeting != null) {
9      //...
10      // add Listener to the meeting
11      meeting!!.addEventListener(meetingEventListener)
12    }
13    return view
14  }
15
16  private val meetingEventListener: MeetingEventListener = object : MeetingEventListener() {
17      override fun onMeetingLeft() {
18        // unpin the local participant
19        meeting!!.localParticipant.unpin("SHARE_AND_CAM")
20        if (isAdded) {
21          val intents = Intent(mContext, JoinActivity::class.java)
22          intents.addFlags(
23              Intent.FLAG_ACTIVITY_NEW_TASK
24                      or Intent.FLAG_ACTIVITY_CLEAR_TOP or Intent.FLAG_ACTIVITY_CLEAR_TASK
25          )
26          startActivity(intents)
27          mActivity!!.finish()
28        }
29      }
30
31      @RequiresApi(api = Build.VERSION_CODES.P)
32      override fun onHlsStateChanged(HlsState: JSONObject) {
33        if (HlsState.has("status")) {
34          try {
35              tvHlsState!!.text = "Current HLS State : " + HlsState.getString("status")
36              if (HlsState.getString("status") == "HLS_STARTED") {
37                hlsEnabled = true
38                btnHls!!.text = "Stop HLS"
39              }
40              if (HlsState.getString("status") == "HLS_STOPPED") {
41                hlsEnabled = false
42                btnHls!!.text = "Start HLS"
43              }
44            } catch (e: JSONException) {
45                e.printStackTrace()
46            }
47        }
48      }
49  }
50
51  override fun onDestroy() {
52      mContext = null
53      mActivity = null
54      if (meeting != null) {
55          meeting!!.removeAllListeners()
56          meeting = null
57      }
58      super.onDestroy()
59  }
60}
61

1<?xml version="1.0" encoding="utf-8"?>
2<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
3    xmlns:app="http://schemas.android.com/apk/res-auto"
4    xmlns:tools="http://schemas.android.com/tools"
5    android:layout_width="match_parent"
6    android:layout_height="200dp"
7    android:background="@color/cardview_dark_background"
8    tools:layout_height="200dp">
9
10    <live.videosdk.rtc.android.VideoView
11        android:id="@+id/participantView"
12        android:layout_width="match_parent"
13        android:layout_height="match_parent"
14        android:visibility="gone" />
15
16    <LinearLayout
17        android:layout_width="match_parent"
18        android:layout_height="wrap_content"
19        android:layout_gravity="bottom"
20        android:background="#99000000"
21        android:orientation="horizontal">
22
23        <TextView
24            android:id="@+id/tvName"
25            android:layout_width="0dp"
26            android:layout_height="wrap_content"
27            android:layout_weight="1"
28            android:gravity="center"
29            android:padding="4dp"
30            android:textColor="@color/white" />
31
32    </LinearLayout>
33
34</FrameLayout>
35

1class SpeakerAdapter(private val meeting: Meeting) :
2    RecyclerView.Adapter<SpeakerAdapter.PeerViewHolder?>() {
3    private var participantList: MutableList<Participant> = ArrayList()
4
5    init {
6      updateParticipantList()
7      // adding Meeting Event listener to get the participant join/leave event in the meeting.
8      meeting.addEventListener(object : MeetingEventListener() {
9        override fun onParticipantJoined(participant: Participant) {
10          // check participant join as Host/Speaker or not
11          if (participant.mode == "SEND_AND_RECV") {
12              // pin the participant
13              participant.pin("SHARE_AND_CAM")
14              // add participant in participantList
15              participantList.add(participant)
16          }
17          notifyDataSetChanged()
18        }
19
20        override fun onParticipantLeft(participant: Participant) {
21          var pos = -1
22          for (i in participantList.indices) {
23              if (participantList[i].id == participant.id) {
24                  pos = i
25                  break
26              }
27          }
28          if (participantList.contains(participant)) {
29              // unpin participant who left the meeting
30              participant.unpin("SHARE_AND_CAM")
31              // remove participant from participantList
32              participantList.remove(participant)
33          }
34          if (pos >= 0) {
35              notifyItemRemoved(pos)
36          }
37        }
38      })
39    }
40
41    private fun updateParticipantList() {
42      // adding the local participant(You) to the list
43      participantList.add(meeting.localParticipant)
44
45      // adding participants who join as Host/Speaker
46      val participants: Iterator<Participant> = meeting.participants.values.iterator()
47      for (i in 0 until meeting.participants.size) {
48        val participant = participants.next()
49        if (participant.mode == "SEND_AND_RECV") {
50            // pin the participant
51            participant.pin("SHARE_AND_CAM")
52            // add participant in participantList
53            participantList.add(participant)
54        }
55      }
56    }
57
58    override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): PeerViewHolder {
59      return PeerViewHolder(
60          LayoutInflater.from(parent.context).inflate(R.layout.item_remote_peer, parent, false)
61      )
62    }
63
64    override fun onBindViewHolder(holder: PeerViewHolder, position: Int) {
65      val participant = participantList[position]
66      holder.tvName.text = participant.displayName
67
68      // adding the initial video stream for the participant into the 'VideoView'
69      for ((_, stream) in participant.streams) {
70        if (stream.kind.equals("video", ignoreCase = true)) {
71          holder.participantView.visibility = View.VISIBLE
72          val videoTrack = stream.track as VideoTrack
73          holder.participantView.addTrack(videoTrack)
74          break
75        }
76      }
77
78      // add Listener to the participant which will update start or stop the video stream of that participant
79      participant.addEventListener(object : ParticipantEventListener() {
80        override fun onStreamEnabled(stream: Stream) {
81          if (stream.kind.equals("video", ignoreCase = true)) {
82            holder.participantView.visibility = View.VISIBLE
83            val videoTrack = stream.track as VideoTrack
84            holder.participantView.addTrack(videoTrack)
85          }
86        }
87
88        override fun onStreamDisabled(stream: Stream) {
89          if (stream.kind.equals("video", ignoreCase = true)) {
90            holder.participantView.removeTrack()
91            holder.participantView.visibility = View.GONE
92          }
93        }
94      })
95    }
96
97    override fun getItemCount(): Int {
98      return participantList.size
99    }
100
101    class PeerViewHolder(view: View) : RecyclerView.ViewHolder(view) {
102      // 'VideoView' to show Video Stream
103      var participantView: VideoView
104      var tvName: TextView
105
106      init {
107        tvName = view.findViewById(R.id.tvName)
108        participantView = view.findViewById(R.id.participantView)
109      }
110    }
111}
112

1 override fun onCreateView(
2      inflater: LayoutInflater, container: ViewGroup?,
3      savedInstanceState: Bundle?
4  ): View? {
5    //...
6    if (meeting != null) {
7      //...
8      val rvParticipants = view.findViewById<RecyclerView>(R.id.rvParticipants)
9      rvParticipants.layoutManager = GridLayoutManager(mContext, 2)
10      rvParticipants.adapter = SpeakerAdapter(meeting!!)
11  }
12}
13

1dependencies {
2  implementation 'com.google.android.exoplayer:exoplayer:2.18.5'
3  // other app dependencies
4  }
5

1<?xml version="1.0" encoding="utf-8"?>
2<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
3    xmlns:app="http://schemas.android.com/apk/res-auto"
4    xmlns:tools="http://schemas.android.com/tools"
5    android:layout_width="match_parent"
6    android:layout_height="match_parent"
7    android:background="@color/black"
8    tools:context=".ViewerFragment">
9
10    <LinearLayout
11        android:id="@+id/meetingLayout"
12        android:layout_width="match_parent"
13        android:layout_height="wrap_content"
14        android:paddingHorizontal="12sp"
15        android:paddingVertical="5sp">
16
17        <TextView
18            android:id="@+id/meetingId"
19            android:layout_width="0dp"
20            android:layout_height="wrap_content"
21            android:layout_weight="3"
22            android:text="Meeting Id : "
23            android:textColor="@color/white"
24            android:textSize="20sp" />
25
26        <Button
27            android:id="@+id/btnLeave"
28            android:layout_width="0dp"
29            android:layout_height="wrap_content"
30            android:layout_weight="1"
31            android:text="Leave" />
32
33    </LinearLayout>
34
35    <TextView
36        android:id="@+id/waitingLayout"
37        android:layout_width="match_parent"
38        android:layout_height="match_parent"
39        android:text="Waiting for host \n to start the live streaming"
40        android:textColor="@color/white"
41        android:textFontWeight="700"
42        android:textSize="20sp"
43        android:gravity="center"/>
44
45    <com.google.android.exoplayer2.ui.StyledPlayerView
46        android:id="@+id/player_view"
47        android:layout_width="match_parent"
48        android:layout_height="match_parent"
49        android:visibility="gone"
50        app:resize_mode="fixed_width"
51        app:show_buffering="when_playing"
52        app:show_subtitle_button="false"
53        app:use_artwork="false"
54        app:show_next_button="false"
55        app:show_previous_button="false"
56        app:use_controller="true"
57        android:layout_below="@id/meetingLayout"/>
58
59</RelativeLayout>
60

1class ViewerFragment : Fragment() {
2  private var meeting: Meeting? = null
3  private var playerView: StyledPlayerView? = null
4  private var waitingLayout: TextView? = null
5  private var player: ExoPlayer? = null
6  private var dataSourceFactory: DefaultHttpDataSource.Factory? = null
7  private val startAutoPlay = true
8  private var playbackHlsUrl: String? = ""
9
10
11  override fun onCreateView(
12    inflater: LayoutInflater, container: ViewGroup?,
13    savedInstanceState: Bundle?
14  ): View? {
15    // Inflate the layout for this fragment
16    val view = inflater.inflate(R.layout.fragment_viewer, container, false)
17    playerView = view.findViewById(R.id.player_view)
18    waitingLayout = view.findViewById(R.id.waitingLayout)
19    if (meeting != null) {
20        // set MeetingId to TextView
21        (view.findViewById<View>(R.id.meetingId) as TextView).text =
22            "Meeting Id : " + meeting!!.meetingId
23        // leave the meeting on btnLeave click
24        (view.findViewById<View>(R.id.btnLeave) as Button).setOnClickListener { meeting!!.leave() }
25        // add listener to meeting
26        meeting!!.addEventListener(meetingEventListener)
27    }
28    return view
29  }
30
31  override fun onAttach(context: Context) {
32      super.onAttach(context)
33      mContext = context
34      if (context is Activity) {
35        mActivity = context
36        // get meeting object from MeetingActivity
37        meeting = (mActivity as MeetingActivity?)!!.meeting
38      }
39  }
40
41  private val meetingEventListener: MeetingEventListener = object : MeetingEventListener() {
42      override fun onMeetingLeft() {
43        if (isAdded) {
44          val intents = Intent(mContext, JoinActivity::class.java)
45          intents.addFlags(
46              Intent.FLAG_ACTIVITY_NEW_TASK
47                      or Intent.FLAG_ACTIVITY_CLEAR_TOP or Intent.FLAG_ACTIVITY_CLEAR_TASK
48          )
49          startActivity(intents)
50          mActivity!!.finish()
51        }
52      }
53
54      @RequiresApi(api = Build.VERSION_CODES.P)
55      override fun onHlsStateChanged(HlsState: JSONObject) {
56        if (HlsState.has("status")) {
57            try {
58              if (HlsState.getString("status") == "HLS_PLAYABLE" && HlsState.has("playbackHlsUrl")) {
59                playbackHlsUrl = HlsState.getString("playbackHlsUrl")
60                waitingLayout!!.visibility = View.GONE
61                playerView!!.visibility = View.VISIBLE
62                // initialize player
63                initializePlayer()
64              }
65              if (HlsState.getString("status") == "HLS_STOPPED") {
66                // release the player
67                releasePlayer()
68                playbackHlsUrl = null
69                waitingLayout!!.text = "Host has stopped \n the live streaming"
70                waitingLayout!!.visibility = View.VISIBLE
71                playerView!!.visibility = View.GONE
72              }
73            } catch (e: JSONException) {
74                e.printStackTrace()
75            }
76          }
77      }
78  }
79
80  private fun initializePlayer() {
81    if (player == null) {
82      dataSourceFactory = DefaultHttpDataSource.Factory()
83      val mediaSource = HlsMediaSource.Factory(dataSourceFactory!!).createMediaSource(
84          MediaItem.fromUri(Uri.parse(playbackHlsUrl))
85      )
86      val playerBuilder = ExoPlayer.Builder( /* context = */mContext!!)
87      player = playerBuilder.build()
88      // auto play when player is ready
89      player!!.playWhenReady = startAutoPlay
90      player!!.setMediaSource(mediaSource)
91      // if you want display setting for player then remove this line
92      playerView!!.findViewById<View>(com.google.android.exoplayer2.ui.R.id.exo_settings).visibility =
93          View.GONE
94      playerView!!.player = player
95    }
96    player!!.prepare()
97  }
98
99  private fun releasePlayer() {
100    if (player != null) {
101      player!!.release()
102      player = null
103      dataSourceFactory = null
104      playerView!!.player = null
105    }
106  }
107
108  override fun onDestroy() {
109    mContext = null
110    mActivity = null
111    playbackHlsUrl = null
112    releasePlayer()
113    if (meeting != null) {
114        meeting!!.removeAllListeners()
115        meeting = null
116    }
117    super.onDestroy()
118  }
119
120  companion object {
121    private var mActivity: Activity? = null
122    private var mContext: Context? = null
123  }
124}
125
