VoIP Speed Test: The Complete Guide to Optimizing Call Quality (2025)

Introduction to VoIP Speed Test

Why VoIP Speed Test Matters for Call Quality

• Upload/Download Speeds: Insufficient bandwidth leads to choppy audio and dropped calls. VoIP speed tests help determine if your internet connection can handle the number of concurrent calls required.
• Jitter: Variation in packet arrival times can cause audio distortions, echoes, or missed syllables.
• Latency (Ping): High latency introduces delays, making conversations feel unnatural.
• Packet Loss: Lost packets result in missing audio or call drops.

Key Metrics in a VoIP Speed Test

Upload and Download Speeds

• Upload speed is crucial for sending your voice to others.
• Download speed impacts how you receive audio.

Jitter Explained

• Choppy or scrambled audio
• Out-of-order packet delivery

Latency (Ping)

• < 150 ms is considered excellent
• 150–300 ms is acceptable
• > 300 ms can cause noticeable delays and echo

Packet Loss

MOS Score (Mean Opinion Score)

Bandwidth Requirements per Call (Code Example)

1# Bandwidth per VoIP call calculation (kbps)
2def voip_bandwidth_per_call(codec_bitrate_kbps=100, overhead_kbps=20):
3    return codec_bitrate_kbps + overhead_kbps
4
5# Example: G.711 codec (64 kbps), overhead 20 kbps
6calls = 10
7bandwidth_per_call = voip_bandwidth_per_call(64, 20)
8total_bandwidth = calls * bandwidth_per_call
9print(f"Total bandwidth needed for {calls} calls: {total_bandwidth} kbps")
10

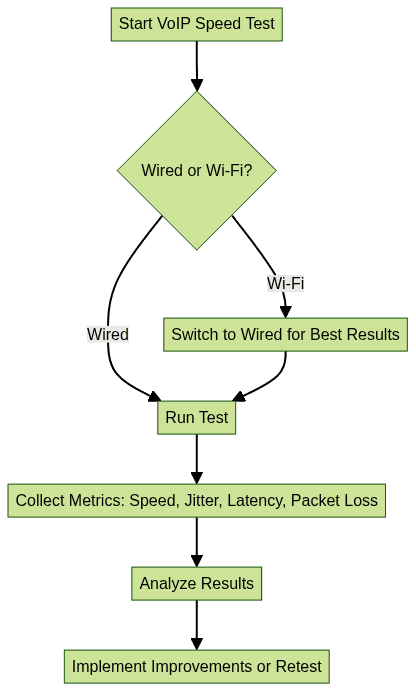

How to Perform a VoIP Speed Test

1. Choose a VoIP test tool: Use reputable web-based services (e.g., VoIP.ms, 8x8, RingCentral) or downloadable test clients for advanced diagnostics.
2. Connect your device: For best results, use a wired Ethernet connection. Wi-Fi introduces variability due to interference and signal strength.
3. Close background applications: Ensure no other programs are consuming bandwidth during the test.
4. Run the test: Initiate the test and observe metrics for upload/download speed, jitter, latency, packet loss, and MOS.
5. Record results: Save your results for benchmarking or troubleshooting.

Interpreting Your VoIP Speed Test Results

• Upload/Download Speed: For business VoIP, allocate at least 100 kbps per concurrent call; for HD voice or video, reserve more. Home VoIP users typically require less, but bandwidth should be dedicated during calls.
• Jitter: Should remain below 30 ms for best results. High jitter indicates unstable connections or network congestion.
• Latency: Aim for < 150 ms. Anything higher may cause noticeable delays.
• Packet Loss: Should remain under 1%. Any higher and call quality will degrade.
• MOS Score: Above 4.0 is excellent; 3.5–4.0 is acceptable.

Example Test Output (JSON)

1{
2  "upload_speed_kbps": 980,
3  "download_speed_kbps": 5200,
4  "jitter_ms": 12,
5  "latency_ms": 65,
6  "packet_loss_percent": 0.1,
7  "mos_score": 4.5
8}
9

• Low speeds: Check for network congestion, bandwidth-hungry devices, or ISP throttling.
• High jitter/latency: Use wired connections, upgrade hardware, or optimize router QoS.
• Packet loss: Inspect cables, switch equipment, or contact your ISP.

How Much Bandwidth Do You Need for VoIP?

• Basic calculation: Multiply the required bandwidth per call by the number of concurrent calls.
• Consider overhead: Always factor in protocol overhead and other network usage.

Bandwidth Calculation Code Example

1# Calculate total bandwidth for concurrent VoIP calls
2def total_voip_bandwidth(calls, bandwidth_per_call_kbps=100):
3    return calls * bandwidth_per_call_kbps
4
5# Example: 15 calls, G.729 codec (40 kbps per call)
6calls = 15
7bandwidth_per_call = 40
8print(f"Total bandwidth required: {total_voip_bandwidth(calls, bandwidth_per_call)} kbps")
9

Troubleshooting & Improving VoIP Speed Test Results

• Identify bottlenecks: Check router performance, ISP bandwidth, and internal network congestion. Use network monitoring tools to pinpoint issues.
• Upgrade internet connection: If bandwidth is insufficient, negotiate with your ISP for better service.
• Implement QoS (Quality of Service): Configure your router to prioritize VoIP traffic. Many business routers have built-in VoIP settings.
• Use Ethernet over Wi-Fi: Wired connections reduce jitter, latency, and packet loss.
• Optimize router settings: Update firmware, enable SIP ALG (if required), and separate VoIP devices onto a dedicated VLAN.

Best Practices for Ensuring High-Quality VoIP Calls

• Regularly run a VoIP speed test to benchmark network health.
• Monitor bandwidth usage and restrict non-essential applications during calls.
• Schedule network maintenance during off-hours to avoid call disruption.
• Document performance trends and correlate with call quality reports.
• Contact your ISP or IT team if persistent issues arise—professional diagnostics may be required.

Conclusion
