How Socket.IO Works: A Comprehensive Guide for Developers

What is Socket.IO?

Introduction to Real-Time Communication

Socket.IO's Role in Real-Time Applications

Key Features of Socket.IO

• Real-time bidirectional communication: Enables instant data transfer in both directions between the client and server.
• Event-based communication: Uses a flexible event system for sending and receiving data.
• Automatic reconnection: Handles dropped connections and automatically attempts to reconnect.
• Multiplexing support: Allows multiple logical connections to share a single underlying WebSocket connection.
• Namespaces and Rooms: Provides mechanisms for organizing and managing communication channels and subgroups.
• Reliability: Offers acknowledgements to ensure message delivery.
• Cross-browser Compatibility: Handles different browsers and environments.

How Socket.IO Establishes Connections

WebSocket Protocol: The Foundation of Socket.IO

Fallback Mechanisms: Handling Non-WebSocket Environments

• HTTP long-polling: The client makes a series of HTTP requests to the server, and the server holds the connection open until it has data to send.
• Flash Sockets: (Less Relevant) Uses Adobe Flash to create a socket connection.

Connection Handshaking and Negotiation

Server-side connection setup with Node.js and Socket.IO

1const { Server } = require("socket.io");
2
3const io = new Server(3000, {
4  cors: {
5    origin: "http://localhost:8000", // Allow connections from your client's origin
6    methods: ["GET", "POST"]
7  }
8});
9
10io.on("connection", (socket) => {
11  console.log("A user connected");
12
13  socket.on("disconnect", () => {
14    console.log("A user disconnected");
15  });
16});
17
18console.log("Socket.IO server listening on port 3000");
19

Client-side connection setup with JavaScript

1<script src="/socket.io/socket.io.js"></script>
2<script>
3  const socket = io("http://localhost:3000");
4
5  socket.on("connect", () => {
6    console.log("Connected to server");
7  });
8
9  socket.on("disconnect", () => {
10    console.log("Disconnected from server");
11  });
12</script>
13

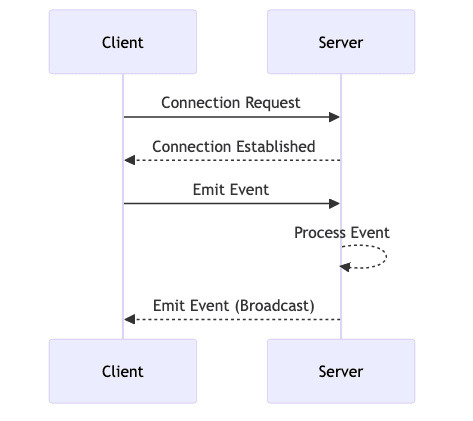

Event-Driven Architecture of Socket.IO

Emitting and Listening for Events

socket.emit() and socket.on() explained

• socket.emit(eventName, data, callback): This function is used to emit an event. eventName is a string that identifies the event. data is the data to be sent along with the event. callback is an optional function that will be executed after the event has been acknowledged by the recipient.
• socket.on(eventName, callback): This function is used to listen for an event. eventName is the name of the event to listen for. callback is a function that will be executed when the event is received. The callback function receives the data sent with the event as arguments.

Handling Multiple Events and Callbacks

[Code Snippet: Example of emitting and receiving custom events]

1// Server-side
2io.on("connection", (socket) => {
3  socket.on("chat message", (msg) => {
4    console.log("message: " + msg);
5    io.emit("chat message", msg); // Broadcast to all connected clients
6  });
7});
8
9// Client-side
10socket.emit("chat message", "Hello from client!");
11socket.on("chat message", (msg) => {
12  console.log("Received message: " + msg);
13});
14

Passing Data with Events: Different Data Types

[Code Snippet: Sending complex objects and arrays using socket.emit()]

1// Server-side
2io.on("connection", (socket) => {
3  socket.on("update user", (user) => {
4    console.log("Received user update: ", user);
5  });
6});
7
8// Client-side
9const user = {
10  name: "John Doe",
11  age: 30,
12  email: "john.doe@example.com",
13};
14
15socket.emit("update user", user);
16

Advanced Socket.IO Features

Namespaces: Organizing Communication Channels

Rooms: Creating Subgroups for Targeted Broadcasting

Broadcasting: Sending Messages to Multiple Clients

[Code Snippet: Example of broadcasting a message to a specific room]

1// Server-side
2io.on("connection", (socket) => {
3  socket.on("join room", (room) => {
4    socket.join(room);
5    io.to(room).emit("room message", `User ${socket.id} joined the room`);
6  });
7});
8
9// Client-side
10socket.emit("join room", "my-room");
11socket.on("room message", (msg) => {
12  console.log("Received room message: " + msg);
13});
14

Acknowledgements: Ensuring Reliable Delivery

[Code Snippet: Using acknowledgements for request-response patterns]

1// Server-side
2io.on("connection", (socket) => {
3  socket.on("get data", (callback) => {
4    const data = { message: "Here's your data!" };
5    callback(data);
6  });
7});
8
9// Client-side
10socket.emit("get data", (data) => {
11  console.log("Received data: ", data);
12});
13

Socket.IO in Practice: Building a Chat Application

Setting up the Server and Client

Handling User Connections and Disconnections

Implementing Message Broadcasting

[Code Snippet: Complete example of a simple chat application]

1// Server (server.js)
2const { Server } = require("socket.io");
3const io = new Server(3000, {
4  cors: {
5    origin: "http://localhost:8000",
6    methods: ["GET", "POST"]
7  }
8});
9
10io.on("connection", (socket) => {
11  console.log('A user connected');
12
13  socket.on('chat message', (msg) => {
14    io.emit('chat message', msg);
15  });
16
17  socket.on('disconnect', () => {
18    console.log('User disconnected');
19  });
20});
21
22console.log('Server listening on port 3000');
23
24// Client (index.html)
25<!DOCTYPE html>
26<html>
27<head>
28    <title>Socket.IO Chat</title>
29</head>
30<body>
31    <ul id="messages"></ul>
32    <form id="form" action="">
33      <input type="text" id="input" autocomplete="off" /><button>Send</button>
34    </form>
35
36    <script src="/socket.io/socket.io.js"></script>
37    <script>
38      const socket = io("http://localhost:3000");
39
40      const messages = document.getElementById('messages');
41      const form = document.getElementById('form');
42      const input = document.getElementById('input');
43
44      form.addEventListener('submit', function(e) {
45        e.preventDefault();
46        if (input.value) {
47          socket.emit('chat message', input.value);
48          input.value = '';
49        }
50      });
51
52      socket.on('chat message', function(msg) {
53        const item = document.createElement('li');
54        item.textContent = msg;
55        messages.appendChild(item);
56        window.scrollTo(0, document.body.scrollHeight);
57      });
58    </script>
59</body>
60</html>
61

Adding User Authentication (brief overview)

Troubleshooting and Best Practices

Common Errors and How to Fix Them

• Connection refused: Ensure that the Socket.IO server is running and accessible from the client.
• Transport errors: Check for firewall or proxy issues that may be blocking WebSocket connections.
• Event not received: Verify that the event name is spelled correctly and that the client and server are both listening for the event.

Optimizing Performance and Scalability

• Use namespaces and rooms: Organize communication channels to reduce unnecessary message broadcasting.
• Implement message compression: Reduce the size of messages to improve network performance.
• Scale horizontally: Distribute the Socket.IO server across multiple machines to handle a large number of concurrent connections.

Security Considerations

• Validate user input: Prevent malicious users from injecting code or sending harmful messages.
• Implement authentication: Ensure that only authorized users can access the application.
• Use HTTPS: Encrypt communication between the client and server to protect sensitive data.

Conclusion

Summary of Key Concepts

Further Learning Resources

• Learn more about WebSockets:

  Understanding the underlying technology

• Socket.IO official documentation:

  For in-depth API reference

• Node.js documentation:

  For essential Node.js knowledge
