CDN HLS Streaming: The Ultimate Guide for Developers
In today's digital landscape, delivering high-quality video content seamlessly to a global audience is crucial. HTTP Live Streaming (HLS) combined with a Content Delivery Network (CDN) offers a robust solution for scalable and reliable video delivery. This guide provides a comprehensive overview of CDN HLS streaming, covering everything from the fundamentals to advanced techniques, ensuring developers can effectively implement and optimize their streaming solutions.
What is HTTP Live Streaming (HLS)?
HTTP Live Streaming (HLS) is an adaptive bitrate streaming protocol developed by Apple. It works by breaking down video content into small HTTP-based file downloads, and then encoding the source media file into multiple different bitrates. Clients can then download the content from any standard HTTP web server.
The Role of a CDN in HLS Streaming
A Content Delivery Network (CDN) is a geographically distributed network of servers that caches content closer to users. This reduces latency and improves streaming performance by delivering video content from a server that is physically closer to the viewer. For HLS streaming, a CDN acts as a crucial intermediary, ensuring smooth and uninterrupted playback, especially for large audiences.
Benefits of Using a CDN for HLS Streaming
Using a CDN for HLS streaming offers several key advantages:
- Reduced Latency: Delivers content from the nearest server, minimizing delay.
- Improved Scalability: Handles large audience sizes without performance degradation.
- Enhanced Reliability: Ensures consistent streaming even during peak demand.
- Cost Efficiency: Optimizes bandwidth usage and reduces origin server load.
- Global Reach: Provides high-quality streaming to users worldwide.
How CDN HLS Streaming Works
CDN HLS streaming involves a coordinated process between the video source, the CDN, and the end-user's player. This section breaks down the key components and steps involved in delivering a seamless streaming experience.
Understanding the HLS Workflow
The HLS workflow can be summarized as follows:
- Encoding: Video content is encoded into multiple bitrates (adaptive bitrate streaming).
- Segmentation: Encoded video is split into small segments (typically a few seconds each).
- Playlist Generation: A playlist file (m3u8) is created, listing the available segments and bitrates. The m3u8 playlist contains references to the media segment files and other playlists that contain information about the bitrates.
- CDN Distribution: The segments and playlist file are uploaded to the CDN.
- Playback: The user's HLS player requests the playlist file from the CDN.
- Adaptive Streaming: The player analyzes network conditions and selects the appropriate bitrate, downloading the corresponding segments from the CDN.
Here's an example of an m3u8 playlist:
m3u8 playlist example
1#EXTM3U
2#EXT-X-VERSION:3
3#EXT-X-MEDIA-SEQUENCE:0
4#EXT-X-ALLOW-CACHE:YES
5
6#EXT-X-STREAM-INF:BANDWIDTH=1280000,CODECS="avc1.42c01e,mp4a.40.2",RESOLUTION=640x360
7playlist_360p.m3u8
8
9#EXT-X-STREAM-INF:BANDWIDTH=2560000,CODECS="avc1.42c01e,mp4a.40.2",RESOLUTION=1280x720
10playlist_720p.m3u8
11
12#EXT-X-ENDLIST

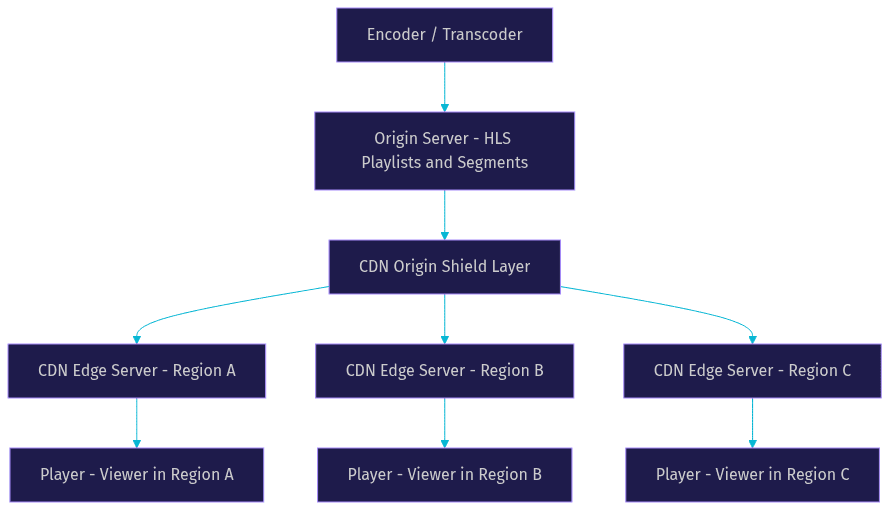

13The Role of the CDN in Delivery
The CDN plays a critical role in efficiently delivering HLS content. When a user requests the m3u8 playlist, the CDN intercepts the request and serves the playlist and subsequent video segments from the nearest edge server. This reduces latency and improves the overall streaming experience.
Consider this simplified example of CDN integration in a streaming application:
javascript
1// Assuming you have a CDN URL for your m3u8 playlist
2const hlsPlaylistURL = 'https://your-cdn-domain.com/path/to/master.m3u8';
3
4// Use an HLS player library (e.g., hls.js)
5if (Hls.isSupported()) {
6 const video = document.getElementById('video');
7 const hls = new Hls();
8 hls.loadSource(hlsPlaylistURL);
9 hls.attachMedia(video);
10 hls.on(Hls.Events.MANIFEST_PARSED, function() {
11 video.play();
12 });
13}
14//If HLS is not supported. Fall back to native video element.
15else if (video.canPlayType('application/vnd.apple.mpegurl')) {
16 video.src = hlsPlaylistURL;
17 video.addEventListener('loadedmetadata', function() {
18 video.play();
19 });
20}
21Adaptive Bitrate Streaming and its Importance
Adaptive bitrate streaming (ABS) is a technique where video content is encoded at multiple bitrates. The HLS player dynamically switches between these bitrates based on the user's network conditions. If the network is strong, the player will select a higher bitrate for better quality. If the network is weak, the player will switch to a lower bitrate to prevent buffering. ABS is crucial for ensuring a smooth streaming experience across various network conditions.
Choosing the Right CDN for HLS Streaming
Selecting the right CDN is essential for optimizing your HLS streaming performance. Consider the following factors when making your decision.
Key Features to Consider
- Global Coverage: Ensure the CDN has a wide network of servers to reach your target audience.
- HLS Support: Verify that the CDN fully supports HLS streaming, including m3u8 playlist caching and segment delivery.
- Security Features: Look for features like TLS/SSL encryption and DRM support to protect your content.
- Analytics and Monitoring: Choose a CDN that provides detailed analytics to track performance and identify issues.
- Edge Computing Capabilities: CDNs with edge computing capabilities can perform real-time video processing, personalized ad insertion, and other advanced functions at the edge of the network.
Scalability and Performance
The CDN should be able to handle sudden spikes in traffic without affecting performance. Look for a CDN with a robust infrastructure and advanced caching mechanisms to ensure high availability and low latency.
Pricing and Support
Evaluate the CDN's pricing model and ensure it aligns with your budget. Consider factors like bandwidth usage, storage costs, and any additional features. Also, check the quality of the CDN's technical support and their response time.
Case Studies: Examples of Successful CDN HLS Deployments
Many companies have successfully implemented CDN HLS streaming to deliver high-quality video experiences. Examples include media companies streaming live events, e-learning platforms delivering online courses, and enterprises using video for internal communications. Analyzing these case studies can provide valuable insights into best practices and potential challenges.
Setting up CDN HLS Streaming
This section provides a step-by-step guide to setting up CDN HLS streaming. The actual steps may vary depending on the CDN provider you choose.
Step-by-Step Guide to Configuration
- Encode your video: Use a video encoder to encode your video into multiple bitrates suitable for adaptive streaming. Popular encoders include FFmpeg, and cloud-based services like AWS Elemental MediaConvert.
- Segment your video: The encoded video needs to be segmented into small chunks (typically a few seconds). The encoder you chose should handle this as part of the encoding process.
- Create the M3U8 playlist: Generate a master M3U8 playlist that lists all the available bitrates and resolutions, as well as individual playlists for each bitrate. Ensure the paths to your media segments within the playlist are correct and point to where the CDN will store them.
- Upload content to your CDN: Upload the M3U8 playlist and all video segments to your CDN's storage. Ensure you configure the CDN to properly cache these assets.
- Configure CDN origin settings: Configure the CDN's origin settings to point to the location of your video content (if the CDN requires that, some CDN automatically handle this).
- Update your player: In your video player application, update the source to point to the CDN URL of your master M3U8 playlist.
Here's a simplified example of how you might configure an Nginx server for HLS streaming:
nginx
1http {
2 include mime.types;
3 default_type application/octet-stream;
4
5 server {
6 listen 80;
7 server_name localhost;
8
9 location /hls {
10 types {
11 application/vnd.apple.mpegurl m3u8;
12 video/mp2t ts;
13 }
14 root /path/to/your/hls/content; # Replace with the actual path
15 add_header Cache-Control "no-cache";
16 }
17 }
18}
19Integrating with Your Streaming Platform
Integrate the CDN URL of your HLS playlist into your streaming platform. This typically involves updating the video player configuration to point to the CDN URL instead of the origin server URL. Test the integration thoroughly to ensure smooth playback and adaptive bitrate switching.
Testing and Optimization
After setting up CDN HLS streaming, it's crucial to test the configuration and optimize performance. Monitor key metrics like latency, buffering rate, and error rate. Adjust CDN settings as needed to improve the streaming experience. Utilize CDN analytics tools to identify areas for improvement. For example, you can test your stream with multiple devices and internet connections to simulate real-world conditions. Tools like Google PageSpeed Insights can also help identify optimization opportunities.
Advanced CDN HLS Streaming Techniques
Beyond basic setup, several advanced techniques can further enhance your CDN HLS streaming solution.
Low-Latency Streaming
Low-latency HLS (LL-HLS) is an extension to the HLS protocol that reduces latency to near real-time levels. This is achieved by using shorter segment durations and optimizing the delivery process. To implement LL-HLS, you need to use an encoder that supports LL-HLS, configure your CDN to support the shorter segments, and use a player that is compatible with LL-HLS. Some CDN providers offer specific configurations and optimizations for achieving low-latency streaming.
Content Security and Encryption
Protecting your video content is crucial, especially for premium content. HLS supports encryption using AES-128. You can encrypt your video segments using a key and then deliver the key securely to authorized players. Additionally, you can use DRM (Digital Rights Management) systems to further protect your content from unauthorized access. CDNs often provide features to integrate with DRM providers and manage key delivery.
Monitoring and Analytics
Continuously monitoring your CDN HLS streaming performance is essential for identifying and resolving issues. CDNs provide various analytics tools that track metrics like bandwidth usage, latency, error rates, and geographical distribution of viewers. Use these analytics to identify performance bottlenecks and optimize your CDN configuration. Set up alerts to notify you of any critical issues, such as a sudden spike in error rates or a drop in performance.
Troubleshooting Common CDN HLS Issues
Even with a well-configured CDN HLS streaming setup, issues can arise. This section provides guidance on troubleshooting common problems.
Buffering Problems
Buffering occurs when the player doesn't have enough data to play the video smoothly. This can be caused by network congestion, slow CDN performance, or incorrect HLS configuration. Check the user's network connection, verify that the CDN is performing optimally, and ensure that the HLS playlist and segments are correctly configured.
Playback Errors
Playback errors can be caused by various factors, such as corrupted video segments, incorrect playlist formatting, or player compatibility issues. Check the integrity of your video segments, validate your HLS playlist, and ensure that your player supports the HLS version and codecs you are using.
Stream Interruptions
Stream interruptions can be caused by network outages, CDN server failures, or issues with the origin server. Ensure that your CDN has sufficient redundancy and failover mechanisms in place. Monitor the health of your origin server and network infrastructure to quickly identify and resolve any issues.
Low Resolution Issues
Low resolution issues can occur if the player is consistently selecting a lower bitrate due to perceived network conditions. Check the accuracy of the player's network detection, ensure that your CDN is delivering all available bitrates, and verify that the user's device supports the higher resolutions.
Conclusion
CDN HLS streaming is a powerful solution for delivering high-quality video content to a global audience. By understanding the fundamentals of HLS, choosing the right CDN, and implementing best practices for configuration, security, and optimization, developers can create a seamless and reliable streaming experience. By implementing all the steps correctly, it's possible to deliver a premium streaming experience for the end-user.
Further Resources:
- Learn more about HLS:
Apple's official HLS documentation
. - Explore CDN options:
Cloudflare's CDN resources
. - Understand adaptive bitrate streaming:
Wikipedia article on adaptive bitrate streaming
.
1graph LR
2A[User Device] --> B(CDN Edge Server);
3B --> C{HLS Playlist (.m3u8)};
4C -- Contains --> D[Segment List];
5D --> E(CDN Edge Server);
6E -- Delivers --> F[Video Segments (.ts)];
7F --> A;
8style A fill:#f9f,stroke:#333,stroke-width:2px
9style B fill:#ccf,stroke:#333,stroke-width:2px
10style E fill:#ccf,stroke:#333,stroke-width:2px
11style C fill:#ffc,stroke:#333,stroke-width:2px
12style D fill:#ffc,stroke:#333,stroke-width:2px
13style F fill:#fcf,stroke:#333,stroke-width:2px
14
