Building a Voice Activity Detection Agent

Learn to build a voice activity detection AI agent with VideoSDK in this step-by-step guide, complete with code examples and testing instructions.

Introduction to AI Voice Agents in Voice Activity Detection

Voice activity detection (VAD) is a crucial technology in the field of audio processing, enabling systems to discern between speech and non-speech segments in audio streams. An AI

Voice Agent

 can leverage VAD to provide intelligent responses and actions based on detected speech. In this tutorial, we will explore how to build an AI

Voice Agent

 that utilizes voice activity detection to interact with users in real-time.

What is an AI

Voice Agent

?

An AI

Voice Agent

 is a software system designed to understand and respond to human speech. It typically uses a combination of speech-to-text (STT), natural language processing (NLP), and text-to-speech (TTS) technologies to process and generate human-like interactions.

Why are they important for the voice activity detection industry?

AI Voice Agents are pivotal in enhancing user experiences in various applications such as customer service, virtual assistants, and interactive voice response systems. They help automate tasks, provide quick responses, and improve accessibility.

Core Components of a Voice Agent

  • STT (Speech-to-Text): Converts spoken language into text.
  • LLM (Large Language Model): Processes the text to understand and generate responses.
  • TTS (Text-to-Speech): Converts text back into spoken language.

What You'll Build in This Tutorial

In this tutorial, we will build a Voice Activity Detection AI Agent using the VideoSDK framework. This agent will detect voice activity, process the speech, and respond intelligently using state-of-the-art technologies.

Architecture and Core Concepts

High-Level Architecture Overview

The AI Voice Agent architecture involves several key components working together to process audio input and generate responses. The data flow begins with capturing user speech, which is then processed through various stages to produce an appropriate response.

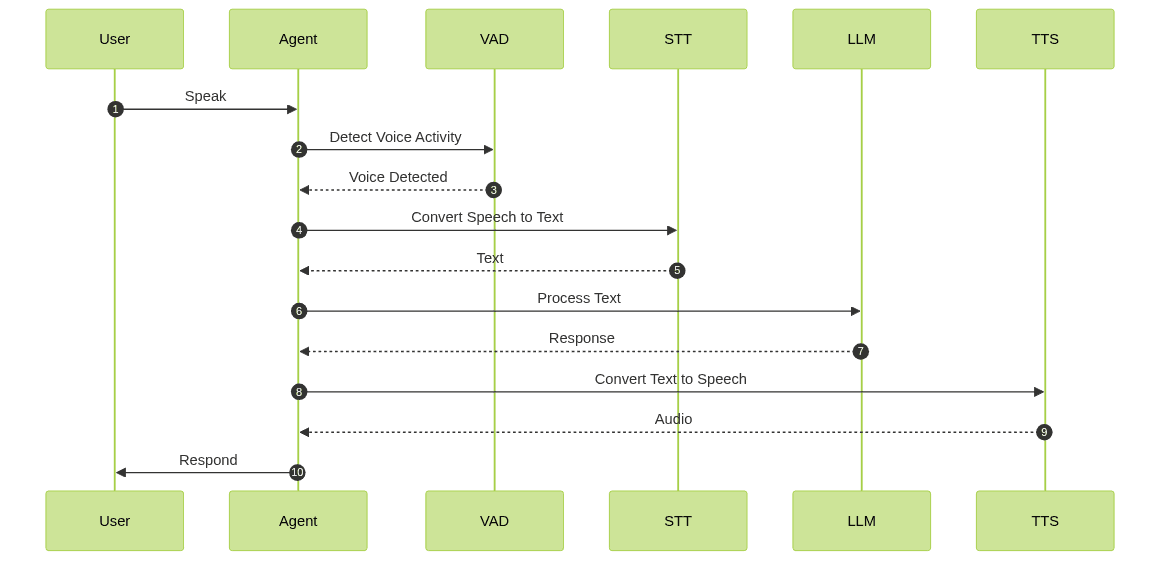

Diagram

Understanding Key Concepts in the VideoSDK Framework

  • Agent: The core class representing your bot, handling interactions and managing the conversation flow.
  • CascadingPipeline: Manages the flow of audio processing from STT, through LLM, to TTS. Learn more about the

    Cascading pipeline in AI voice Agents

    .
  • VAD & TurnDetector: These components help the agent determine when to listen and when to speak, ensuring smooth interactions. For more details, check out

    Turn detector for AI voice Agents

    .

Setting Up the Development Environment

Prerequisites

Before starting, ensure you have Python 3.11+ installed and a VideoSDK account. You can sign up at app.videosdk.live.

Step 1: Create a Virtual Environment

Create a virtual environment to manage dependencies:
1python3 -m venv venv
2source venv/bin/activate  # On Windows use `venv\Scripts\activate`
3

Step 2: Install Required Packages

Install the necessary packages using pip:
1pip install videosdk
2

Step 3: Configure API Keys in a .env File

Create a .env file in your project directory and add your VideoSDK API keys:
1VIDEOSDK_API_KEY=your_api_key_here
2

Building the AI Voice Agent: A Step-by-Step Guide

Let's start by presenting the complete code block for our AI Voice Agent:
1import asyncio, os
2from videosdk.agents import Agent, AgentSession, CascadingPipeline, JobContext, RoomOptions, WorkerJob, ConversationFlow
3from videosdk.plugins.silero import SileroVAD
4from videosdk.plugins.turn_detector import TurnDetector, pre_download_model
5from videosdk.plugins.deepgram import DeepgramSTT
6from videosdk.plugins.openai import OpenAILLM
7from videosdk.plugins.elevenlabs import ElevenLabsTTS
8from typing import AsyncIterator
9
10# Pre-downloading the Turn Detector model
11pre_download_model()
12
13agent_instructions = "You are a specialized AI Voice Agent focused on 'voice activity detection'. Your persona is that of a technical assistant for audio processing applications. Your primary capabilities include explaining the concept of voice activity detection, guiding users through setting up voice activity detection in their systems, and troubleshooting common issues related to voice activity detection. You can also provide insights into the latest trends and technologies in voice activity detection. However, you are not a certified audio engineer, and you must advise users to consult professional audio engineers for complex system integrations or issues beyond basic troubleshooting. Always ensure that users understand the limitations of voice activity detection technology, such as potential inaccuracies in noisy environments."
14
15class MyVoiceAgent(Agent):
16    def __init__(self):
17        super().__init__(instructions=agent_instructions)
18    async def on_enter(self): await self.session.say("Hello! How can I help?")
19    async def on_exit(self): await self.session.say("Goodbye!")
20
21async def start_session(context: JobContext):
22    # Create agent and conversation flow
23    agent = MyVoiceAgent()
24    conversation_flow = ConversationFlow(agent)
25
26    # Create pipeline
27    pipeline = CascadingPipeline(
28        stt=DeepgramSTT(model="nova-2", language="en"),
29        llm=OpenAILLM(model="gpt-4o"),
30        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
31        vad=SileroVAD(threshold=0.35),
32        turn_detector=TurnDetector(threshold=0.8)
33    )
34
35    session = AgentSession(
36        agent=agent,
37        pipeline=pipeline,
38        conversation_flow=conversation_flow
39    )
40
41    try:
42        await context.connect()
43        await session.start()
44        # Keep the session running until manually terminated
45        await asyncio.Event().wait()
46    finally:
47        # Clean up resources when done
48        await session.close()
49        await context.shutdown()
50
51def make_context() -> JobContext:
52    room_options = RoomOptions(
53    #  room_id="YOUR_MEETING_ID",  # Set to join a pre-created room; omit to auto-create
54        name="VideoSDK Cascaded Agent",
55        playground=True
56    )
57
58    return JobContext(room_options=room_options)
59
60if __name__ == "__main__":
61    job = WorkerJob(entrypoint=start_session, jobctx=make_context)
62    job.start()
63
Now, let's break down the code to understand each part.

Step 4.1: Generating a VideoSDK Meeting ID

To create a meeting ID, use the following curl command:
1curl -X POST "https://api.videosdk.live/v1/meetings" \
2-H "Authorization: Bearer YOUR_API_KEY" \
3-H "Content-Type: application/json"
4

Step 4.2: Creating the Custom Agent Class

The MyVoiceAgent class is where we define the behavior of our AI Voice Agent. It inherits from the Agent class and sets up initial instructions and responses:
1class MyVoiceAgent(Agent):
2    def __init__(self):
3        super().__init__(instructions=agent_instructions)
4    async def on_enter(self): await self.session.say("Hello! How can I help?")
5    async def on_exit(self): await self.session.say("Goodbye!")
6

Step 4.3: Defining the Core Pipeline

The CascadingPipeline is crucial as it defines how audio is processed through the system. Each plugin plays a specific role:
1pipeline = CascadingPipeline(
2    stt=DeepgramSTT(model="nova-2", language="en"),
3    llm=OpenAILLM(model="gpt-4o"),
4    tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
5    vad=SileroVAD(threshold=0.35),
6    turn_detector=TurnDetector(threshold=0.8)
7)
8
  • STT: Converts speech to text using Deepgram.
  • LLM: Processes the text using OpenAI's GPT-4.
  • TTS: Converts text responses back to speech using ElevenLabs.
  • VAD: Detects when the user is speaking using

    Silero Voice Activity Detection

    .
  • TurnDetector: Manages conversational turn-taking.

Step 4.4: Managing the Session and Startup Logic

The session management and startup logic is handled in the start_session function and the main block:
1async def start_session(context: JobContext):
2    # Create agent and conversation flow
3    agent = MyVoiceAgent()
4    conversation_flow = ConversationFlow(agent)
5
6    # Create pipeline
7    pipeline = CascadingPipeline(
8        stt=DeepgramSTT(model="nova-2", language="en"),
9        llm=OpenAILLM(model="gpt-4o"),
10        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
11        vad=SileroVAD(threshold=0.35),
12        turn_detector=TurnDetector(threshold=0.8)
13    )
14
15    session = AgentSession(
16        agent=agent,
17        pipeline=pipeline,
18        conversation_flow=conversation_flow
19    )
20
21    try:
22        await context.connect()
23        await session.start()
24        # Keep the session running until manually terminated
25        await asyncio.Event().wait()
26    finally:
27        # Clean up resources when done
28        await session.close()
29        await context.shutdown()
30

Running and Testing the Agent

Step 5.1: Running the Python Script

To start the agent, run the following command in your terminal:
1python main.py
2

Step 5.2: Interacting with the Agent in the Playground

Once the script is running, you will see a link to the VideoSDK playground in the console. Open this link in your browser to join the session and interact with your AI Voice Agent.

Advanced Features and Customizations

Extending Functionality with Custom Tools

You can extend the agent's functionality by integrating custom tools using the function_tool feature, allowing for more tailored interactions and capabilities.

Exploring Other Plugins

Explore other STT, LLM, and TTS plugins to enhance your agent's capabilities. The VideoSDK framework supports various options to suit different needs and budgets.

Troubleshooting Common Issues

API Key and Authentication Errors

Ensure your API keys are correctly set in the .env file and that your account is active.

Audio Input/Output Problems

Check your microphone and speaker settings to ensure they are correctly configured and not muted.

Dependency and Version Conflicts

Verify that all dependencies are installed and compatible with your Python version and operating system.

Conclusion

Summary of What You've Built

In this tutorial, you built a fully functional AI Voice Agent capable of detecting voice activity and interacting with users using advanced audio processing technologies. For a comprehensive understanding of the components involved, refer to the

AI voice Agent core components overview

.

Next Steps and Further Learning

Continue exploring the VideoSDK framework and experiment with different plugins and configurations to enhance your AI Voice Agent's capabilities. For more advanced session management, consider diving deeper into

AI voice Agent Sessions

.
