Natural Language Understanding Tutorial with AI Voice Agents

Build an AI Voice Agent for NLU with VideoSDK. Follow this detailed tutorial to set up, code, and test your agent.

Introduction to AI Voice Agents in Natural Language Understanding Tutorial

What is an AI

Voice Agent

?

AI Voice Agents are sophisticated software entities designed to interact with users through voice commands. They leverage advanced technologies such as speech-to-text (STT), natural language processing (NLP), and text-to-speech (TTS) to understand and respond to human language. These agents can perform a variety of tasks, from answering questions to executing commands, making them invaluable in numerous applications.

Why are they important for the Natural Language Understanding tutorial industry?

In the realm of Natural Language Understanding (NLU), AI Voice Agents play a pivotal role. They provide an interactive medium for users to learn and explore complex language concepts. By simulating real-world interactions, they help users grasp the intricacies of NLU, making learning more engaging and effective.

Core Components of a

Voice Agent

  • Speech-to-Text (STT): Converts spoken language into text.
  • Large Language Models (LLM): Processes and understands the text to generate appropriate responses.
  • Text-to-Speech (TTS): Converts text responses back into spoken language.

What You'll Build in This Tutorial

In this tutorial, you'll learn how to build an AI

Voice Agent

 using the VideoSDK framework. This agent will guide users through a Natural Language Understanding tutorial, explaining concepts and answering questions interactively.

Architecture and Core Concepts

High-Level Architecture Overview

The AI

Voice Agent

 architecture involves several key components working in tandem to process user input and generate responses. The process begins with capturing user speech, which is then converted to text using STT. The text is processed by a language model to generate a response, which is finally converted back to speech using TTS.

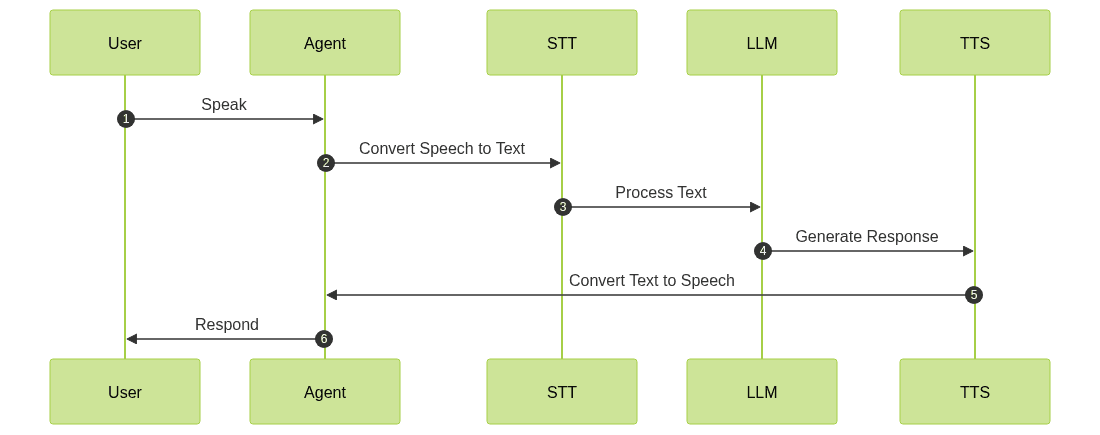

Diagram

Understanding Key Concepts in the VideoSDK Framework

  • Agent: This is the core class representing your AI

    Voice Agent

    . It handles interactions and manages the conversation flow.

  • Cascading Pipeline in AI Voice Agents

    : This structure defines the flow of audio processing, chaining together STT, LLM, and TTS components.
  • VAD &

    Turn Detector for AI Voice Agents

    : These components help the agent determine when to listen and when to speak, ensuring smooth interactions.

Setting Up the Development Environment

Prerequisites

To get started, ensure you have Python 3.11 or higher installed. You'll also need a VideoSDK account, which you can create at app.videosdk.live.

Step 1: Create a Virtual Environment

1python -m venv venv
2source venv/bin/activate  # On Windows use `venv\\Scripts\\activate`
3

Step 2: Install Required Packages

Install the necessary packages using pip:
1pip install videosdk-agents videosdk-plugins-silero videosdk-plugins-turn-detector videosdk-plugins-deepgram videosdk-plugins-openai videosdk-plugins-elevenlabs
2

Step 3: Configure API Keys in a .env file

Create a .env file in your project directory and add your API keys:
1VIDEOSDK_API_KEY=your_videosdk_api_key
2DEEPGRAM_API_KEY=your_deepgram_api_key
3OPENAI_API_KEY=your_openai_api_key
4ELEVENLABS_API_KEY=your_elevenlabs_api_key
5

Building the AI Voice Agent: A Step-by-Step Guide

Here's the complete code for building your AI Voice Agent:
1import asyncio, os
2from videosdk.agents import Agent, AgentSession, CascadingPipeline, JobContext, RoomOptions, WorkerJob, ConversationFlow
3from videosdk.plugins.silero import SileroVAD
4from videosdk.plugins.turn_detector import TurnDetector, pre_download_model
5from videosdk.plugins.deepgram import DeepgramSTT
6from videosdk.plugins.openai import OpenAILLM
7from videosdk.plugins.elevenlabs import ElevenLabsTTS
8from typing import AsyncIterator
9
10# Pre-downloading the Turn Detector model
11pre_download_model()
12
13agent_instructions = "You are an AI Voice Agent specializing in providing a 'Natural Language Understanding tutorial'. Your persona is that of a knowledgeable and patient instructor, guiding users through the complexities of Natural Language Understanding (NLU) with clarity and precision. Your capabilities include explaining key concepts of NLU, providing examples and exercises, and answering questions related to NLU techniques and applications. However, you are not a substitute for professional training or academic courses, and you must remind users to consult comprehensive resources or experts for in-depth learning. Your goal is to make NLU accessible and engaging for learners at all levels."
14
15class MyVoiceAgent(Agent):
16    def __init__(self):
17        super().__init__(instructions=agent_instructions)
18    async def on_enter(self): await self.session.say("Hello! How can I help?")
19    async def on_exit(self): await self.session.say("Goodbye!")
20
21async def start_session(context: JobContext):
22    # Create agent and conversation flow
23    agent = MyVoiceAgent()
24    conversation_flow = ConversationFlow(agent)
25
26    # Create pipeline
27    pipeline = CascadingPipeline(
28        stt=DeepgramSTT(model="nova-2", language="en"),
29        llm=OpenAILLM(model="gpt-4o"),
30        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
31        vad=SileroVAD(threshold=0.35),
32        turn_detector=TurnDetector(threshold=0.8)
33    )
34
35    session = AgentSession(
36        agent=agent,
37        pipeline=pipeline,
38        conversation_flow=conversation_flow
39    )
40
41    try:
42        await context.connect()
43        await session.start()
44        # Keep the session running until manually terminated
45        await asyncio.Event().wait()
46    finally:
47        # Clean up resources when done
48        await session.close()
49        await context.shutdown()
50
51def make_context() -> JobContext:
52    room_options = RoomOptions(
53    #  room_id="YOUR_MEETING_ID",  # Set to join a pre-created room; omit to auto-create
54        name="VideoSDK Cascaded Agent",
55        playground=True
56    )
57
58    return JobContext(room_options=room_options)
59
60if __name__ == "__main__":
61    job = WorkerJob(entrypoint=start_session, jobctx=make_context)
62    job.start()
63

Step 4.1: Generating a VideoSDK Meeting ID

To create a meeting ID, use the following curl command:
1curl -X POST \
2  https://api.videosdk.live/v1/meetings \
3  -H "Authorization: Bearer YOUR_VIDEOSDK_API_KEY" \
4  -H "Content-Type: application/json"
5

Step 4.2: Creating the Custom Agent Class

The MyVoiceAgent class is where you define the behavior of your AI Voice Agent. It extends the Agent class and customizes the interaction flow with on_enter and on_exit methods to greet and bid farewell to users.
1class MyVoiceAgent(Agent):
2    def __init__(self):
3        super().__init__(instructions=agent_instructions)
4    async def on_enter(self): await self.session.say("Hello! How can I help?")
5    async def on_exit(self): await self.session.say("Goodbye!")
6

Step 4.3: Defining the Core Pipeline

The CascadingPipeline is crucial as it defines the flow of audio data through various processing stages. Each plugin in the pipeline has a specific role:
  • DeepgramSTT: Converts speech to text using the "nova-2" model.
  • OpenAILLM: Processes the text and generates responses using the "gpt-4o" model.
  • ElevenLabsTTS: Converts text responses back to speech.
  • SileroVAD: Voice

    Activity Detection

     to determine when the user is speaking.
  • TurnDetector: Helps manage conversation turns.
1pipeline = CascadingPipeline(
2    stt=DeepgramSTT(model="nova-2", language="en"),
3    llm=OpenAILLM(model="gpt-4o"),
4    tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
5    vad=SileroVAD(threshold=0.35),
6    turn_detector=TurnDetector(threshold=0.8)
7)
8

Step 4.4: Managing the Session and Startup Logic

The start_session function is responsible for initializing and managing the agent session. It sets up the agent, pipeline, and conversation flow, and ensures the session runs continuously until manually stopped.
1async def start_session(context: JobContext):
2    agent = MyVoiceAgent()
3    conversation_flow = ConversationFlow(agent)
4    pipeline = CascadingPipeline(
5        stt=DeepgramSTT(model="nova-2", language="en"),
6        llm=OpenAILLM(model="gpt-4o"),
7        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
8        vad=SileroVAD(threshold=0.35),
9        turn_detector=TurnDetector(threshold=0.8)
10    )
11    session = AgentSession(
12        agent=agent,
13        pipeline=pipeline,
14        conversation_flow=conversation_flow
15    )
16    try:
17        await context.connect()
18        await session.start()
19        await asyncio.Event().wait()
20    finally:
21        await session.close()
22        await context.shutdown()
23
The make_context function creates a JobContext with room options, enabling the agent to join a meeting room.
1def make_context() -> JobContext:
2    room_options = RoomOptions(
3        name="VideoSDK Cascaded Agent",
4        playground=True
5    )
6    return JobContext(room_options=room_options)
7
Finally, the script is executed with the if __name__ == "__main__": block, which starts the agent session.
1if __name__ == "__main__":
2    job = WorkerJob(entrypoint=start_session, jobctx=make_context)
3    job.start()
4

Running and Testing the Agent

Step 5.1: Running the Python Script

To run your AI Voice Agent, execute the script using Python:
1python main.py
2

Step 5.2: Interacting with the Agent in the Playground

Once the script is running, you'll receive a playground link in the console. Open this link in your browser to interact with your agent. You can speak to the agent and receive responses, testing its ability to guide you through NLU concepts.

Advanced Features and Customizations

Extending Functionality with Custom Tools

The VideoSDK framework allows you to extend your agent's capabilities by integrating custom tools. These tools can perform specific tasks or enhance the agent's functionality.

Exploring Other Plugins

While this tutorial uses specific plugins, VideoSDK supports various other STT, LLM, and TTS options. Experiment with different plugins to tailor the agent to your needs.

Troubleshooting Common Issues

API Key and Authentication Errors

Ensure your API keys are correctly configured in the .env file. Double-check for typos or missing keys.

Audio Input/Output Problems

Verify that your microphone and speakers are functioning correctly. Check your system settings and permissions.

Dependency and Version Conflicts

Ensure all installed packages are compatible with Python 3.11+. Use a virtual environment to manage dependencies.

Conclusion

Summary of What You've Built

In this tutorial, you've built an AI Voice Agent capable of guiding users through a Natural Language Understanding tutorial. You've learned about the architecture, setup, and testing of the agent.

Next Steps and Further Learning

Explore additional features and plugins to enhance your agent. Consider diving deeper into NLU concepts and experimenting with customizations to create more advanced interactions.
