Handling Interruptions in Voice AI

Build a voice AI agent to manage interruptions efficiently using VideoSDK.

Introduction to AI Voice Agents in How to Handle Interruptions in Voice AI

What is an AI

Voice Agent

?

AI Voice Agents are sophisticated software programs designed to interact with users through voice commands. They are capable of understanding spoken language, processing the information, and responding appropriately. These agents leverage technologies like Speech-to-Text (STT), Text-to-Speech (TTS), and Natural Language Processing (NLP) to facilitate seamless communication.

Why are they important for the how to handle interruptions in voice AI industry?

In industries where voice interaction is key, such as customer service and smart home devices, handling interruptions effectively is crucial. An AI

Voice Agent

that can manage interruptions ensures a smoother user experience by maintaining context or gracefully transitioning between topics, enhancing user satisfaction and engagement.

Core Components of a

Voice Agent

  • STT (Speech-to-Text): Converts spoken language into text.
  • LLM (Large Language Model): Processes the text and generates a response.
  • TTS (Text-to-Speech): Converts the text response back into spoken language.

What You'll Build in This Tutorial

In this tutorial, you will build an AI

Voice Agent

using the VideoSDK framework that can handle interruptions during voice interactions. This agent will be able to detect when a user interrupts and manage the conversation flow accordingly.

Architecture and Core Concepts

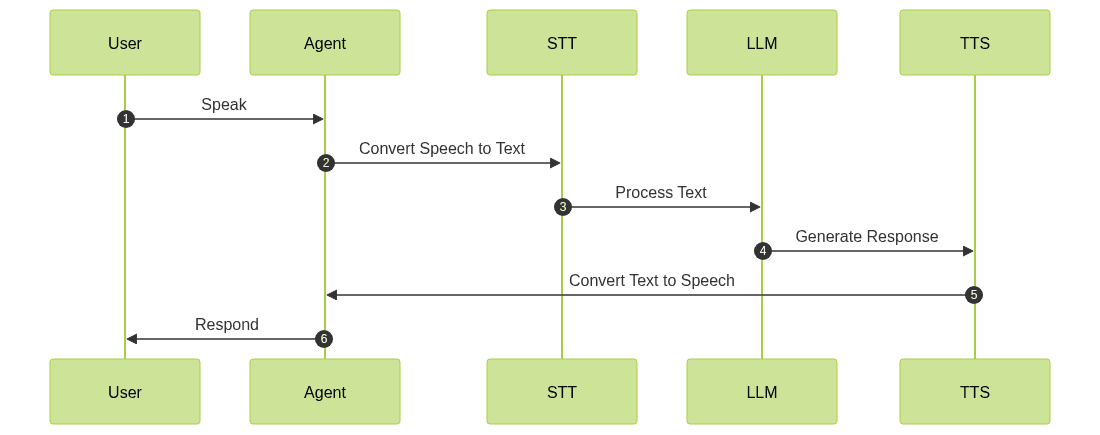

High-Level Architecture Overview

The AI

Voice Agent

processes user speech through a pipeline that includes STT, LLM, and TTS components. The user speaks, the speech is converted to text, processed for meaning, and then converted back to speech for the response.
Diagram

Understanding Key Concepts in the VideoSDK Framework

Setting Up the Development Environment

Prerequisites

  • Python 3.11+: Ensure you have Python installed.
  • VideoSDK Account: Sign up at app.videosdk.live to access the necessary API keys.

Step 1: Create a Virtual Environment

Use the following command to create a virtual environment:
1python -m venv venv
2source venv/bin/activate  # On Windows use `venv\Scripts\activate`
3

Step 2: Install Required Packages

Install the VideoSDK and other necessary packages:
1pip install videosdk
2

Step 3: Configure API Keys in a .env file

Create a .env file in your project directory and add your VideoSDK API keys:
1VIDEOSDK_API_KEY=your_api_key_here
2

Building the AI Voice Agent: A Step-by-Step Guide

Here is the complete code for the AI Voice Agent:
1import asyncio, os
2from videosdk.agents import Agent, AgentSession, CascadingPipeline, JobContext, RoomOptions, WorkerJob, ConversationFlow
3from videosdk.plugins.silero import SileroVAD
4from videosdk.plugins.turn_detector import TurnDetector, pre_download_model
5from videosdk.plugins.deepgram import DeepgramSTT
6from videosdk.plugins.openai import OpenAILLM
7from videosdk.plugins.elevenlabs import ElevenLabsTTS
8from typing import AsyncIterator
9
10# Pre-downloading the Turn Detector model
11pre_download_model()
12
13agent_instructions = "You are an AI Voice Agent specialized in managing and handling interruptions during voice interactions. Your persona is that of a patient and understanding virtual assistant, always ready to help users navigate through their queries smoothly. Your primary capability is to detect when a user interrupts or changes the topic during a conversation and to handle these interruptions gracefully by either pausing, asking for clarification, or seamlessly transitioning to the new topic. You can also provide suggestions on how to return to the original topic if needed. However, you must always respect the user's choice to change the subject. You are not capable of providing personal opinions or making decisions on behalf of the user. Always ensure that the user feels heard and understood, and maintain a polite and professional tone throughout the interaction. Remember, you are not a human and should not attempt to mimic human emotions or provide emotional support beyond acknowledging the user's feelings."
14
15class MyVoiceAgent(Agent):
16    def __init__(self):
17        super().__init__(instructions=agent_instructions)
18    async def on_enter(self): await self.session.say("Hello! How can I help?")
19    async def on_exit(self): await self.session.say("Goodbye!")
20
21async def start_session(context: JobContext):
22    # Create agent and conversation flow
23    agent = MyVoiceAgent()
24    conversation_flow = ConversationFlow(agent)
25
26    # Create pipeline
27    pipeline = CascadingPipeline(
28        stt=DeepgramSTT(model="nova-2", language="en"),
29        llm=OpenAILLM(model="gpt-4o"),
30        tts=ElevenLabsTTS(model="eleven_flash_v2_5"),
31        vad=SileroVAD(threshold=0.35),
32        turn_detector=TurnDetector(threshold=0.8)
33    )
34
35    session = AgentSession(
36        agent=agent,
37        pipeline=pipeline,
38        conversation_flow=conversation_flow
39    )
40
41    try:
42        await context.connect()
43        await session.start()
44        # Keep the session running until manually terminated
45        await asyncio.Event().wait()
46    finally:
47        # Clean up resources when done
48        await session.close()
49        await context.shutdown()
50
51def make_context() -> JobContext:
52    room_options = RoomOptions(
53    #  room_id="YOUR_MEETING_ID",  # Set to join a pre-created room; omit to auto-create
54        name="VideoSDK Cascaded Agent",
55        playground=True
56    )
57
58    return JobContext(room_options=room_options)
59
60if __name__ == "__main__":
61    job = WorkerJob(entrypoint=start_session, jobctx=make_context)
62    job.start()
63

Step 4.1: Generating a VideoSDK Meeting ID

To generate a meeting ID, use the following curl command:
1curl -X POST https://api.videosdk.live/v1/meetings -H "Authorization: Bearer YOUR_API_KEY"
2
This command returns a meeting ID that you can use to join the session.

Step 4.2: Creating the Custom Agent Class

The MyVoiceAgent class extends the Agent class and is responsible for defining the agent's behavior. It initializes with specific instructions to handle interruptions and defines what the agent says when entering or exiting a session.

Step 4.3: Defining the Core Pipeline

The

CascadingPipeline

is set up with various plugins:
  • STT (DeepgramSTT): Converts user speech to text.
  • LLM (OpenAILLM): Processes the text to generate a response.
  • TTS (ElevenLabsTTS): Converts the response text back to speech.
  • VAD (SileroVAD): Detects when the user is speaking.
  • TurnDetector: Helps in managing conversation turns.

Step 4.4: Managing the Session and Startup Logic

The start_session function initializes the session with the agent and pipeline. The make_context function sets up the room options, and the main block starts the job.

Running and Testing the Agent

Step 5.1: Running the Python Script

Run the following command to start the agent:
1python main.py
2

Step 5.2: Interacting with the Agent in the Playground

Once the script is running, you will see a playground link in the console. Use this link to join the session and interact with your AI Voice Agent.

Advanced Features and Customizations

Extending Functionality with Custom Tools

You can extend the agent's capabilities by integrating custom tools using the function_tool feature.

Exploring Other Plugins

Explore other plugins for STT, LLM, and TTS to enhance your agent's performance and capabilities.

Troubleshooting Common Issues

API Key and Authentication Errors

Ensure your API keys are correctly configured in the .env file.

Audio Input/Output Problems

Check your microphone and speaker settings if you encounter audio issues.

Dependency and Version Conflicts

Ensure all dependencies are installed with compatible versions.

Conclusion

Summary of What You've Built

You have built an AI Voice Agent capable of handling interruptions in conversations, enhancing user interaction. For a comprehensive understanding of the components involved, refer to the

AI voice Agent core components overview

.

Next Steps and Further Learning

Explore more advanced features and plugins to further enhance your AI Voice Agent's capabilities.
