How to Setup, Implement, and Optimize WebSockets in Unity?

Learn how to set up, implement, and optimize WebSockets in Unity for real-time communication. This guide covers installation, coding examples, troubleshooting, and best practices.

Introduction

In the world of game development, real-time communication is crucial for creating immersive and interactive experiences. WebSockets, a protocol providing full-duplex communication channels over a single TCP connection, are a key technology for achieving this in Unity.

Importance of WebSockets in Unity

WebSockets are essential for Unity developers looking to implement real-time features like multiplayer gaming, live updates, and interactive user interfaces. Their ability to maintain an open connection allows for instantaneous data exchange, enhancing user experience.
This article will guide you through the setup, implementation, and troubleshooting of WebSockets in Unity, providing practical examples and best practices to ensure smooth real-time communication in your Unity projects.

What is a WebSocket?

WebSockets are a communication protocol that enables a two-way interactive session between the user's browser and a server. Unlike traditional HTTP, which is request-response-based, WebSockets allow continuous communication, making them ideal for real-time applications.

Benefits of Using WebSockets

The primary benefit of WebSockets is their efficiency in real-time communication. They reduce the overhead of HTTP, minimize latency, and support high-frequency updates, which is crucial for multiplayer games, live chats, and real-time notifications in Unity projects.

Setting Up Unity for WebSocket Communication

Requirements

Before starting, ensure you have the following:
  • Unity 2020.1 or higher
  • WebSocketSharp or a similar library
  • Basic understanding of C#

Installing Necessary Packages

First, you need to install the WebSocketSharp library. You can do this by downloading it from GitHub or using a package manager like NuGet.

C#

1// Using NuGet Package Manager in Visual Studio
2Install-Package WebSocketSharp

Initial Project Configuration

Create a new Unity project or open an existing one. Navigate to your project’s Assets folder, and add the WebSocketSharp.dll file to your project.

Implementing WebSockets in Unity

Establishing a WebSocket Connection

To establish a connection, you need to create a WebSocket client and connect it to your server.

C#

1using WebSocketSharp;
2
3public class WebSocketClient : MonoBehaviour
4{
5    private WebSocket ws;
6
7    void Start()
8    {
9        ws = new WebSocket("ws://yourserver.com/socket");
10        ws.OnMessage += (sender, e) =>
11        {
12            Debug.Log("Message received from server: " + e.Data);
13        };
14        ws.Connect();
15    }
16
17    void OnDestroy()
18    {
19        ws.Close();
20    }
21}

Sending and Receiving Messages

Handling messages involves defining methods for sending data to and receiving data from the server.

C#

1void SendMessage(string message)
2{
3    if (ws != null && ws.IsAlive)
4    {
5        ws.Send(message);
6    }
7}
8
9void ws_OnMessage(object sender, MessageEventArgs e)
10{
11    Debug.Log("Message from server: " + e.Data);
12}

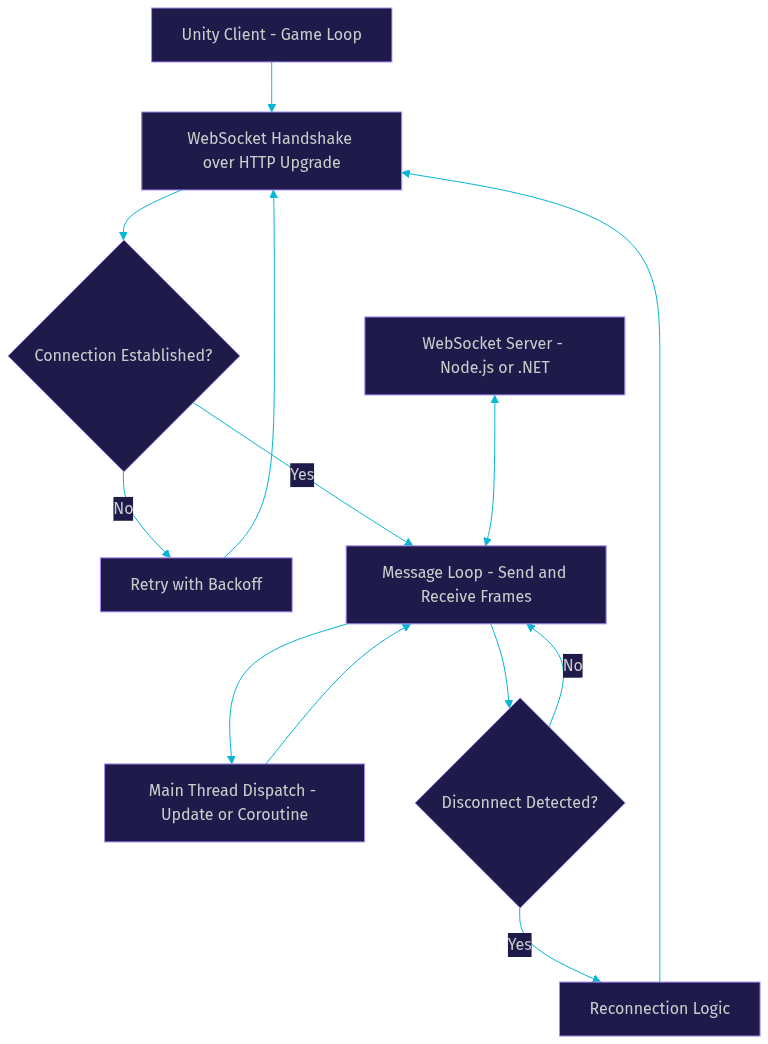

Error Handling and Reconnection Logic

Implement robust error handling and reconnection logic to ensure stability.

C#

1ws.OnError += (sender, e) =>
2{
3    Debug.LogError("WebSocket Error: " + e.Message);
4};
5
6ws.OnClose += (sender, e) =>
7{
8    Debug.LogWarning("WebSocket closed, attempting to reconnect...");
9    Reconnect();
10};
11
12void Reconnect()
13{
14    if (ws != null)
15    {
16        ws.Connect();
17    }
18}

Practical Example: Real-time Chat

A simple chat application can be built using WebSockets. Implement message handling to display incoming messages in a chat window.

C#

1void OnMessageReceived(string message)
2{
3    // Display the message in the chat UI
4    chatWindow.AddMessage(message);
5}

Advanced WebSocket Features in Unity

Binary Data Transmission

For high-performance needs, like sending images or game state data, use binary transmission.

C#

1byte[] data = GetBinaryData();
2ws.Send(data);
3
4ws.OnMessage += (sender, e) =>
5{
6    if (e.IsBinary)
7    {
8        ProcessBinaryData(e.RawData);
9    }
10};

Authentication and Security

Secure your WebSocket connections using tokens or other authentication methods.

C#

1ws = new WebSocket("wss://secureserver.com/socket");
2ws.SetCredentials("username", "password", false);
3ws.Connect();

Common Issues and Troubleshooting

Connection Issues

Common issues include server downtime or incorrect URLs. Always check server status and verify your connection string.

C#

1if (ws.ReadyState != WebSocketState.Open)
2{
3    Debug.LogError("WebSocket not connected.");
4}

Performance Optimization

Optimize WebSocket performance by managing data size and frequency. Avoid sending large payloads frequently.

C#

1void OptimizeDataTransmission()
2{
3    // Compress data before sending
4    byte[] compressedData = Compress(data);
5    ws.Send(compressedData);
6}

Get Free 10,000 Minutes Every Months

No credit card required to start.

Best Practices for Using WebSockets in Unity

Efficient Data Management

Use JSON or binary formats for efficient data transfer. Ensure data structures are compact and avoid redundant information.

Scalability Considerations

Plan for scalability by using WebSocket servers that can handle numerous simultaneous connections. Load balancing and clustering can help manage high traffic.

C#

1void HandleHighTraffic()
2{
3    // Implement load balancing strategies
4    LoadBalancer.DistributeLoad(ws);
5}
This part of the article provides a thorough guide on setting up and implementing WebSockets in Unity, offering code snippets and practical examples to help developers integrate real-time communication into their projects effectively.

Conclusion

Incorporating WebSockets into your Unity projects can significantly enhance real-time communication, creating more interactive and engaging user experiences. By following the setup, implementation steps, and best practices outlined in this guide, you can ensure efficient and secure WebSocket integration in your Unity applications.
