Socket.IO vs. WebSocket: Choosing the Best Real-time Communication Technology

Introduction: Choosing the Right Tool for Real-time Applications

Understanding Real-time Communication Needs

Brief Overview of Socket.IO and WebSocket

What is WebSocket?

Key Characteristics of WebSocket

• Bi-directional communication: Data can be sent and received simultaneously by both the client and the server (full-duplex communication).
• Persistent connection: Once established, the connection remains open, allowing for continuous data exchange.
• Single TCP connection: All communication occurs over a single TCP connection, reducing overhead.
• Protocol standards: WebSocket is defined by the RFC 6455 standard, ensuring interoperability.

Advantages of WebSocket

• Performance: Eliminating the overhead of HTTP headers for each message results in significantly faster communication.
• Scalability: The persistent connection and reduced overhead allow for handling a large number of concurrent connections.
• Simplicity: While requiring manual implementation, the core concept is relatively straightforward: establish a connection and exchange data.

Disadvantages of WebSocket

• Manual implementation: Developers are responsible for handling connection management, error handling, and reconnections.
• Browser compatibility issues: Older browsers may not fully support the

  WebSocket protocol

  , though modern browsers all provide good support.
• Lack of built-in features: Features like automatic reconnections, fallback mechanisms, and message acknowledgments need to be implemented manually.

1// Basic WebSocket client-side JavaScript code
2const socket = new WebSocket('ws://example.com/socketserver');
3
4socket.onopen = () => {
5  console.log('Connected to WebSocket server');
6  socket.send('Hello from the client!');
7};
8
9socket.onmessage = (event) => {
10  console.log('Received: ' + event.data);
11};
12
13socket.onclose = () => {
14  console.log('Disconnected from WebSocket server');
15};
16
17socket.onerror = (error) => {
18  console.error('WebSocket error:', error);
19};
20

1// Basic WebSocket server-side Node.js code (using the 'ws' library)
2const WebSocket = require('ws');
3
4const wss = new WebSocket.Server({ port: 8080 });
5
6wss.on('connection', ws => {
7  console.log('Client connected');
8
9  ws.on('message', message => {
10    console.log(`Received: ${message}`);
11    ws.send(`Server received: ${message}`);
12  });
13
14  ws.on('close', () => {
15    console.log('Client disconnected');
16  });
17
18  ws.on('error', error => {
19    console.error('WebSocket error:', error);
20  });
21});
22
23console.log('WebSocket server started on port 8080');
24

What is Socket.IO?

Key Characteristics of Socket.IO

• Built on top of WebSocket: Socket.IO attempts to establish a WebSocket connection first and falls back to other techniques if necessary.
• Event-driven API: Communication is based on events, making it easy to send and receive messages.
• Automatic reconnections: Socket.IO automatically attempts to reconnect if the connection is lost.
• Fallback mechanisms (long polling): Supports older browsers and environments that don't support WebSocket.
• Additional features (rooms, namespaces): Provides features for organizing and managing connections, such as rooms for grouping clients and namespaces for creating separate communication channels.

Advantages of Socket.IO

• Ease of use: The event-driven API and built-in features simplify development.
• Cross-browser compatibility: The fallback mechanisms ensure compatibility with a wide range of browsers.
• Built-in features: Automatic reconnections, namespaces, and broadcasting are readily available.
• Active community and support: A large and active community provides ample resources and support.

Disadvantages of Socket.IO

• Performance overhead: The additional features and abstraction introduce some performance overhead compared to raw

  WebSockets

  .
• Increased complexity: While simplifying development, the library itself adds complexity.
• Dependency on library: Requires the Socket.IO library on both the client and server.

1// Basic Socket.IO client-side JavaScript code
2const socket = io('http://localhost:3000');
3
4socket.on('connect', () => {
5  console.log('Connected to Socket.IO server');
6  socket.emit('chat message', 'Hello from the client!');
7});
8
9socket.on('chat message', (msg) => {
10  console.log('Received: ' + msg);
11});
12
13socket.on('disconnect', () => {
14  console.log('Disconnected from Socket.IO server');
15});
16

1// Basic Socket.IO server-side Node.js code
2const express = require('express');
3const http = require('http');
4const socketIO = require('socket.io');
5
6const app = express();
7const server = http.createServer(app);
8const io = socketIO(server);
9
10io.on('connection', (socket) => {
11  console.log('Client connected');
12
13  socket.on('chat message', (msg) => {
14    console.log('message: ' + msg);
15    io.emit('chat message', msg); // Broadcast to all clients
16  });
17
18  socket.on('disconnect', () => {
19    console.log('Client disconnected');
20  });
21});
22
23const port = 3000;
24server.listen(port, () => {
25  console.log(`Socket.IO server running on port ${port}`);
26});
27

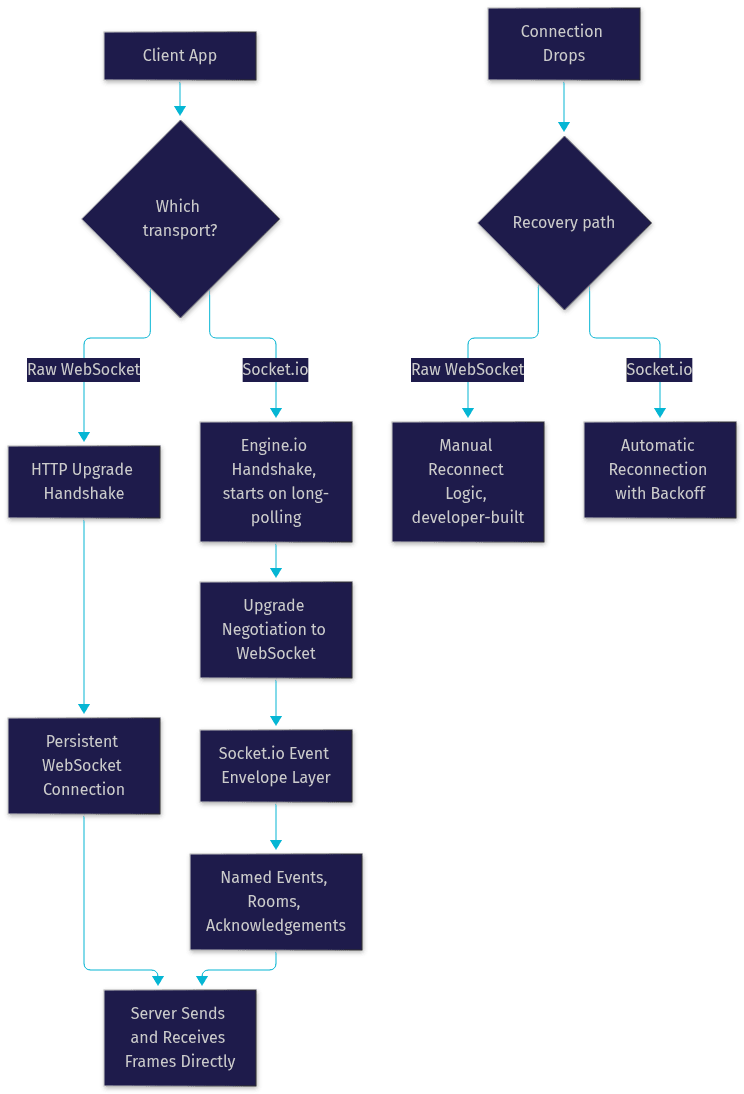

Socket.IO vs. WebSocket: A Detailed Comparison

Performance Comparison

Scalability Comparison

Feature Comparison

• Automatic reconnections: Socket.IO automatically attempts to reconnect to the server if the connection is lost, improving user experience.
• Error Handling: Socket.IO provides mechanisms for detecting and handling errors, simplifying error management.
• Broadcasting: Socket.IO makes it easy to broadcast messages to all connected clients or specific groups (rooms).

1sequenceDiagram
2    participant Client
3    participant Socket.IO Client
4    participant Socket.IO Server
5    participant WebSocket Server
6
7    Client->>Socket.IO Client: Establishes Connection
8    Socket.IO Client->>Socket.IO Server: Attempts WebSocket Connection
9    alt WebSocket Supported
10        Socket.IO Server-->>Socket.IO Client: WebSocket Connection Established
11        Socket.IO Client->>WebSocket Server: Sends Real-time Data
12        WebSocket Server-->>Socket.IO Client: Receives Real-time Data
13    else WebSocket Not Supported
14        Socket.IO Server-->>Socket.IO Client: Falls back to Long Polling
15        Socket.IO Client->>Socket.IO Server: Sends Request
16        Socket.IO Server-->>Socket.IO Client: Sends Response with Data
17        Socket.IO Client->>Socket.IO Server: Sends New Request
18    end
19
20    Socket.IO Client-->>Client: Updates UI
21

Use Cases for Socket.IO and WebSocket

Ideal Scenarios for WebSocket

• High-performance applications (e.g., financial trading, live data streaming): Where minimal latency and maximum throughput are critical.
• Applications requiring minimal overhead: When resource usage needs to be kept to an absolute minimum.
• Applications where precise control over the connection is needed: For developers who require fine-grained control over the communication protocol.

Ideal Scenarios for Socket.IO

• Chat applications: The ease of use and built-in features of Socket.IO make it a great choice for chat applications.
• Real-time collaboration tools: The event-driven API and broadcasting capabilities simplify the development of collaborative applications.
• Applications requiring simplified development: Socket.IO's abstraction reduces the complexity of real-time development.

Choosing Between Socket.IO and WebSocket

Security Considerations for Real-time Applications

Securing WebSocket Connections

• Use WSS (WebSocket Secure): Encrypt communication using TLS/SSL.
• Implement authentication and authorization: Verify the identity of clients and control access to resources.
• Validate and sanitize input: Prevent injection attacks by validating all data received from clients.
• Implement rate limiting: Protect against denial-of-service attacks.

Securing Socket.IO Connections

• Use HTTPS: Encrypt the initial handshake and all subsequent communication.
• Implement authentication and authorization: Use Socket.IO's middleware to authenticate users.
• Validate and sanitize input: Prevent injection attacks by validating all data received from clients.
• Limit event access: Control which events clients are allowed to emit and listen to.

Conclusion: Making the Right Choice

• Learn more about

  WebSockets

  :

  Mozilla Developer Network's WebSocket documentation

• Socket.IO Documentation:

  Official Socket.IO documentation

• Understanding Real-Time Communication: A comprehensive guide to various real-time technologies.

  Pusher's Realtime Technology Guide
