A WebRTC Data Channel is a peer-to-peer message transport built into the browser's RTCPeerConnection, carrying arbitrary data over an encrypted SCTP-over-DTLS tunnel with sub-100ms latency. Unlike WebSocket, it connects two browsers directly with no server in the media path, and it lets you tune reliability per channel. VideoSDK exposes the same real-time transport through its video calling SDK, so the concepts here apply directly to production RTC apps.
Most developers meet WebRTC through video calling and never realize the same connection carries a second, equally powerful capability: arbitrary data transfer between peers. The WebRTC Data Channel is that capability. It powers in-call chat, multiplayer game state, file sharing, whiteboard strokes, and sensor streams, all over the same peer connection that carries audio and video.
What makes the Data Channel tricky is not the API surface, which is small. It is the stack underneath it: UDP, ICE, DTLS, and SCTP each make decisions that affect latency, reliability, and cost. Get those decisions right and a Data Channel feels instant. Get them wrong and you ship a chat system that drops messages or a game that stutters.
This guide walks through the full picture without a single line of code: the protocol layers, the two negotiation models, the four reliability modes, back-pressure handling, security guarantees, real-world use cases, and the production concerns that separate a demo from a deployed system.
What Is a WebRTC Data Channel?
A WebRTC Data Channel is defined as a bidirectional message pipe between two peers, created inside an existing RTCPeerConnection and exposed to developers through the RTCDataChannel interface. It works by multiplexing data messages onto the same encrypted transport that carries audio and video, so once the peer connection is established, opening a channel costs almost nothing in setup time.
Each channel behaves like a dedicated pipe with its own configuration. You can create many channels on one connection, each with different reliability and ordering guarantees. That is the key differentiator from WebSocket: a WebSocket gives you one reliable, ordered stream, while WebRTC Data Channels let you mix a reliable channel for chat and an unreliable channel for live game position updates on the same connection.
Channels also support large messages (the specification allows payloads far beyond typical WebSocket frame limits, though implementations vary), and because the path is direct peer-to-peer, latency is typically lower than any server-relayed alternative. For a deeper grounding in the overall WebRTC model, the W3C WebRTC specification is the authoritative reference.
The Protocol Stack Behind a WebRTC Data Channel

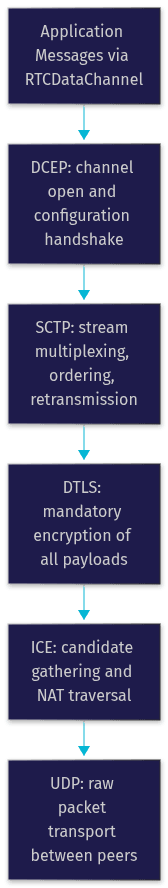

Every WebRTC Data Channel message travels through five stacked layers, and each layer answers a different question: how packets move, how peers find each other, how traffic is encrypted, how streams are multiplexed, and how channels are opened. Understanding this stack is what separates developers who debug Data Channel problems from developers who guess.
UDP and ICE
At the bottom, WebRTC uses UDP as its packet transport. UDP is fire-and-forget: no delivery guarantee, no ordering, no connection state. That is a feature here, because it means latency stays low and the layers above decide what reliability actually means. ICE (Interactive Connectivity Establishment) sits above UDP and solves the hardest practical problem: finding a usable network path between two peers that may be behind NATs or firewalls. ICE gathers candidate addresses (local, STUN-derived public, and TURN-relayed), tests them in priority order, and nominates the best working pair. If no direct path exists, ICE falls back to a TURN relay, which works but adds latency and server cost.
DTLS Encryption
Every Data Channel message is encrypted with DTLS, the datagram variant of TLS. This is not optional: browsers refuse to establish a WebRTC connection without a successful DTLS handshake, and the handshake includes certificate fingerprint verification exchanged through your signaling layer. The result is that peer-to-peer data is protected against passive eavesdropping and, when fingerprints are properly verified, against man-in-the-middle attacks.
SCTP and DCEP
SCTP (Stream Control Transmission Protocol) runs over DTLS and provides the machinery the Data Channel API exposes: multiple independent streams, per-stream ordering, and configurable retransmission. DCEP (Data Channel Establishment Protocol) is the small handshake that opens each channel, exchanging its label, reliability settings, and stream identifier between peers before messages flow.
Creating a Data Channel: Negotiation Models

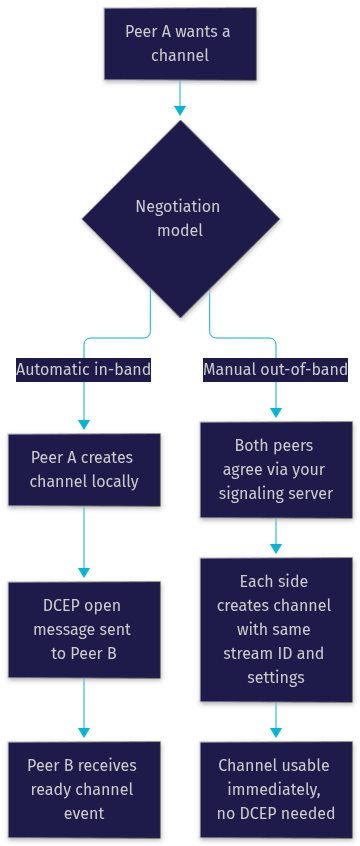

There are two ways to bring a Data Channel into existence, and the choice affects control, compatibility, and how much signaling work you own. Both models end at the same place: two peers with a matching SCTP stream. They differ in who declares the channel and how the parameters travel.
Automatic (in-band) negotiation
With automatic negotiation, one peer creates the channel through the standard creation call, and the browser handles the rest. The DCEP handshake announces the channel to the other side, which receives it as a ready-to-use channel event with the label and reliability settings intact. This is the model to default to: it is simple, the browser guarantees both sides agree on parameters, and it works even when the remote peer is a browser you do not control. The trade-off is that only the creating side picks the configuration, and the channel cannot be used until the DCEP exchange completes, which adds a small round-trip after the peer connection is up.
Manual (out-of-band) negotiation
With manual negotiation, both peers create the channel independently, agreeing in advance (through your own signaling channel) on the stream identifier, label, and reliability settings. Because both sides already know the parameters, no DCEP exchange is needed and the channel is usable the instant the SCTP association is ready. This matters for latency-critical startup, such as sending game state in the first moments of a session, and it is the only practical model when interoperating with non-browser SCTP endpoints. The cost is responsibility: if the two sides disagree on the stream ID or settings, the channel silently misbehaves, so your signaling protocol must carry those parameters explicitly and version them carefully.
Configuring Reliability and Ordering on a WebRTC Data Channel
Reliability configuration is where the WebRTC Data Channel earns its keep over simpler transports. Each channel is created with a combination of ordering and retransmission settings, producing four practical delivery modes. Choosing correctly is the difference between a chat app that never drops a message and a game that never lags.
Reliable and Ordered
This is the default mode and behaves like TCP or WebSocket: messages arrive exactly once, in order. Use it for chat, collaborative document edits, and anything where dropping or reordering a message corrupts application state. The trade-off is head-of-line blocking: if message five is lost, messages six and seven wait for its retransmission even if they were delivered fine.
Reliable and Unordered
Dropping the ordering requirement while keeping delivery guarantees suits parallel independent transfers, such as sending multiple file chunks where each chunk is self-describing. No chunk waits behind a lost sibling, so total throughput improves on lossy links. Most chat and state-sync use cases do not need this, but bulk transfer does.
Partial-Reliable (maxRetransmits / maxPacketLifeTime)
Partial reliability is the mode most transports cannot offer. You cap retransmission either by attempt count (maxRetransmits) or by a time budget (maxPacketLifeTime). Once the cap is hit, the message is abandoned and the receiver moves on. This is ideal for data whose value decays: live captions, telemetry snapshots, or position updates where an old message is worse than no message. A common pattern is a one-second lifetime limit, meaning the peer either gets the update within a second or the app sends a fresher one anyway.
Unreliable and Unordered
Fully unreliable mode sends each message once and never retries, mirroring raw UDP semantics with encryption attached. Real-time game state is the canonical use case: 20 position updates per second where only the latest matters, and retransmitting a stale position would actively hurt. Sensor streams and heartbeat-style presence pings also fit here.
Managing Back-Pressure and Buffering
Every Data Channel has an outgoing buffer, and the single most common production failure is ignoring it. The bufferedAmount property reports how many bytes are queued but not yet handed to the transport. If you keep sending faster than the link drains, the buffer grows without bound, memory climbs, and latency inflates because your freshest message sits behind a queue of stale ones.
Flow control works like this: before sending, check the buffered amount against a ceiling you choose based on message size and acceptable delay. If the buffer is full, stop sending and queue at the application layer, where you can drop stale messages instead of letting the transport hold them. The bufferedAmountLowThreshold property sets a watermark: when the buffer drains below it, the browser fires a drain event, telling your app it is safe to resume. This threshold-and-resume loop is the entire back-pressure story, and it is essential for file transfer and any high-frequency send loop.
A practical rule from deployed systems: for state streams, prefer dropping the newest send over buffering it, and reserve buffering only for data that must eventually arrive. For a full worked example of this pattern in a real-time app context, VideoSDK's code samples include messaging implementations that handle exactly this class of flow control.
Security Guarantees of the WebRTC Data Channel
Security in a Data Channel is not a configuration choice, it is a structural property. DTLS encrypts every SCTP packet before it touches the network, so there is no plaintext mode, no opt-out, and no way to accidentally ship an unencrypted channel. Keys are negotiated per connection and never leave the peers.
The one place applications can get it wrong is signaling. The DTLS certificates are verified against fingerprints exchanged through your signaling server, so if your signaling channel is plain HTTP or an unauthenticated WebSocket, an attacker who controls that path can substitute fingerprints and impersonate a peer. Always run signaling over HTTPS with proper authentication. Beyond transport security, remember that the browser sandbox does not validate what your application sends: sanitize anything a peer sends before rendering it as HTML, the same as you would for any user input.
Real-World Use Cases for WebRTC Data Channels
The use cases cluster into five patterns, each with a natural reliability and negotiation fit.
In-call chat and signaling. Chat rides a reliable, ordered channel created with automatic negotiation. Messages are small, must never drop, and ordering preserves conversation readability. In products like VideoSDK-based calling apps, chat, polls, and Q&A run alongside media on the same connection, as described in the VideoSDK React SDK guide.
Multiplayer games. Game state uses unreliable, unordered channels, often created with manual negotiation so the channel is usable the instant the connection opens. Reliable channels carry join/leave and scoring events alongside the fire-and-forget position stream.
File sharing. Large transfers use reliable channels with aggressive back-pressure management, chunking files into moderate-size messages and respecting the buffered amount. Reliable-unordered works well when chunks are independently addressable.
Sensor and IoT streams. High-frequency telemetry fits partial reliability with a short lifetime cap, so a delayed reading is dropped rather than delivered stale. VideoSDK's IoT SDK support extends this pattern to devices without a browser.
Collaborative apps. Whiteboards and co-editing tools send stroke and operation events on reliable ordered channels, with manual negotiation when both peers are known participants in a session managed by your own signaling.
Production-Ready Considerations for WebRTC Data Channels
Shipping a Data Channel feature beyond localhost changes the problem set. First, signaling: WebRTC deliberately leaves signaling undefined, so you must build or adopt a channel (WebSocket is the usual choice) for offer/answer exchange and, if you use manual negotiation, channel parameters. Second, NAT traversal: a meaningful fraction of real-world connections, commonly estimated at roughly 10 to 20 percent depending on network population, cannot find a direct path and will need a TURN relay. TURN bandwidth is the dominant infrastructure cost in peer-to-peer deployments, so monitor relay usage closely.
Third, topology: Data Channels are strictly peer-to-peer, so a multi-party session is a mesh of connections, each with its own ICE state and buffer. Mesh works to roughly half a dozen participants; beyond that, route data through a central peer or a server-side SFU, which is exactly the architecture VideoSDK uses for its rooms. Fourth, monitoring: track round-trip time, packet loss, buffer levels, and ICE state transitions per connection, because silent channel death after a network switch is the most common field failure. Finally, handle reconnection deliberately: when a peer's network changes, the connection can drop and re-establish, and your app should re-create channels and replay any state the new connection needs.
Quick Recap and Decision Guide

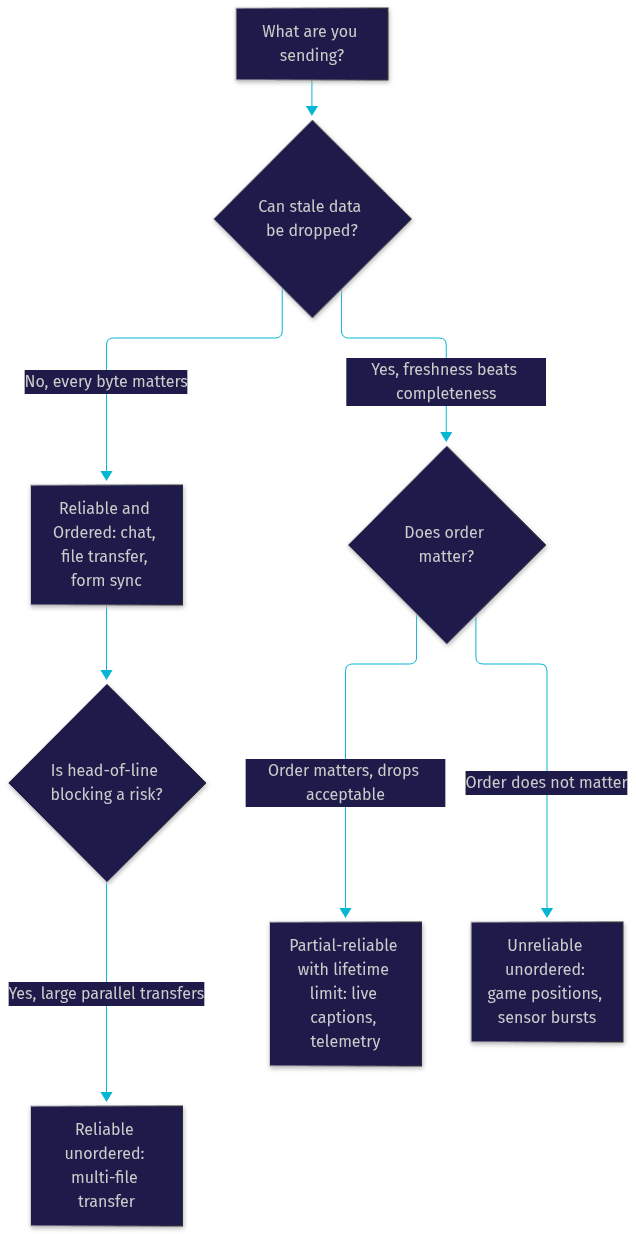

The core decisions reduce to two axes, and you can make them with this matrix:
| Scenario | Negotiation | Reliability mode |
|---|---|---|
| Chat, forms, document sync | Automatic | Reliable, ordered |
| File transfer | Automatic | Reliable, ordered or unordered with back-pressure |
| Game position, presence | Manual | Unreliable, unordered |
| Live captions, telemetry | Automatic | Partial-reliable, short lifetime cap |
| Interop with non-browser SCTP | Manual | Match the endpoint's settings |
- Every message is DTLS-encrypted by default; there is no insecure mode.
- bufferedAmount and its low threshold are your only back-pressure tools; use them or risk unbounded memory growth.
- Manual negotiation buys instant channel availability at the cost of owning parameter agreement in signaling.
- Roughly one in ten real connections needs TURN; budget for it.
Definitions Glossary
WebRTC Data Channel (RTCDataChannel): A bidirectional, configurable message pipe between two peers, multiplexed onto an RTCPeerConnection alongside audio and video, with per-channel reliability and ordering settings.
SCTP: The Stream Control Transmission Protocol running over DTLS inside WebRTC, providing multiple independent streams, per-stream ordering, and the retransmission machinery behind partial reliability.
DTLS: Datagram Transport Layer Security, the mandatory encryption layer that protects every WebRTC Data Channel packet, verified through certificate fingerprints exchanged during signaling.
ICE: Interactive Connectivity Establishment, the framework that gathers candidate addresses and finds a working network path between peers, falling back to a TURN relay when no direct path exists.
bufferedAmount: A property reporting bytes queued for sending but not yet handed to the transport, the primary signal for implementing flow control and avoiding unbounded memory growth.
DCEP: The Data Channel Establishment Protocol, the in-band handshake that opens automatically negotiated channels by exchanging labels and reliability settings between peers.
Key Takeaways
- A WebRTC Data Channel gives you per-channel control over reliability and ordering, something neither WebSocket nor SSE offers, making it the right transport for latency-sensitive peer-to-peer data.
- The protocol stack (UDP, ICE, DTLS, SCTP, DCEP) each solves a distinct problem, and understanding the layers is what makes debugging and tuning possible.
- Choose automatic negotiation by default, and manual negotiation only when you need instant channel availability or non-browser interoperability.
- Match reliability mode to data semantics: reliable for state that must arrive, partial-reliable for decaying value, unreliable for freshest-wins streams.
- Production success depends on signaling security, TURN cost budgeting, mesh topology limits, and disciplined back-pressure handling via bufferedAmount.
Conclusion
The WebRTC Data Channel is the most flexible real-time data transport available in the browser: encrypted by default, tunable per channel, and capable of everything from chat to file transfer to game state on a single peer connection. The decisions that matter are negotiation model, reliability mode, and back-pressure discipline, and this guide gives you the framework for all three. If you would rather not assemble the signaling, TURN infrastructure, and reconnection logic yourself, VideoSDK's real-time communication SDKs handle the transport layer so you can focus on your application, with a free tier to start on app.videosdk.live. What are you building with WebRTC Data Channels? Drop a comment, I'd love to hear what kind of peer-to-peer use case you're working on.
Handling Data Channel Events (open, message, close, error)
It's crucial to handle the data channel events to manage the connection lifecycle and data flow. The main events are
open, message, close, and error.javascript
1dataChannel.onopen = () => {
2 console.log("Data channel opened!");
3};
4
5dataChannel.onmessage = (event) => {
6 console.log("Received message: ", event.data);
7};
8
9dataChannel.onclose = () => {
10 console.log("Data channel closed!");
11};
12
13dataChannel.onerror = (error) => {
14 console.error("Data channel error: ", error);
15};Configuring Data Channel Options (Ordered, Max Packet Lifetime, etc.)
You can configure various options when creating a data channel, such as
ordered, maxPacketLifeTime, and maxRetransmits, to control the reliability and delivery of data.javascript
1const peerConnection = new RTCPeerConnection();
2const dataChannel = peerConnection.createDataChannel("myDataChannel", {
3 ordered: false, // Allow out-of-order delivery for lower latency
4 maxPacketLifeTime: 3000, // Maximum time (in milliseconds) to retransmit a packet
5 maxRetransmits: 0 // Disable retransmissions
6});Sending and Receiving Data
Once the data channel is open, you can send and receive data using the
send() method and the onmessage event, respectively.Sending Data: send() method
The
send() method is used to send data through the data channel. You can send both text and binary data.javascript
1// Sending text data
2dataChannel.send("Hello, WebRTC data channel!");
3
4// Sending binary data (ArrayBuffer)
5const buffer = new ArrayBuffer(16);
6const view = new DataView(buffer);
7view.setInt32(0, 42);
8dataChannel.send(buffer);Receiving Data: onmessage event
The
onmessage event is triggered when data is received through the data channel. The received data is available in the event.data property.javascript
1dataChannel.onmessage = (event) => {
2 if (typeof event.data === 'string') {
3 console.log("Received string: ", event.data);
4 } else if (event.data instanceof ArrayBuffer) {
5 const view = new DataView(event.data);
6 const value = view.getInt32(0);
7 console.log("Received ArrayBuffer: ", value);
8 }
9};Handling Different Data Types (Text, Binary)
WebRTC data channels support both text (strings) and binary data (ArrayBuffer, Blob, etc.). You need to handle these different data types appropriately in your
onmessage event handler.Data Channel Reliability and Ordering
WebRTC data channels offer both reliable and unreliable delivery modes, with options for ordered or unordered delivery. Understanding these options is critical for optimizing performance and meeting the specific requirements of your application.
Reliable vs. Unreliable Channels
- Reliable channels: Guarantee that data is delivered in the order it was sent and that no data is lost. This is achieved through retransmissions and error correction mechanisms.
- Unreliable channels: Do not guarantee delivery or order. Data may be lost or arrive out of order. This mode offers lower latency and is suitable for applications where some data loss is acceptable.
Choosing the Right Reliability Mode for Your Application
The choice between reliable and unreliable channels depends on the specific requirements of your application. For applications requiring data integrity, such as file transfer or critical messaging, reliable channels are essential. For real-time applications where low latency is paramount, such as gaming or live video streaming, unreliable channels may be more appropriate.
Impact of Reliability on Performance
Reliable channels have higher overhead due to retransmissions and error correction, which can increase latency and reduce throughput. Unreliable channels, on the other hand, offer lower latency and higher throughput but at the cost of potential data loss.
Signaling and Negotiation
Signaling is the process of exchanging metadata between peers to establish a WebRTC connection. This involves negotiating the data channel configuration, network information, and media capabilities. Signaling happens outside of WebRTC, using a separate channel like WebSockets.
The Role of Signaling in WebRTC
Signaling is essential for setting up the peer-to-peer connection. It allows the peers to discover each other, exchange information about their capabilities, and negotiate the parameters of the data channel. Without signaling, the peers would not be able to establish a connection.
Signaling Protocols (e.g., WebSockets, Socket.IO)
Various signaling protocols can be used with WebRTC, including WebSockets, Socket.IO, and HTTP. WebSockets are a popular choice due to their full-duplex communication capabilities, allowing for real-time exchange of signaling messages. Socket.IO builds upon WebSockets and provides higher-level abstractions.
Implementing Basic Signaling with WebSockets
Here's an example of basic signaling using WebSockets in JavaScript:
javascript
1const websocket = new WebSocket('wss://example.com/signaling');
2
3websocket.onopen = () => {
4 console.log('Connected to signaling server');
5};
6
7websocket.onmessage = (event) => {
8 const message = JSON.parse(event.data);
9 // Handle signaling messages (offer, answer, ICE candidates)
10 console.log('Received signaling message:', message);
11};
12
13function sendSignalingMessage(message) {
14 websocket.send(JSON.stringify(message));
15}Security Considerations
Security is paramount when using WebRTC data channels. Data transmitted through these channels is susceptible to eavesdropping and tampering if not properly secured.
DTLS Encryption and Data Protection
WebRTC data channels use DTLS (Datagram Transport Layer Security) encryption to protect data in transit. DTLS provides confidentiality and integrity, ensuring that only the intended recipient can access the data and that the data has not been tampered with.
Preventing Data Tampering and Eavesdropping
To further enhance security, it is crucial to verify the identity of the peers involved in the communication. This can be achieved through certificate pinning or other authentication mechanisms. Always ensure your signaling channel is also secure (e.g., using WSS for WebSockets).
Best Practices for Secure Data Channel Usage
- Use DTLS encryption: Ensure that DTLS is enabled for all data channels.
- Verify peer identities: Implement authentication mechanisms to verify the identity of the peers.
- Secure signaling channel: Protect the signaling channel using TLS/SSL encryption.
- Regularly update WebRTC library: Keep the WebRTC library up-to-date to address any known security vulnerabilities.
Advanced Techniques
Beyond the basic setup and usage, several advanced techniques can enhance the functionality and performance of WebRTC data channels.
Handling Errors and Disconnections
Proper error handling is essential for a robust WebRTC application. You should handle potential errors during data channel establishment, data transfer, and disconnection.
javascript
1dataChannel.onerror = (error) => {
2 console.error("Data channel error: ", error);
3 // Handle the error (e.g., retry connection, display error message)
4};
5
6peerConnection.onconnectionstatechange = () => {
7 if (peerConnection.connectionState === 'disconnected' || peerConnection.connectionState === 'failed') {
8 console.log("Peer connection disconnected or failed");
9 // Handle the disconnection (e.g., attempt to reconnect)
10 }
11};Optimizing Data Channel Performance
Several techniques can be used to optimize data channel performance, including:
- Adjusting reliability settings: Choosing the appropriate reliability mode based on the application's requirements.
- Using compression: Compressing data before sending it through the data channel.
- Reducing packet size: Breaking large data into smaller packets to reduce latency.
Implementing Flow Control and Backpressure
Flow control and backpressure mechanisms can prevent data overload and ensure smooth data transfer. This can be achieved by monitoring the data channel's buffered amount and adjusting the sending rate accordingly.
WebRTC Data Channels vs. WebSockets
Both WebRTC data channels and WebSockets provide real-time communication capabilities, but they differ in their underlying architecture and use cases.
Comparing Features and Performance
| Feature | WebRTC Data Channels | WebSockets |
|---|---|---|
| Architecture | Peer-to-peer | Client-server |
| Latency | Lower (direct connection) | Higher (relies on server) |
| Reliability | Configurable (reliable or unreliable) | Reliable (TCP-based) |
| Security | Built-in DTLS encryption | Requires TLS/SSL encryption |
| Complexity | More complex setup | Simpler setup |
| NAT Traversal | Built-in NAT traversal mechanisms | Requires STUN/TURN servers |
Choosing the Right Technology for Your Needs
The choice between WebRTC data channels and WebSockets depends on the specific requirements of your application. WebRTC data channels are better suited for peer-to-peer applications requiring low latency and configurable reliability, while WebSockets are a good choice for client-server applications where simplicity and reliability are paramount.
When to Use WebRTC Data Channels vs. WebSockets
- WebRTC data channels: Peer-to-peer applications, real-time gaming, collaborative editing, file transfer.
- WebSockets: Client-server applications, chat applications, real-time dashboards, streaming data updates.
Real-World Applications and Examples
WebRTC data channels are used in a wide range of real-world applications, demonstrating their versatility and power.
Collaborative Editing Tools
Many collaborative editing tools leverage WebRTC data channels to enable real-time synchronization of changes between multiple users. This allows users to simultaneously edit documents, code, or other content with minimal delay.
Real-Time Gaming
WebRTC data channels are ideal for real-time gaming applications, providing low-latency communication between players. This enables smooth and responsive gameplay, even in fast-paced action games.
Peer-to-Peer File Transfer
WebRTC data channels can be used to implement peer-to-peer file transfer applications, allowing users to directly share files with each other without relying on a central server. This can significantly improve transfer speeds and reduce server load.
Remote Control Applications
Remote control applications can use WebRTC data channels to transmit control signals and receive feedback from the remote device in real-time. This enables responsive and accurate remote control, even over long distances.
Conclusion
Summary of Key Concepts
WebRTC data channels provide a powerful and flexible mechanism for peer-to-peer data transfer, offering configurable reliability, built-in security, and low-latency communication. By understanding the key concepts and techniques discussed in this guide, developers can leverage WebRTC data channels to build innovative and engaging real-time applications.
Future Trends and Developments
The future of WebRTC data channels looks promising, with ongoing developments focused on improving performance, security, and scalability. As WebRTC continues to evolve, data channels will play an increasingly important role in enabling real-time communication and collaboration across the web.
Free $20 Balance for AI Voice Agents & Video Calls
FAQ
