Video Call UI Design: The Ultimate Guide for Developers

The Ultimate Guide to Video Call UI Design

Introduction: Understanding the Importance of Video Call UI

What is Video Call UI?

Why is Good Video Call UI Crucial?

• Improved User Experience: A clear and intuitive UI makes it easy for users to navigate the application and perform necessary actions without frustration.
• Enhanced Collaboration: By providing easy access to features like screen sharing and chat, a good UI facilitates collaboration and teamwork.
• Increased Productivity: An efficient UI minimizes distractions and allows users to focus on the content of the video call, leading to increased productivity.
• Accessibility: A well-designed video call UI considers accessibility needs, ensuring that people with disabilities can participate fully.
• Professionalism: A polished and modern UI can enhance the perception of professionalism, especially for business-related video calls.

The Evolution of Video Call UI

Analyzing Top Performing Video Call UIs

Top 10 Google Search Results Analysis

• Simplicity: Leading platforms prioritize a clean and uncluttered interface, making it easy for users to find the features they need.
• Accessibility: Accessibility is considered, with features such as keyboard navigation and screen reader compatibility.
• Intuitive Controls: Controls for muting/unmuting audio, turning the camera on/off, and sharing the screen are prominently displayed and easy to use.
• Grid View: The grid view layout, which allows users to see multiple participants simultaneously, is a standard feature.
• Customization: Many platforms offer customization options, such as the ability to change the background or adjust the video quality.

Key Design Elements Across Leading Platforms

• Prominent Video Display: The video feed is the central focus of the UI.
• Clearly Labeled Icons: Icons are used to represent common actions, with labels to ensure clarity.
• Contextual Menus: Right-click menus provide access to additional options and settings.
• Notifications: Visual and audio notifications alert users to important events, such as incoming chat messages or participant requests.

Identifying Trends and Best Practices

• User-Centered Design: Focusing on the needs and preferences of users.
• Mobile-First Approach: Designing for mobile devices first and then adapting to desktop.
• Accessibility Considerations: Ensuring that the UI is accessible to all users.
• Minimalist Design: Avoiding clutter and focusing on essential features.
• Consistent Branding: Maintaining a consistent visual identity across all platforms.

Core Components of a Successful Video Call UI

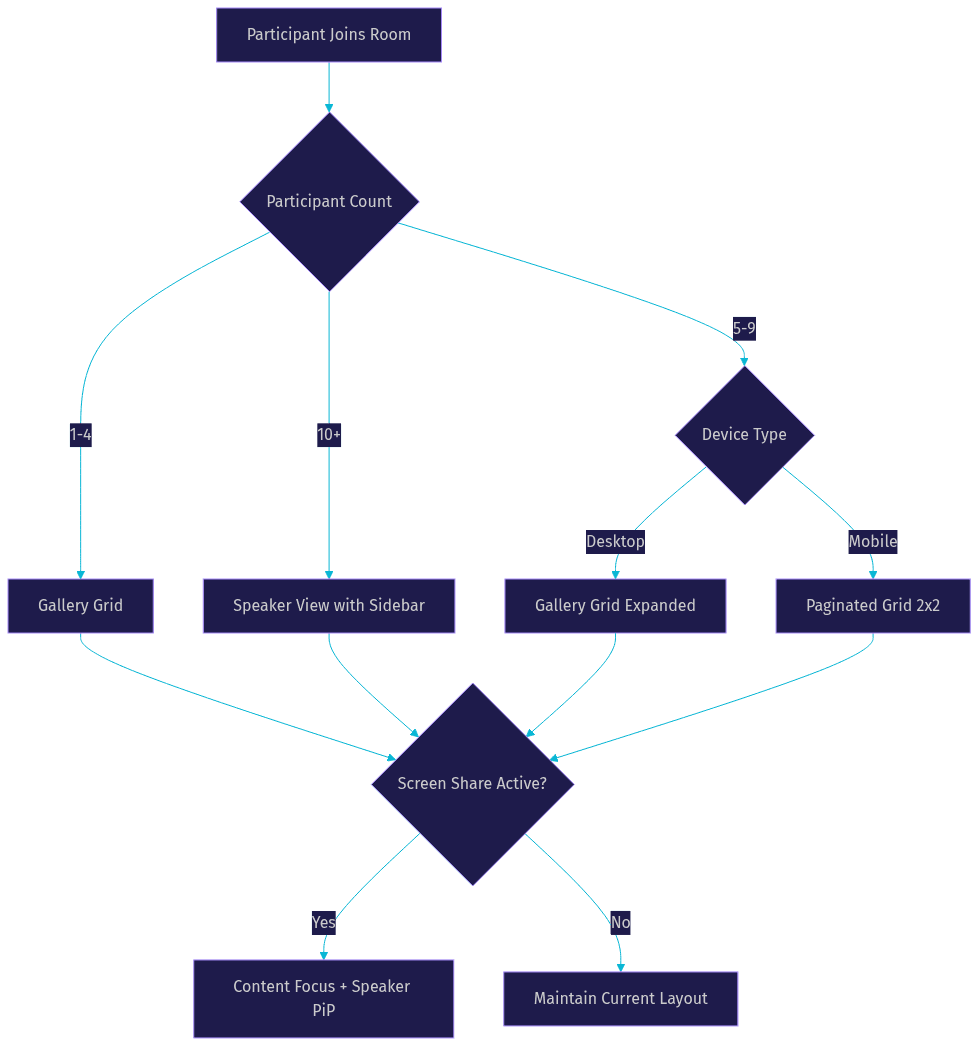

Video Display and Layout

• Grid View: Displays multiple participants simultaneously in a grid.
• Single View: Displays the active speaker or a specific participant.
• Speaker View: Automatically switches the video feed to the current speaker.
• Picture-in-Picture (PIP): Displays a small video feed of the user in a corner of the screen.

Participant Management

• Adding Participants: Inviting new participants via email or link.
• Removing Participants: Kicking out disruptive participants.
• Muting/Unmuting Participants: Controlling audio input.
• Granting Permissions: Allowing participants to share their screen or record the call.

Audio and Video Controls

• Muting/Unmuting Audio: Turning the microphone on or off.
• Camera On/Off: Enabling or disabling the camera.
• Volume Control: Adjusting the audio output volume.
• Microphone Selection: Choosing the audio input device.
• Camera Selection: Choosing the video input device.

Chat Functionality

• Text Chat: Sending and receiving text messages.
• File Sharing: Sharing files with other participants.
• Emoji Support: Using emojis to express emotions.
• Private Messaging: Sending private messages to individual participants.

Screen Sharing Capabilities

• Full Screen Sharing: Sharing the entire screen.
• Application Window Sharing: Sharing a specific application window.
• Annotation Tools: Allowing participants to annotate the shared screen.

Recording and Playback Options

• Recording Start/Stop: Starting and stopping the recording.
• Playback Controls: Playing back the recorded video.
• Download Options: Downloading the recorded video.

User Profile and Settings

• Profile Information: Displaying the user's name, profile picture, and other information.
• Audio/Video Settings: Configuring audio and video devices.
• Notification Settings: Customizing notification preferences.
• Accessibility Settings: Configuring accessibility options.

Designing an Effective Video Call UI

User Research and Persona Development

• Surveys: Gathering quantitative data about user preferences.
• Interviews: Conducting qualitative interviews to understand user needs and pain points.
• Usability Testing: Observing users interacting with existing video call UIs.

Wireframing and Prototyping

UI Design Principles for Video Calls

• Accessibility: Ensure that the UI is accessible to all users, including those with disabilities. Follow WCAG guidelines for web accessibility.
• Intuitiveness: Design the UI to be intuitive and easy to use, even for first-time users. Use clear and concise labels and instructions.
• Visual Clarity: Use a clean and uncluttered design that is easy to read and understand. Use appropriate color contrast and typography.

Choosing the Right Color Palette and Typography

Interaction Design and User Flows

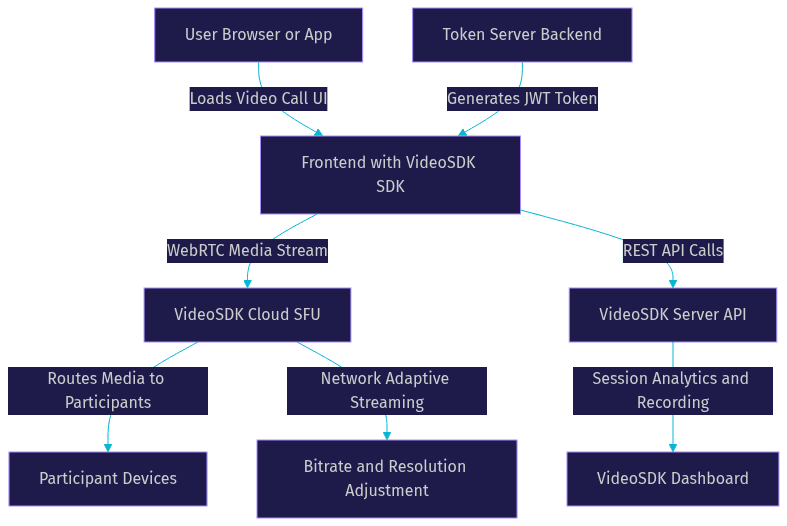

Building a Video Call UI: Technologies and Frameworks

Choosing a Tech Stack

• WebRTC: A free and open-source project that provides real-time communication capabilities.
• React: A JavaScript library for building user interfaces.
• Angular: A JavaScript framework for building web applications.
• Vue.js: A progressive JavaScript framework for building user interfaces.
• Node.js: A JavaScript runtime environment for building server-side applications.
• Socket.IO: A library for enabling real-time, bidirectional communication between web clients and servers.

1// Get user media (audio and video)
2navigator.mediaDevices.getUserMedia({ video: true, audio: true })
3  .then(stream => {
4    // Create a new RTCPeerConnection
5    const peerConnection = new RTCPeerConnection();
6
7    // Add the stream to the peer connection
8    stream.getTracks().forEach(track => peerConnection.addTrack(track, stream));
9
10    // Handle ICE candidates
11    peerConnection.onicecandidate = event => {
12      if (event.candidate) {
13        // Send the candidate to the other peer
14        // (e.g., via signaling server)
15        console.log('ICE candidate:', event.candidate);
16      }
17    };
18
19    // Handle remote stream
20    peerConnection.ontrack = event => {
21      const remoteStream = event.streams[0];
22      // Display the remote stream in a video element
23      const remoteVideo = document.getElementById('remoteVideo');
24      remoteVideo.srcObject = remoteStream;
25    };
26
27    // Create an offer
28    peerConnection.createOffer()
29      .then(offer => peerConnection.setLocalDescription(offer))
30      .then(() => {
31        // Send the offer to the other peer
32        // (e.g., via signaling server)
33        console.log('Offer:', peerConnection.localDescription);
34      });
35  })
36  .catch(error => {
37    console.error('Error getting user media:', error);
38  });
39

Front-end Development Considerations

• Responsive Design: Ensure that the UI is responsive and adapts to different screen sizes and devices.
• Cross-Browser Compatibility: Test the UI in different browsers to ensure compatibility.
• Performance Optimization: Optimize the UI for performance to minimize latency and ensure a smooth user experience.

1import React from 'react';
2
3function VideoTile({ stream }) {
4  return (
5    <video autoPlay muted={false} srcObject={stream} style={{ width: '200px', height: '150px' }} />
6  );
7}
8
9export default VideoTile;
10

Back-end Development Considerations

• Server Infrastructure: Choose a server infrastructure that can handle the load of multiple concurrent video calls.
• Signaling: Implement a signaling server to facilitate the exchange of information between peers.
• Scalability: Design the back-end to be scalable to accommodate future growth.

1const io = require('socket.io')(3000, {
2  cors: { origin: "*", methods: ["GET", "POST"] }
3});
4
5io.on('connection', socket => {
6  console.log('User connected:', socket.id);
7
8  socket.on('join-room', (roomId, userId) => {
9    socket.join(roomId);
10    socket.to(roomId).emit('user-connected', userId);
11
12    socket.on('disconnect', () => {
13      socket.to(roomId).emit('user-disconnected', userId);
14    });
15  });
16});
17

Testing and Iterating Your Video Call UI

Usability Testing Methods

• Think-Aloud Protocol: Asking users to verbalize their thoughts as they interact with the UI.
• Eye Tracking: Tracking the user's eye movements to see where they are looking on the screen.
• A/B Testing: Comparing two different versions of the UI to see which performs better.

Gathering User Feedback

Iterative Design Process

Future Trends in Video Call UI Design

AI-Powered Features

• Real-time Translation: Automatically translating speech into different languages.
• Background Blur Enhancements: Blurring or replacing the background to protect privacy.
• Noise Cancellation: Reducing background noise to improve audio quality.
• Automated Meeting Summaries: Automatically generating summaries of meeting discussions.

Immersive Experiences

• Virtual Meeting Rooms: Creating virtual meeting rooms that simulate a real-world meeting environment.
• 3D Avatars: Using 3D avatars to represent participants in the virtual meeting room.

Enhanced Accessibility

• Live Captioning: Providing real-time captions of the audio.
• Sign Language Interpretation: Providing sign language interpretation for deaf or hard-of-hearing users.
• Customizable Font Sizes and Colors: Allowing users to customize the font size and colors to improve readability.
