VoIP push notifications are high-priority background signals used to wake dormant voice-over-IP applications so they can receive incoming calls. Unlike standard push notifications, they bypass doze modes and force the app to re-establish its SIP connection. Developers building real-time communication apps rely on this mechanism to preserve battery life while maintaining instant reachability, often integrating it with platforms like VideoSDK for seamless session management.
Building a voice or video calling app that stays reachable without draining your users' batteries is one of the hardest challenges in mobile development. If you keep a persistent socket open to your SIP server, the cellular radio stays active and battery life plummets. If you close the socket to save power, incoming calls fail because the server cannot reach the client. Developers search for "voip push notifications" because this mechanism solves both problems. It allows the app to sleep while providing a reliable, high-priority wake-up signal when a call arrives. By the end of this guide, you will understand the architecture, platform-specific requirements, and server-side logic needed to implement a robust push strategy for your real-time communication app.
What Are VoIP Push Notifications?
VoIP push notifications are defined as specialized, high-priority alert messages sent from a server to a mobile device to wake up a voice-over-IP application running in the background. They differ from standard push notifications, which typically display a visible alert to the user. A VoIP push operates silently, instructing the operating system to launch the app or bring it to the foreground so it can process an incoming call.
VoIP push notifications work by leveraging platform-specific infrastructure, namely Apple Push Notification service (APNs) for iOS and Firebase Cloud Messaging (FCM) for Android. When a SIP proxy receives an INVITE for a user whose device is offline, it forwards a request to a push gateway. The gateway translates this into a push payload and sends it to the platform push service. The operating system receives the high-priority payload, wakes the app, and hands over the event. The app then registers with the SIP server and accepts the call. This flow is standardized in RFC 8599, which defines how SIP servers can trigger push notifications for mobile clients.
Why Push Notifications Matter for VoIP Apps
Push notifications are the backbone of modern mobile VoIP reachability because they balance connectivity with power efficiency. Without them, developers face an impossible choice between battery life and call reliability. High-priority push delivery ensures that the operating system treats the incoming signal with urgency, bypassing standard background execution limits.
The user experience benefits are substantial. When a user opens your calling app, they expect it to ring immediately when someone calls them, just like a native cellular call. If the app is asleep and misses the INVITE, the call drops to voicemail or fails entirely, leading to poor reviews and churn. From a battery perspective, relying on push notifications instead of persistent background connections can reduce an app's energy consumption by up to 80% in standby mode, according to various mobile network operator benchmarks. This is because the device radio can power down completely between push events, waking only for the brief moment needed to process the incoming call signal.
Core Architecture of VoIP Push Notifications

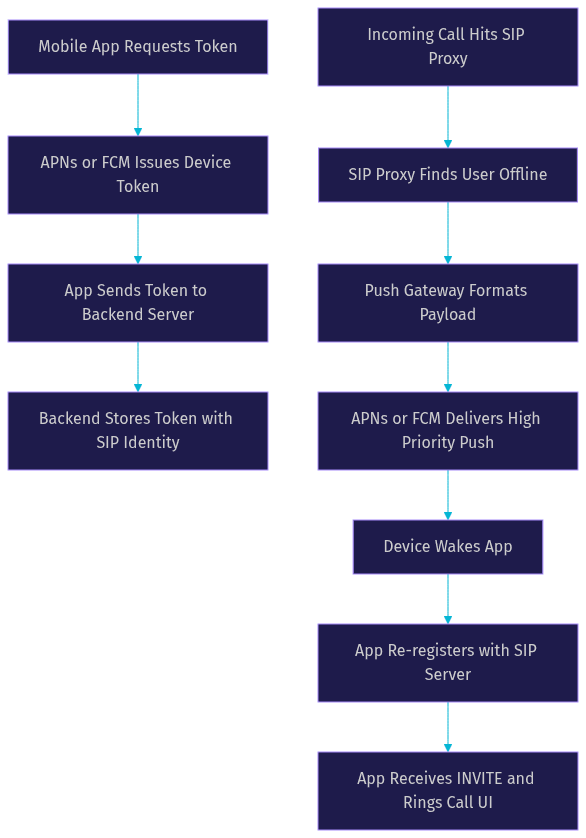

The architecture of a VoIP push notification system bridges traditional SIP infrastructure with modern mobile platform services. The end-to-end flow begins when a user logs into your calling app. The app requests a unique device token from its respective platform service, APNs or FCM. The app then transmits this token to your application backend, which stores it alongside the user's SIP identity.
When an incoming call arrives, the SIP proxy checks if the user is registered. If the registration has expired, the proxy forwards a push request to a push gateway. The gateway formats the request into a payload compatible with the target platform and dispatches it to APNs or FCM. The platform service delivers the high-priority message to the device, which wakes the app. The app immediately re-registers with the SIP server, receives the pending INVITE, and triggers the call UI.
Token Registration Process
The token registration process is the first critical step in establishing VoIP push reachability. On iOS, the app registers with PushKit, a framework designed specifically for VoIP pushes, and receives a unique token string. On Android, the app uses the Firebase Messaging SDK to retrieve a registration token. The app must send this token to your backend server over a secure connection. Your server associates this token with the user's account and SIP URI. It is important to handle token refresh events, as both Apple and Google periodically rotate these tokens. If your backend stores a stale token, push delivery will fail silently.
Push Gateway Role
A push gateway acts as the translator between your SIP infrastructure and the mobile push services. Tools like PortSIP, Flexisip, and Mizu server software include built-in push gateway functionality. When the SIP proxy detects an offline user, it sends a SIP MESSAGE or a custom event to the push gateway. The gateway looks up the user's device type and corresponding token, constructs the correct payload format for APNs or FCM, and handles the authentication handshake with the platform services. This abstraction layer lets your SIP server focus on call routing while the gateway manages the complexities of mobile push delivery and platform-specific payload requirements.
Platform-Specific Implementations
Implementing VoIP push requires distinct approaches for iOS and Android due to differences in how each operating system handles background execution and high-priority messaging.
iOS PushKit and CallKit
On iOS, VoIP push notifications rely on PushKit, which is dedicated exclusively to VoIP use cases. When your app registers with PushKit, it receives a token that allows it to receive high-priority pushes even when the app is terminated. Apple enforces a strict rule: every VoIP push must be reported to CallKit. When a PushKit delegate receives a push payload, the app must immediately instantiate a CallKit call action. If the app fails to report the call to CallKit, iOS will terminate the app and future pushes will not be delivered. This integration ensures a native calling experience and prevents developers from using VoIP pushes for general data delivery. A common pitfall is delaying the CallKit reporting to perform network tasks first, which triggers system termination. Always report to CallKit first, then handle SIP re-registration.
Android Firebase Cloud Messaging
On Android, Firebase Cloud Messaging handles VoIP push delivery. You request an FCM registration token when the user logs in. To ensure the device wakes from doze mode, you must send the message with high priority. Android treats high-priority FCM messages as exempt from background restrictions, allowing your app to wake and process the incoming call intent. For a native telephony experience, Android offers the ConnectionService framework, which integrates your incoming calls with the system dialer. While Google has evolved its telecom API recommendations over time, ensuring your app handles the high-priority payload quickly and displays the incoming call UI immediately remains the core requirement. Unlike iOS, Android does not mandate a specific framework for reporting, but prompt UI presentation is critical to avoid the system killing the background process.
Server-Side Considerations
The server-side infrastructure supporting VoIP push notifications is just as critical as the mobile client implementation. Your backend must reliably store tokens, format payloads correctly, and coordinate the wake-up logic with your SIP proxy.
Managing Device Tokens
Device tokens are not permanent. Both APNs and FCM can rotate tokens, and users can log out, switch devices, or uninstall the app. Your backend must implement a robust token management strategy. When the app sends a new token, update the existing record rather than creating a duplicate. Implement a token revocation flow when a user logs out. If a push service returns a failure indicating an invalid token, remove that token from your database immediately to prevent cascading delivery failures. Storing the token alongside the device type, app version, and last-seen timestamp helps troubleshoot delivery issues and manage platform-specific routing.
Crafting the Push Payload
The push payload is the data package sent to the device. For APNs, you must use the VoIP push type and include headers like apns-expiration to control how long the service retries delivery if the device is offline. Payload size limits are strict, typically 4 kilobytes, so include only essential data like the caller identity and call UUID. Avoid sending large metadata or sensitive information in the payload. For security, some implementations sign the payload or include a short-lived token that the app validates upon wake-up. This prevents spoofed push attempts from triggering unwanted call UI. FCM payloads require a priority field set to high and a data section containing the call details.
Handling Call Wake-Up Logic
When the device receives the push, the app must execute a specific wake-up sequence. The app should immediately re-register with the SIP server using its credentials. Once registered, the SIP proxy will deliver the pending INVITE. The app then triggers the incoming call UI. This sequence must happen within seconds to meet user expectations for call latency. If the app performs heavy initialization before SIP registration, the call may time out on the caller's end.
Best Practices and Security
Securing your VoIP push notification infrastructure is essential to protect user privacy and prevent abuse. Every push request from your SIP proxy to your push gateway should be authenticated and transmitted over TLS. Validate the device token on your backend to ensure it matches the expected format and user session. Implement rate limiting on your push gateway to prevent a flood of requests from triggering a denial-of-service condition or getting your APNs or FCM certificates revoked.
Privacy considerations are paramount. Do not include personally identifiable information or full phone numbers in the push payload, as push services may log payload metadata. Use opaque identifiers or internal call UUIDs instead. Ensure your backend token database is encrypted at rest. Regularly rotate your APNs signing keys and FCM service account credentials. Monitor for unusual push patterns, such as a single user receiving hundreds of pushes per minute, which could indicate a loop in your SIP routing logic.
Common Pitfalls and Troubleshooting
Even with a solid architecture, VoIP push notifications can fail in subtle ways. One frequent issue is missed pushes due to token mismatch. This happens when a user updates the app and receives a new token, but the backend fails to update the stored record. Diagnose this by logging token refresh events on the client and comparing them with backend database entries.
Another common problem is APNs deprecation. Apple periodically updates its push protocols and deprecates older binary interfaces. If your push gateway uses an outdated APNs provider API, pushes will silently fail. Ensure your gateway uses the modern HTTP/2 APNs provider API. On Android, failing to set the FCM message priority to high results in delayed delivery when the device is in doze mode. Check your server logs to verify the priority field is included. Finally, if calls are dropping after the push is received, verify that your app is not blocking the main thread during SIP re-registration, which can cause the operating system to kill the app before the call UI appears.
Monitoring, Analytics, and Quality of Service
To maintain a reliable VoIP push system, you must track specific quality of service metrics. Delivery rate measures the percentage of push requests that result in a successful device wake-up. Push latency tracks the time from the SIP proxy sending the push request to the device receiving it. Wake-up time measures the interval between the device receiving the push and the app completing SIP re-registration.
Implement logging at every stage of the flow. Your push gateway should log the request timestamp, target token, platform service response code, and delivery status. Your mobile app should log the push receipt time, SIP registration completion time, and call answer time. Set up alerting for anomalies, such as a sudden drop in delivery rate below 95% or an increase in average latency beyond 2 seconds. Tools like Grafana or Datadog can visualize these metrics and help you identify bottlenecks, whether they lie in your gateway processing, platform service delivery, or client-side wake-up logic.
Future Trends in VoIP Push
The landscape of VoIP push notifications continues to evolve. One emerging trend is the application of push wake-up concepts to web-based real-time communication. While WebRTC does not currently have a native push mechanism identical to PushKit, standards like Web Push are being explored to wake dormant web clients for incoming sessions. Carrier-grade push is another area of development, where mobile network operators integrate push signaling directly into the 5G core network to reduce latency further.
Artificial intelligence is also entering the push optimization space. AI-driven push optimization can analyze user behavior patterns to predict the optimal time to send a push or adjust payload priority based on network conditions. As real-time communication platforms like VideoSDK expand their capabilities, we may see deeper integration of push management directly into communication SDKs, abstracting away the complexity of token management and platform-specific payload formatting for developers building voice and video applications.
Definitions Glossary
PushKit: An iOS framework that provides high-priority push notifications specifically for VoIP apps, allowing them to wake from a terminated state to handle incoming calls.
Firebase Cloud Messaging (FCM): Google's cross-platform messaging solution that delivers high-priority push notifications to Android devices, exempting them from doze mode restrictions.
Push Gateway: A server component that translates SIP signaling requests into platform-specific push payloads and manages delivery through APNs or FCM.
RFC 8599: An IETF standard that defines how SIP servers can trigger push notifications to wake mobile clients, enabling reliable VoIP call delivery without persistent background connections.
CallKit: An iOS framework that integrates VoIP calls with the native phone UI, mandatory for reporting all VoIP pushes received via PushKit.
Key Takeaways
- VoIP push notifications solve the fundamental trade-off between mobile battery life and real-time call reachability by using high-priority background signals to wake dormant apps.
- The architecture requires coordination between device token registration, a push gateway, platform services like APNs and FCM, and your SIP proxy.
- iOS mandates PushKit for VoIP pushes and requires immediate CallKit reporting, while Android relies on high-priority FCM messages to bypass doze mode.
- Server-side token management, payload crafting, and secure transmission are critical to maintaining high delivery rates and protecting user privacy.
- Monitoring delivery rate, push latency, and wake-up time is essential for diagnosing failures and maintaining a quality user experience in production VoIP applications.
Conclusion
Implementing a reliable VoIP push notification strategy is essential for any real-time communication app that needs to stay reachable without sacrificing battery life. By understanding the end-to-end architecture, adhering to platform-specific requirements like PushKit and CallKit on iOS and high-priority FCM on Android, and maintaining robust server-side token and payload management, you can ensure your users never miss a call. Security, monitoring, and proactive troubleshooting close the loop on a production-grade system. If you are building a voice or video calling application, explore how VideoSDK can simplify your real-time communication infrastructure. Sign up at app.videosdk.live/login to get started. What are you building with VoIP push notifications? Drop a comment below, I would love to hear about your real-time communication use case.
Conclusion
VoIP push notifications are essential for delivering real-time call alerts and enhancing the user experience in VoIP applications. By understanding the concepts, implementation details, and best practices outlined in this guide, developers can build robust and reliable VoIP push notification systems.
Now, take the next step and implement VoIP push notifications in your apps to provide a seamless and responsive communication experience for your users!
