iOS VoIP CallKit: A Developer's Guide to Integration

This comprehensive guide covers integrating Apple's CallKit framework into your iOS VoIP application, detailing setup, core components, handling calls, advanced features, and best practices for a native calling experience.

iOS

VoIP

CallKit: A Comprehensive Guide

Developing a Voice over IP (

VoIP

) application for iOS presents unique challenges, especially when aiming for a seamless, native-like user experience. Users expect their VoIP calls to behave just like regular cellular calls – appearing on the lock screen, integrating with the Phone app's recents, and handling audio interruptions gracefully. This is where Apple's CallKit framework becomes indispensable. Integrating CallKit with your VoIP app elevates the user experience from a simple in-app function to a core communication tool on the device.
This guide dives deep into iOS VoIP CallKit integration, providing a developer-focused walkthrough of the framework's components, setup, implementation details, and best practices. Whether you're building a new VoIP app or integrating CallKit into an existing one, understanding this framework is crucial for a successful and user-friendly application.

Introduction to iOS VoIP CallKit

To begin our VoIP CallKit tutorial, let's establish a foundational understanding of what CallKit is and why it's essential for VoIP app development iOS.

What is iOS CallKit?

iOS CallKit is a framework introduced by Apple that allows VoIP applications to integrate with the native iOS Phone app interface. It provides capabilities for users to manage and interact with VoIP calls directly from the lock screen, the Phone app's Favorites, Recents, and Contacts, and even during carplay or Siri interactions, making VoIP calls feel like standard cellular calls.

Why Use iOS CallKit?

Using iOS CallKit significantly enhances the user experience of your VoIP application. It provides native call handling features, such as displaying incoming calls on the lock screen (even when the app is in the background), integrating with the system's call history, managing audio routes, and handling call interruptions. Without CallKit, your VoIP calls would be limited to basic in-app notifications or background audio, leading to a disjointed and less reliable user experience compared to native calls.

Key Components of CallKit

The iOS CallKit framework is built around several core components essential for its operation:
  • CXProvider: Represents the VoIP service provider (your app) to the system. It's responsible for notifying the system about call updates and receiving actions requested by the user (answer, end, hold, etc.).
  • CXProviderDelegate: A protocol that your app implements to respond to actions initiated by the system on behalf of the user (e.g., answering an incoming call, starting an outgoing call, putting a call on hold).
  • CXCallController: Used by your app to request actions from the system, such as starting a new outgoing call or ending an ongoing call. It submits CXTransaction objects containing CXAction subclasses.
  • CXCallUpdate: Used by your app to report changes in a call's state or properties (e.g., remote caller's name, call's muted status) to the system via the CXProvider.
  • CXAction: Abstract base class for actions performed on calls (e.g., CXStartCallAction, CXAnswerCallAction, CXEndCallAction).
  • CXTransaction: A collection of CXAction objects that are performed together.

Setting up Your Development Environment

Integrating CallKit VoIP iOS development into your project requires some initial setup to ensure your app has the necessary permissions and capabilities.

Prerequisites

Before you start coding, ensure you have:
  • An active Apple Developer account.
  • Xcode installed (latest stable version recommended).
  • An understanding of Swift or Objective-C for iOS development.
  • A working VoIP backend or SDK integrated into your app, capable of handling call signaling and media streams (e.g., CallKit and SIP, CallKit and

    WebRTC

    , or a specific iOS VoIP SDKs).

Project Setup in Xcode

Create a new Xcode project or open your existing VoIP application project. CallKit is available in iOS 10.0 and later, so ensure your project's deployment target is set appropriately. You will add the CallKit framework to your project like any other framework.
  1. In the Project Navigator, select your project.
  2. Go to the "General" tab.
  3. Under "Frameworks, Libraries, and Embedded Content", click the '+' button.
  4. Search for CallKit.framework and add it.

Enabling VoIP Capabilities

Your application needs specific entitlements to properly function as a VoIP app, especially for background execution and receiving push notifications via PushKit.
  1. In the Project Navigator, select your project.
  2. Go to the "Signing & Capabilities" tab.
  3. Click the '+ Capability' button.
  4. Search for and add the "Background Modes" capability.
  5. Under "Background Modes", check the "Voice over IP (VoIP)" option.
  6. Click the '+ Capability' button again.
  7. Search for and add the "Push Notifications" capability (required for PushKit).
  8. Click the '+ Capability' button a third time.
  9. Search for and add the "VoIP" capability (this specifically enables PushKit VoIP notifications).
These steps enable your app to run in the background to receive incoming calls via PushKit and allows CallKit to manage the call lifecycle correctly, even when the app isn't actively in the foreground.

Integrating CallKit with Your VoIP Application

The core of CallKit integration involves implementing the CXProvider and CXProviderDelegate protocols to communicate with the system. This section details these steps and how to handle various call events.

Implementing CXProvider

The CXProvider is the central object that interacts with the system on your app's behalf. You need to configure it and keep a reference to it.
1import CallKit
2
3class CallManager {
4    let provider: CXProvider
5    private var calls: [UUID: YourCallObject] = [:] // Manage your internal call objects
6
7    init() {
8        let configuration = CXProviderConfiguration(localizedName: "Your App Name")
9
10        // Configure the provider (icons, ringtones, capabilities, etc.)
11        configuration.iconTemplateImage = UIImage(named: "AppIconTemplate")
12        configuration.supportsVideo = true // Set to true if your app supports video calls
13        configuration.maximumCallsPerCallGroup = 1 // Set to 1 for 1-on-1 calls, >1 for group calls
14        configuration.supportedHandleTypes = [.phoneNumber, .generic] // Or other relevant types
15
16        self.provider = CXProvider(configuration: configuration)
17        // Assign the delegate, typically a separate object or the call manager itself
18        self.provider.setDelegate(self, queue: nil) // Use main queue for delegate methods
19    }
20
21    // ... methods to manage calls and interact with the provider ...
22}
23
24// Make sure your CallManager (or another object) conforms to CXProviderDelegate
25extension CallManager: CXProviderDelegate {
26    // Delegate methods will be implemented here
27    // ...
28}
29
This code snippet shows the basic initialization and configuration of a CXProvider. The localizedName is what appears to the user (e.g., "Your App Name Audio" or "Your App Name Video" in the native UI). You can configure various aspects like supported handle types (.phoneNumber, .emailAddress, .generic), ringtones, and maximum calls.

Implementing CXProviderDelegate

The CXProviderDelegate protocol is where your app receives actions requested by the user through the native CallKit UI. You must implement these methods to perform the actual call actions within your VoIP SDK.
Handling Incoming Call Requests:
When you receive an incoming VoIP push notification (via PushKit), you inform the CXProvider about the new incoming call. The system then presents the native incoming call UI. When the user answers, the provider(_:performAnswerCallAction:) method is called.
1// In your CallManager (or PushKit delegate)
2func reportIncomingCall(uuid: UUID, handle: String, callerName: String) {
3    let update = CXCallUpdate()
4    update.remoteHandle = CXHandle(type: .generic, value: handle)
5    update.localizedCallerName = callerName
6    update.hasVideo = false // Set to true if video call
7
8    provider.reportNewIncomingCall(with: uuid, update: update) { error in
9        if let error = error {
10            print("Failed to report incoming call: \(error.localizedDescription)")
11            // Handle error: e.g., inform the caller the call couldn't be presented
12        } else {
13            print("Successfully reported incoming call.")
14            // Store the call details internally, mapping uuid to your call object
15            // self.calls[uuid] = yourInternalCallObject
16        }
17    }
18}
19
20// In your CXProviderDelegate implementation
21func provider(_ provider: CXProvider, performAnswerCallAction action: CXAnswerCallAction) {
22    // Retrieve your internal call object using action.callUUID
23    guard let call = calls[action.callUUID] else {
24        action.fail()
25        return
26    }
27
28    // Perform the action using your VoIP SDK
29    // This involves starting the audio/video session and connecting to the remote peer
30    call.answer() // Your internal method to answer the call
31
32    // Inform CallKit the action was successfully performed
33    action.fulfill()
34}
35
This demonstrates how to report an incoming call to CallKit and how to handle the user answering the call via the CXProviderDelegate. The reportNewIncomingCall method triggers the native UI. Once the user interacts with it, the relevant delegate method (performAnswerCallAction in this case) is invoked, and you perform the actual call logic using your underlying VoIP SDK.
Handling Outgoing Call Requests:
When your user initiates an outgoing call from your app's UI, you don't perform the action directly. Instead, you use CXCallController to request the system to perform a CXStartCallAction. CallKit validates the action and, if successful, calls provider(_:performStartCallAction:) on your delegate.
1// In your app's UI code or a call initiation method
2func startOutgoingCall(handle: String, video: Bool) {
3    let handleType: CXHandle.HandleType = // Determine handle type (.generic, .phoneNumber, etc.)
4    let callHandle = CXHandle(type: handleType, value: handle)
5
6    let startCallAction = CXStartCallAction(call: UUID(), handle: callHandle)
7    startCallAction.isVideo = video
8
9    let transaction = CXTransaction(action: startCallAction)
10
11    let callController = CXCallController()
12    callController.request(transaction) { error in
13        if let error = error {
14            print("Failed to request start call action: \(error.localizedDescription)")
15            // Inform user the call failed
16        } else {
17            print("Requested start call action successfully.")
18            // CallKit will now call provider(_:performStartCallAction:) if successful
19        }
20    }
21}
22
23// In your CXProviderDelegate implementation
24func provider(_ provider: CXProvider, performStartCallAction action: CXStartCallAction) {
25    // Create your internal call object using action.callUUID, action.handle, action.isVideo
26    let newCall = YourCallObject(uuid: action.callUUID, handle: action.handle, isVideo: action.isVideo)
27    calls[action.callUUID] = newCall
28
29    // Perform the action using your VoIP SDK
30    // This involves initiating the connection to the remote peer
31    newCall.startConnect() // Your internal method to start connecting
32
33    // Inform CallKit the action was successfully performed (connection starts)
34    action.fulfill()
35
36    // Later, when your SDK reports the call is connecting, update CallKit:
37    // provider.reportOutgoingCall(with: action.callUUID, startedConnectingAt: Date())
38
39    // When your SDK reports the call is connected, update CallKit:
40    // provider.reportOutgoingCall(with: action.callUUID, connectedAt: Date())
41}
42
This sequence shows how to request an outgoing call via CXCallController and how your CXProviderDelegate handles the approved action. You create your internal call state and initiate the connection process. It's crucial to update CallKit (provider.reportOutgoingCall) as the call transitions through connecting and connected states so the native UI reflects the correct status.
In addition to answer and start, the delegate must implement methods for performEndCallAction, performSetHeldCallAction, performSetMutedCallAction, etc., fulfilling or failing the action based on your VoIP SDK's capabilities and response.

Handling Call Events

Beyond the actions requested by the user, your CXProviderDelegate receives other important events:
  • providerDidReset(_:): Called when the provider is reset, typically due to a crash or system issue. Your app should clean up and invalidate all calls.
  • provider(_:performPlayDTMFCallAction:): Handle DTMF tone requests.
  • provider(_:didActivate audioSession:): Called when CallKit activates the audio session for your call. You should configure and start playing/recording audio here.
  • provider(_:didDeactivate audioSession:): Called when CallKit deactivates the audio session. You should stop audio processing.
Managing the audio session activation and deactivation is particularly important. You should configure your app's audio session when provider(_:didActivate audioSession:) is called and release resources when provider(_:didDeactivate audioSession:) is called. CallKit manages the audio session category and mode for you, ensuring your call audio is routed correctly (e.g., to the speaker, receiver, or Bluetooth) and interacts properly with other system audio.

Advanced CallKit Features

Let's explore some more advanced aspects of CallKit integration that enhance the functionality and robustness of your VoIP application.

Managing Multiple Calls

CallKit inherently supports managing multiple concurrent calls, including placing calls on hold and swapping between them. Your CXProviderDelegate is central to this. When the system requests to hold a call via provider(_:performSetHeldCallAction:), you tell your VoIP SDK to put the specified call on hold. When the system asks to unhold (activate) a call, you tell your SDK to resume that call, ensuring other calls (if any) are automatically held by the system. You need to track the hold status of each call within your app and report changes to CallKit using CXCallUpdate.
To manage multiple calls, your internal call tracking ([UUID: YourCallObject]) is essential. Each call operation (CXAction) includes the callUUID, allowing you to identify which of your active calls the action applies to.

Handling CallKit Errors

Errors can occur during CallKit operations, either when requesting actions via CXCallController (as shown in the outgoing call example) or when reporting incoming calls via CXProvider. Additionally, delegate methods might fail if your underlying VoIP SDK cannot perform the requested action (e.g., network issues when trying to answer).
When a CXAction fails within your CXProviderDelegate implementation (e.g., your VoIP SDK couldn't connect the call after an answer request), you must call action.fail() to inform CallKit. This signals to the system that the action could not be completed, and CallKit will update the UI accordingly.
1// In your CXProviderDelegate implementation (example for answering)
2func provider(_ provider: CXProvider, performAnswerCallAction action: CXAnswerCallAction) {
3    guard let call = calls[action.callUUID] else {
4        action.fail()
5        return
6    }
7
8    // Attempt to answer the call with your SDK
9    call.answer { success in // Assuming your SDK's answer method has a completion handler
10        if success {
11            print("SDK successfully answered call: \(action.callUUID)")
12            // Inform CallKit the action was successful
13            action.fulfill()
14        } else {
15            print("SDK failed to answer call: \(action.callUUID)")
16            // Inform CallKit the action failed
17            action.fail()
18            // Optionally, clean up the call internally if it can't be recovered
19            self.calls.removeValue(forKey: action.callUUID)
20        }
21    }
22}
23
Properly handling errors and calling action.fulfill() or action.fail() is critical for keeping the CallKit UI in sync with the actual state of your VoIP call.

Customizing the CallKit UI

While CallKit provides a native UI, you have limited CallKit UI customization options, primarily through the CXProviderConfiguration when you initialize your CXProvider. You can set:
  • localizedName: Your app's name displayed in the call UI.
  • iconTemplateImage: A template image for your app's icon used in various places (e.g., recents list). It should be a monochrome image.
  • ringtoneSound: Specify a custom sound file for incoming calls presented via CallKit.
  • supportsVideo: Whether your provider supports video calls, which affects UI elements.
  • supportedHandleTypes: Define the types of addresses your app can handle (phone numbers, email addresses, etc.).
Beyond these configuration options, the system controls the look and feel of the CallKit screens.

Integrating with PushKit for VoIP Push Notifications

CallKit and PushKit work hand-in-hand, especially for incoming calls. Since iOS applications are often suspended in the background to save battery, a standard push notification cannot reliably wake your app to receive a VoIP call. VoIP push notifications iOS, delivered via PushKit, are designed specifically for this purpose. They have a higher priority and can wake your app even from a suspended state (within limits imposed by iOS).
When a VoIP push notification arrives, your app's PKPushRegistryDelegate receives it. In the delegate method pushRegistry(_:didReceiveIncomingPushWith:for:completionHandler:), you receive the push payload. This is where you should initialize your VoIP SDK if needed, parse the incoming call details from the payload, and crucially, report the incoming call to CallKit using provider.reportNewIncomingCall(...) as shown in the earlier example. The completionHandler must be called after you've finished processing the push and reporting the call to CallKit. Failing to report the call promptly or failing to call the completion handler can lead to app termination.
1graph TD
2    A[Remote Server] --> B(APNs);;
3    B --> C{User's iOS Device};;
4    C --> D(PushKit);
5    D --> E[Your App (PKPushRegistryDelegate)];;
6    E --> F[VoIP SDK (Receives Signaling)];;
7    E --> G[CallKit (CXProvider)];;
8    F --> G;
9    G --> H[iOS Native Call UI];;
10    H --> I{User Interaction};
11    I --> G;
12    G --> E;
13    E --> F;
14    F --> H;
15
16    %% Descriptions
17    A-.->|Sends VoIP push token| B;
18    B-.->|Delivers VoIP push| C;
19    D-.->|Wakes/Launches app| E;
20    E-.->|Reports incoming call| G;
21    I-.->|Answer/End/Hold actions| G;
22    G-.->|Delegate methods called| E;
23    E-.->|Performs SDK actions| F;
24    F-.->|Updates state| G;
25    G-.->|Updates UI| H;
26

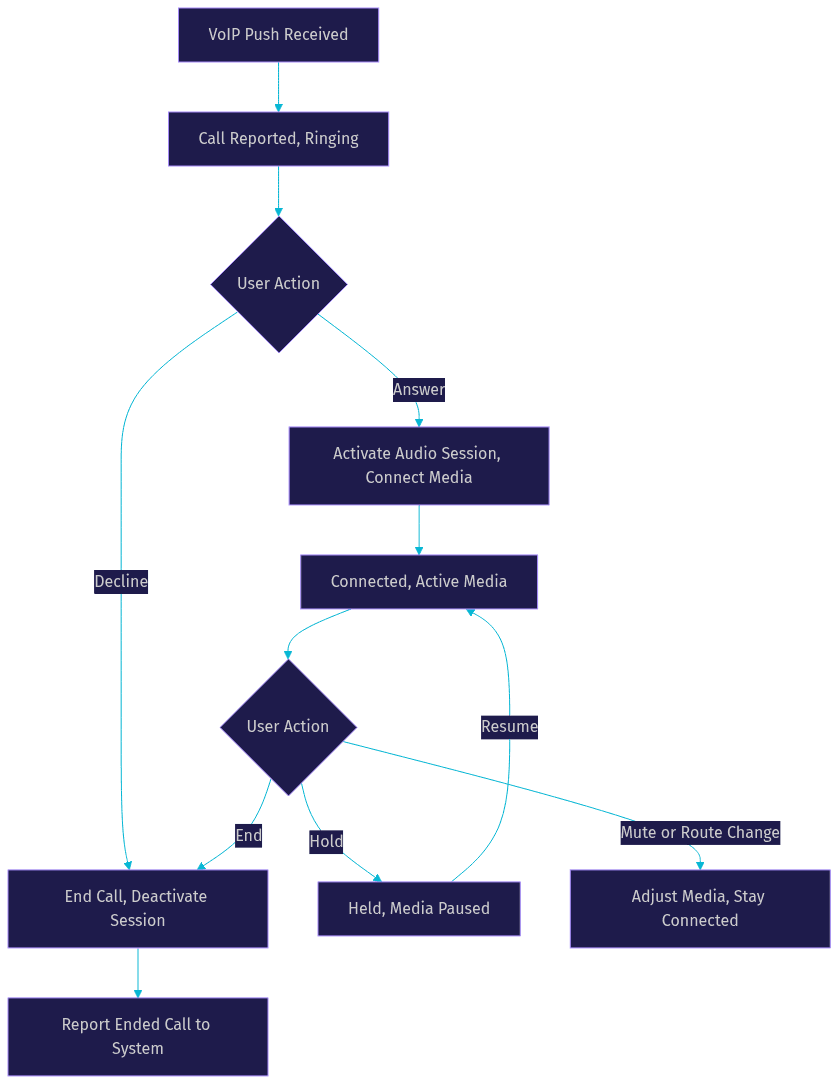

This diagram illustrates the flow for an incoming VoIP call using PushKit and CallKit. The server sends a VoIP push via APNs. PushKit delivers it to your app, which then reports the call to CallKit. CallKit presents the native UI. User interaction on the UI triggers delegate methods in your app, which then interact with your VoIP SDK to manage the call state, and your app reports state changes back to CallKit to update the UI.

Best Practices and Considerations

Implementing iOS VoIP CallKit effectively requires attention to several best practices and potential pitfalls to ensure a robust, secure, and battery-efficient application.

Security Best Practices

CallKit security considerations are paramount. When handling sensitive call information like phone numbers or names from incoming PushKit payloads, ensure proper validation and sanitization. Protect your VoIP push notification endpoint on your server. Avoid including overly sensitive data directly in the push payload if possible. Map calls using UUIDs and retrieve details securely from your server or internal state once the app is active. Be mindful of storing sensitive call history information. Adhere to Apple's guidelines regarding data privacy and security.

Optimizing for Battery Life

iOS background modes VoIP and PushKit are specifically designed to allow VoIP apps to receive calls without constantly running in the background and draining the battery. Utilize PushKit exclusively for waking your app for incoming calls. Avoid keeping network connections open unnecessarily when your app is in the background or suspended. Perform heavy processing only when the app is active or when absolutely required by an incoming call push. Properly manage the audio session activation and deactivation lifecycle dictated by CallKit; keeping the audio session active when no call is ongoing significantly drains battery.

Handling Background Modes

Properly configuring the "Voice over IP (VoIP)" background mode and using PushKit are the main ways your app handles calls in the background. Remember that even with these capabilities, iOS can terminate your app for various reasons (resource constraints, bugs). Your app must be able to handle relaunching upon receiving a PushKit notification or other background events. Design your app's initialization flow to quickly become ready to process a PushKit notification and report an incoming call to CallKit upon launch.

Testing and Debugging

Testing and debugging CallKit implementations can be tricky because it involves background execution and system-level interactions. Use Xcode's debugger, focusing on breakpoints in your PKPushRegistryDelegate and CXProviderDelegate methods. Use the Console log to track PushKit receipt and CallKit interactions. Testing on a physical device is essential, as background modes and PushKit do not function correctly in the simulator. Pay close attention to error handling (action.fail()) and ensure your app cleans up resources if an action fails or the provider resets (providerDidReset). Test different scenarios: app killed, app in background, app in foreground, device locked, device unlocked, receiving calls while on a cellular call, receiving calls while on another VoIP call.

Conclusion

Integrating iOS VoIP CallKit is a necessary step for creating a modern, user-friendly VoIP application on Apple devices. By leveraging CXProvider, CXProviderDelegate, and coordinating with PushKit, developers can provide a native calling experience that users expect, integrating seamlessly with the system's Phone app, handling calls on the lock screen, and managing audio gracefully.
While the initial setup and handling of the various delegate methods require careful implementation, the result is a significantly improved user experience, higher app engagement, and compliance with platform expectations. Mastering CallKit VoIP iOS development is key to building successful communication applications on iOS.
For further exploration and detailed API references, consult the official documentation and community resources:

Get 10,000 Free Minutes Every Months

No credit card required to start.

Conclusion

Integrating iOS VoIP CallKit is a necessary step for creating a modern, user-friendly VoIP application on Apple devices. By leveraging CXProvider, CXProviderDelegate, and coordinating with PushKit, developers can provide a native calling experience that users expect, integrating seamlessly with the system's Phone app, handling calls on the lock screen, and managing audio gracefully.
While the initial setup and handling of the various delegate methods require careful implementation, the result is a significantly improved user experience, higher app engagement, and compliance with platform expectations. Mastering CallKit VoIP iOS development is key to building successful communication applications on iOS.
For further exploration and detailed API references, consult the official documentation and community resources:

Want to level-up your learning? Subscribe now

Subscribe to our newsletter for more tech based insights

FAQ
