What are the benefits of using Socket.IO with WebRTC?

Socket.IO simplifies the signaling process, provides reliable communication, and scales well for multiple users. It handles the complex task of establishing a connection between peers, allowing you to focus on the media streaming aspects of WebRTC.

Can I use WebRTC without Socket.IO?

Yes, but it significantly increases the complexity. You'll need to manage the signaling process using other technologies like HTTP requests or WebSockets directly, which requires more code and careful handling of network conditions.

Is Socket.IO the only signaling server option for WebRTC?

No, other options exist, including custom WebSocket servers, XMPP servers, and other real-time communication platforms. The choice depends on your project's specific needs and scalability requirements.

What are some common challenges when integrating WebRTC and Socket.IO?

Handling network interruptions, managing multiple concurrent connections, ensuring secure communication, and optimizing performance for low-bandwidth scenarios are common challenges.

How can I improve the security of my WebRTC application using Socket.IO?

Implement HTTPS for secure communication, use appropriate authentication mechanisms, and sanitize all user inputs to prevent attacks like XSS. Consider using a robust framework that handles security features efficiently.

Socket.IO and WebRTC: Building Real-Time Applications

Discover the power of combining Socket.IO and WebRTC for creating robust, real-time applications. This guide covers everything from signaling to media streaming, complete with practical examples.

Real-time communication is becoming increasingly vital for modern web applications. Whether it's video conferencing, live streaming, or interactive gaming, users expect seamless and responsive experiences. Two technologies, Socket.IO and

WebRTC

, play key roles in enabling these real-time capabilities. Socket.IO facilitates real-time, bidirectional communication between web clients and servers. WebRTC enables direct peer-to-peer communication for real-time audio, video, and data transfer. Combining the two creates powerful applications that scale.

This guide will explore how to effectively integrate Socket.IO with WebRTC to build robust real-time applications. We will delve into the intricacies of signaling, peer connection management, and media streaming, providing code examples and best practices along the way. By the end of this guide, you'll have a solid understanding of how to leverage the strengths of both Socket.IO and WebRTC to create engaging and interactive user experiences. The focus will be on

WebRTC signaling

with Socket.IO to establish peer connections, and demonstrate building a video chat app with Socket.IO and WebRTC. We will cover scaling WebRTC with Socket.IO and explore WebRTC and Socket.IO security considerations.

Understanding WebRTC

What is WebRTC?

WebRTC (Web Real-Time Communication) is an open-source project providing web browsers and mobile applications with real-time communication (RTC) capabilities via simple APIs. It allows for audio and video communication directly between browsers or devices, without the need for intermediary servers (in most cases). This direct peer-to-peer connection minimizes latency and maximizes performance.

WebRTC Capabilities and Limitations

WebRTC excels at providing low-latency audio and video streaming between peers. It supports features like:

Audio and Video Communication: Real-time audio and video streaming capabilities.
Data Transfer: Peer-to-peer data transfer for applications requiring low-latency data exchange.
Screen Sharing: Ability to share a user's screen with other peers.
Adaptive Bitrate: Dynamically adjusts the video quality based on network conditions.

However, WebRTC also has limitations:

Signaling: WebRTC doesn't define a specific signaling protocol. Developers must implement their own signaling mechanism to coordinate peer connections.
NAT Traversal: WebRTC requires techniques like STUN and TURN to overcome Network Address Translation (NAT) and firewalls.
Complexity: Setting up and managing WebRTC peer connections can be complex, requiring careful handling of ICE candidates and session descriptions.

WebRTC Architecture: Peer-to-Peer Communication

WebRTC's peer-to-peer architecture allows for direct communication between peers. This architecture consists of several key components:

PeerConnection: The core component responsible for establishing and managing the peer-to-peer connection.
MediaStream: Represents a stream of audio or video data.
ICE (Internet Connectivity Establishment): A framework for discovering and negotiating the best communication path between peers, handling NAT traversal and firewall issues. ICE makes use of STUN and TURN servers to facilitate this process.
Signaling Server: Used to exchange metadata needed to setup the peer connection. This metadata includes session descriptions (SDP) and ICE candidates.

The following diagram illustrates the basic WebRTC architecture:

1sequenceDiagram
2    participant A as Peer A
3    participant B as Peer B
4    participant SignalingServer as Signaling Server
5
6    A->>SignalingServer: Send Offer (SDP)
7    SignalingServer->>B: Forward Offer (SDP)
8    B->>SignalingServer: Send Answer (SDP)
9    SignalingServer->>A: Forward Answer (SDP)
10    A->>SignalingServer: Send ICE Candidates
11    SignalingServer->>B: Forward ICE Candidates
12    B->>SignalingServer: Send ICE Candidates
13    SignalingServer->>A: Forward ICE Candidates
14    A->>B: Establish Peer Connection
15    B->>A: Establish Peer Connection
16    A->>B: Stream Media
17    B->>A: Stream Media
18
19

The Role of Socket.IO in WebRTC

Signaling: The Bridge Between Peers

As mentioned earlier, WebRTC doesn't provide a built-in signaling mechanism. Signaling is the process of exchanging metadata between peers to establish a connection. This metadata includes:

Session Description Protocol (SDP): Describes the media capabilities of each peer, such as supported codecs and resolutions.
ICE Candidates: Information about the network interfaces of each peer, used for NAT traversal.

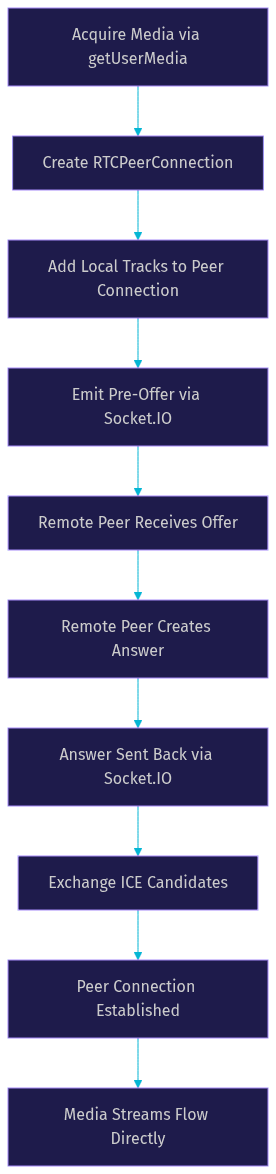

Signaling servers are used to relay these messages between peers. The signaling process involves the following steps:

Offer Creation: One peer creates an offer containing its SDP and ICE candidates.
Offer Exchange: The offer is sent to the other peer via the signaling server.
Answer Creation: The receiving peer creates an answer containing its SDP and ICE candidates.
Answer Exchange: The answer is sent back to the offering peer via the signaling server.
ICE Candidate Exchange: Peers exchange ICE candidates until a suitable communication path is found.
Connection Established: Once ICE negotiation is complete, the peer-to-peer connection is established, and media streaming can begin.

Socket.IO as a Signaling Server

Socket.IO provides a convenient and efficient way to implement the signaling process. It offers real-time, bidirectional communication over

WebSockets

, enabling fast and reliable message delivery between peers. Socket.IO simplifies the development of real-time applications by handling many of the complexities of

WebSocket

management. The lightweight nature of Socket.IO makes it a great choice for a

WebRTC signaling server

Advantages of Using Socket.IO for
WebRTC Signaling

Real-time Communication: Socket.IO provides real-time bidirectional communication, ensuring timely delivery of signaling messages.
Simplified Development: Socket.IO abstracts away many of the complexities of
WebSocket
management, making it easier to build and maintain the signaling server.
Cross-Browser Compatibility: Socket.IO works across a wide range of browsers, ensuring compatibility for your WebRTC application.
Scalability: Socket.IO can be scaled horizontally to handle a large number of concurrent connections.
Fallback mechanisms: Socket.IO includes fallback mechanisms for browsers that don't support
WebSockets
.

Alternative Signaling Methods (Brief comparison)

While Socket.IO is a popular choice, other signaling methods can also be used with WebRTC, including:

WebSockets: Provides a low-level interface for bidirectional communication. Requires more manual handling of connection management.
Server-Sent Events (SSE): Enables unidirectional communication from the server to the client. Suitable for applications where the server needs to push updates to the client.
REST APIs: Can be used for signaling, but typically involves more overhead compared to WebSockets or Socket.IO.

1// Simple Socket.IO server setup with Node.js
2const io = require('socket.io')(3000, {
3  cors: { origin: '*' }
4});
5
6io.on('connection', socket => {
7  console.log('User connected:', socket.id);
8
9  socket.on('disconnect', () => {
10    console.log('User disconnected:', socket.id);
11  });
12
13  socket.on('message', message => {
14    console.log(`message from ${socket.id} ${message}`);
15  })
16});
17

Setting up a Socket.IO Signaling Server

Choosing a Backend Technology (Node.js, Python, etc.)

The choice of backend technology depends on your project requirements and preferences. Node.js is a popular choice for WebRTC signaling servers due to its non-blocking I/O model and extensive ecosystem of libraries. Python with frameworks like Flask or Django can also be used. Node.js provides excellent performance and scalability for real-time applications. For this tutorial, we will focus on Node.js.

Setting up Dependencies

To set up a Socket.IO signaling server with Node.js, you'll need to install the socket.io package:

1npm install socket.io
2

Implementing Signaling Logic: Handling Connections, Offers, and Answers

The signaling logic involves handling client connections, exchanging offers and answers, and relaying ICE candidates. Here's an example of how to implement this logic with Socket.IO:

1// Handling WebRTC offers and answers with Socket.IO
2io.on('connection', socket => {
3    console.log('User connected:', socket.id);
4
5    socket.on('offer', (offer, room) => {
6        console.log(`Received offer from ${socket.id} in room ${room}`);
7        socket.to(room).emit('offer', offer, socket.id);
8    });
9
10    socket.on('answer', (answer, room, senderId) => {
11        console.log(`Received answer from ${socket.id} in room ${room}`);
12        io.to(senderId).emit('answer', answer);
13    });
14
15    socket.on('ice-candidate', (candidate, room, senderId) => {
16        console.log(`Received ICE candidate from ${socket.id} in room ${room}`);
17        io.to(senderId).emit('ice-candidate', candidate);
18    });
19
20    socket.on('join-room', room => {
21      socket.join(room);
22      console.log(`Socket ${socket.id} joined room ${room}`);
23    });
24
25    socket.on('disconnect', () => {
26        console.log('User disconnected:', socket.id);
27    });
28});
29

Error Handling and Robustness

Robust error handling is crucial for ensuring the stability of your signaling server. Implement error handling to catch and log any exceptions that may occur during the signaling process. Also implement reconnection logic to allow the clients reconnect automatically to the server after disconnection. Consider implementing logging and monitoring to track the health and performance of your signaling server. Implement proper validation of incoming messages to prevent malicious attacks.

Building a WebRTC Client

Frontend Technology (React, Vue, Vanilla JS)

The choice of frontend technology depends on your project requirements and preferences. React, Vue, and Vanilla JS are all suitable options for building WebRTC clients. React and Vue provide component-based architectures, which can simplify the development of complex user interfaces. Vanilla JS offers more control over the DOM and can be a good choice for smaller projects. For this tutorial, we'll use vanilla JavaScript for simplicity.

Setting up the WebRTC Peer Connection

To set up a WebRTC peer connection, you'll need to create a RTCPeerConnection object and configure it with the necessary ICE servers. The ICE servers are used to discover the best communication path between peers.

1// Basic WebRTC client using JavaScript
2const configuration = {
3  iceServers: [{
4    urls: 'stun:stun.l.google.com:19302'
5  }]
6};
7
8const peerConnection = new RTCPeerConnection(configuration);
9
10peerConnection.onicecandidate = event => {
11  if (event.candidate) {
12    // Send the ICE candidate to the other peer via the signaling server
13    socket.emit('ice-candidate', event.candidate, room, socket.id);
14  }
15};
16
17peerConnection.ontrack = event => {
18    const remoteVideo = document.getElementById('remoteVideo');
19    if (remoteVideo.srcObject !== event.streams[0]) {
20      remoteVideo.srcObject = event.streams[0];
21    }
22};
23
24navigator.mediaDevices.getUserMedia({ video: true, audio: true })
25  .then(stream => {
26    const localVideo = document.getElementById('localVideo');
27    localVideo.srcObject = stream;
28    stream.getTracks().forEach(track => peerConnection.addTrack(track, stream));
29  })
30  .catch(error => {
31    console.error('Error accessing media devices:', error);
32  });
33
34

Handling ICE Candidates and Negotiation

ICE candidates are exchanged between peers to negotiate the best communication path. When a new ICE candidate is generated, it should be sent to the other peer via the signaling server. The receiving peer should then add the ICE candidate to its RTCPeerConnection object.

Media Streaming and Display

Once the peer connection is established, media streams can be sent between peers. To send a media stream, add the tracks from the stream to the RTCPeerConnection object. The receiving peer will receive the media stream in the ontrack event.

Building a Simple Video Chat Application

User Interface Design

The user interface should include video elements to display the local and remote video streams, as well as controls for starting and stopping the video chat. You will also need to provide fields to name or create a room.

Connecting the Client to the Server

Connect the client to the Socket.IO server using the io() function. Listen for events from the server, such as offer, answer, and ice-candidate. Create the signaling logic to handle connecting to a room. Make sure to handle server disconnection events. Make sure each client emits an event when disconnecting from the server.

Integrating WebRTC and Socket.IO

Integrate WebRTC and Socket.IO by using Socket.IO to exchange signaling messages between peers. When an offer, answer, or ICE candidate is received, relay it to the other peer via Socket.IO.

1// Integrating the client-side with Socket.IO
2const socket = io('http://localhost:3000');
3
4const room = 'test_room';
5socket.emit('join-room', room);
6
7socket.on('offer', (offer, socketId) => {
8  console.log("offer event");
9  peerConnection.setRemoteDescription(new RTCSessionDescription(offer));
10  peerConnection.createAnswer()
11  .then(answer => peerConnection.setLocalDescription(answer))
12  .then(() => {
13    socket.emit('answer', peerConnection.localDescription, room, socketId);
14  });
15});
16
17socket.on('answer', answer => {
18  console.log("answer event");
19  peerConnection.setRemoteDescription(new RTCSessionDescription(answer));
20});
21
22socket.on('ice-candidate', candidate => {
23  console.log("ice-candidate event");
24  peerConnection.addIceCandidate(new RTCIceCandidate(candidate));
25});
26
27peerConnection.createOffer()
28.then(offer => peerConnection.setLocalDescription(offer))
29.then(() => {
30  socket.emit('offer', peerConnection.localDescription, room);
31});
32
33

To add screen sharing, use the getDisplayMedia() API to capture the user's screen. To add text chat, use Socket.IO to exchange text messages between peers. Make sure your client UI supports these features if implemented.

Advanced Concepts and Considerations

Scaling for Multiple Users

To scale your WebRTC application for multiple users, you'll need to implement a scalable signaling server architecture. Consider using a distributed message queue to handle signaling messages. Media Servers, like Janus, can also be used to relay WebRTC traffic between many peers, which is useful when building applications that have a large number of users in the same room.

Security Best Practices

Implement security best practices to protect your WebRTC application from attacks. Use HTTPS to encrypt all communication between the client and server. Validate all incoming data to prevent malicious attacks. Implement authentication and authorization to restrict access to your application.

Handling Network Issues and Disconnections

Implement robust error handling to handle network issues and disconnections. Implement reconnection logic to automatically reconnect clients to the server after a disconnection. Use techniques like jitter buffering to mitigate the effects of network jitter.

Optimization Strategies

Optimize your WebRTC application for performance by using efficient codecs, adjusting the video quality based on network conditions, and minimizing latency. Consider using WebAssembly to improve the performance of computationally intensive tasks.

Conclusion

By combining Socket.IO and WebRTC, you can build powerful real-time applications that offer seamless and engaging user experiences. This guide has provided a comprehensive overview of how to integrate these technologies, from setting up the signaling server to managing peer connections and media streaming. Remember to prioritize security, scalability, and error handling to ensure the robustness of your application.

Further Resources:

Learn more about WebRTC: "Deep dive into WebRTC specifications and capabilities."
Socket.IO documentation: "Comprehensive guide on using Socket.IO."
Understanding ICE and STUN/TURN: "Learn about ICE and how it enables peer-to-peer communication."
