The SIP internet protocol (Session Initiation Protocol) is the application-layer signaling standard that sets up, modifies, and tears down voice, video, and messaging sessions over IP networks. Defined in RFC 3261 by the IETF, SIP carries the instructions for who to call and how to connect, while media itself travels over RTP. VideoSDK bridges SIP telephony and modern WebRTC rooms, letting traditional phone lines and web or mobile apps join the same conversation. If you build or evaluate real-time communication systems, understanding SIP is non-negotiable, and the VideoSDK telephony docs are a good place to see it applied.
Introduction to SIP Internet Protocol
Every time a desk phone dials an outside line, a contact center routes a customer call, or a video conferencing system connects two companies, the SIP internet protocol is almost certainly doing the handshaking behind the scenes. Session Initiation Protocol, standardized by the IETF in RFC 3261, is a text-based signaling protocol that negotiates sessions between endpoints over IP networks.
For developers, SIP matters because it is the connective tissue between legacy telephony and modern applications. It powers SIP trunking, unified communications platforms, contact center routing, and increasingly, gateways that bridge phone networks into WebRTC-based apps. For businesses, SIP is the reason long-distance calling costs collapsed and why a phone number can follow an employee anywhere. Mastering the SIP internet protocol means understanding how signaling, media transport, and network infrastructure fit together, which is exactly what this guide covers.
How SIP Internet Protocol Works
SIP works by exchanging structured text messages between endpoints and servers, each message carrying headers that identify callers, routes, and session parameters. The protocol itself never carries voice or video; it only negotiates the session, then hands media delivery to RTP. This separation of signaling and media is the defining design decision of the SIP internet protocol, and it is why SIP scales so well.
SIP Call Flow Overview
A basic SIP call follows a predictable message sequence. The calling party sends an INVITE message to the callee's address, describing the desired session using SDP (Session Description Protocol) embedded in the message body. The receiving server responds with 100 Trying to confirm receipt, then 180 Ringing while the callee's device alerts the user. When the callee answers, a 200 OK response travels back, and the caller confirms with an ACK. At that point RTP media flows directly between the endpoints. When either party hangs up, a BYE message ends the session, acknowledged by a final 200 OK.
This INVITE, 100 Trying, 180 Ringing, 200 OK, ACK, BYE cycle is the heartbeat of every SIP conversation. Understanding it is essential for debugging, because nearly every call setup failure maps to a specific message in this sequence failing to arrive or being rejected.
Core SIP Components
A SIP internet protocol deployment is built from a handful of server roles. A User Agent is any endpoint, acting as a User Agent Client when it sends requests and a User Agent Server when it receives them. A Proxy Server routes requests toward their destination, making routing decisions without terminating the session. A Registrar accepts REGISTER messages and binds a user's SIP URI to their current IP address, enabling mobility. A Redirect Server responds to requests with a forwarding address rather than proxying them, letting the caller retry directly.

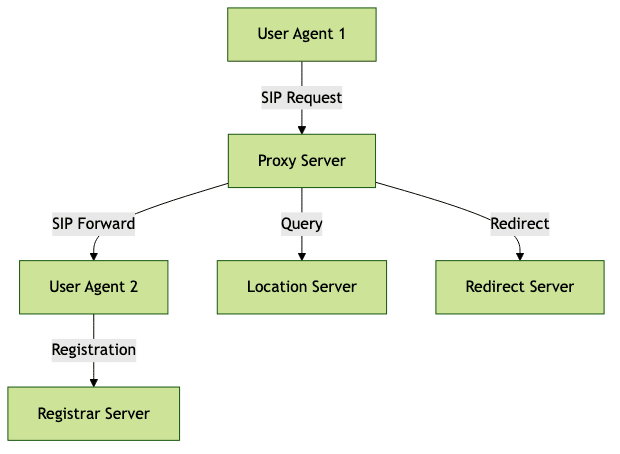

In practice, these roles are often combined into a single SIP server or PBX. The diagram below shows how these components interact during a basic call.

SIP Internet Protocol Architecture
The SIP internet protocol sits at the application layer of the IP stack, typically running over UDP, TCP, or TLS on port 5060 (or 5061 for TLS). Beneath it, the transport layer moves the signaling messages, and the network layer routes packets as with any IP traffic. Media, by contrast, flows over RTP, usually over UDP on dynamically negotiated high ports.
SIP does not operate alone. It relies on DNS to resolve SIP URIs into reachable server addresses, using SRV records to locate the correct SIP server for a domain. SDP, carried inside SIP message bodies, negotiates codecs, port numbers, and encryption parameters for the media session. RTP then carries the actual audio or video, with RTCP providing quality feedback such as packet loss and jitter statistics.
This layered design gives the SIP internet protocol its flexibility. Signaling can traverse one path while media takes a more direct route, and each layer can be secured, load balanced, or scaled independently. The architecture diagram below shows how these pieces stack together.

SIP Extensions and Advanced Features
Beyond basic call setup, the SIP internet protocol has grown a large family of extensions defined in additional RFCs. SIP-INFO carries mid-session information such as DTMF digits, useful for interactive voice response menus. SIP-UPDATE modifies session parameters, like codec changes, while a call is in progress. SIP-PRACK provides reliable delivery of provisional responses, important for early media scenarios. SIP-T enables interworking with the SS7 signaling used in traditional PSTN networks, which is what allows SIP calls to reach ordinary phone numbers.
Security extensions are equally important. SIP over TLS encrypts signaling, SRTP encrypts the media stream itself, and SIP-S defines mechanisms for securing SIP sessions end to end. Together they address the two main attack surfaces: eavesdropping on call metadata and intercepting audio.
NAT traversal remains the hardest practical problem in SIP deployment, because private IP addresses embedded in SIP messages are unreachable from the public internet. STUN lets endpoints discover their public address, TURN provides a relay when direct media flow is impossible, and ICE coordinates candidate addresses to find the best workable path. These same techniques underpin WebRTC, which is why bridging SIP and WebRTC, as VideoSDK's telephony integration does, is technically natural.
SIP Trunking and Business Use Cases
SIP trunking is the practice of delivering phone service over the SIP internet protocol instead of legacy PRI circuits or analog lines. A SIP trunk is a virtual connection between your PBX or unified communications platform and a service provider, carrying as many concurrent calls as your bandwidth and contract allow. Where a PRI line required fixed channel counts and dedicated hardware, a SIP trunk scales up or down on demand.
The business benefits are concrete. Cost savings come from eliminating PRI hardware and per-channel pricing, and from cheaper long-distance and international rates. Scalability means adding call capacity is a configuration change, not a truck roll. Redundancy improves because SIP trunks can fail over between providers or data centers, and phone numbers can be re-pointed in minutes during an outage.
Real-world use cases show the range. Contact centers use SIP trunks to bring in thousands of concurrent calls and route them intelligently across agents and sites. Remote and hybrid work arrangements rely on SIP-backed softphones so an employee's extension works identically at home or in the office. Unified communications platforms use SIP as the signaling backbone tying together voice, video, messaging, and presence. Healthcare providers, legal practices, and financial services firms all run on SIP-based telephony because it integrates with recording, transcription, and compliance systems.
For teams building modern applications, the interesting pattern is hybrid: keep SIP for inbound phone connectivity while handling in-app communication with WebRTC. VideoSDK supports exactly this model, with an inbound gateway that routes SIP calls into WebRTC rooms where AI voice agents or human agents can handle them.
Choosing and Deploying a SIP Internet Protocol Solution
Choosing a SIP internet protocol solution starts with a deployment model decision. Hosted or cloud SIP providers handle the infrastructure, offering fast setup, managed reliability, and predictable per-seat or per-minute pricing. On-premise deployments, often built on open-source PBX platforms, give you full control over call routing, customization, and data residency, at the cost of owning the infrastructure. Many organizations land on a hybrid: on-premise for core telephony, cloud SIP trunks for external connectivity.
Evaluation criteria should include network ownership (do you control the last mile?), reliability guarantees (look for uptime SLAs and redundancy options), geographic coverage for number provisioning, number porting support, and pricing model, whether per channel, per minute, or per seat. Interoperability matters too: verify the provider supports the SIP extensions and codecs your systems need.
Before going live, work through an implementation checklist. Assess network readiness, including bandwidth headroom for concurrent calls. Configure firewalls to allow SIP signaling and RTP media ports, and lock down access with IP whitelisting. Implement QoS policies that prioritize voice traffic over bulk data. Set up monitoring for registration status, call success rates, and latency. Finally, test failover behavior deliberately, because the worst time to discover a redundancy gap is during an outage.
Troubleshooting Common SIP Internet Protocol Issues
Most SIP problems fall into three buckets. Call setup failures usually trace back to rejected INVITE messages, authentication errors, or misrouted SIP URIs, and the fix starts with reading the SIP response codes in your logs. One-way audio almost always indicates a NAT or firewall problem where RTP flows in only one direction, and STUN, TURN, or a session border controller resolves it. Registration problems typically involve credential mismatches, expired registrations, or registrar timeouts.
Your diagnostic toolkit should include SIP message logs from your PBX or proxy, packet captures filtered to signaling traffic, and continuous quality metrics. Watch latency, jitter, and packet loss on the media path, since values above roughly 150 ms of one-way latency or sustained jitter will degrade call quality noticeably. Best practice is to correlate signaling failures with media quality data, because a call that connects but sounds terrible is a different problem than one that never connects.
Future Trends for SIP Internet Protocol
The SIP internet protocol is not standing still. Integration with WebRTC is the most significant trend, as gateways increasingly let browser-based and native app users join SIP-originated sessions seamlessly, a pattern VideoSDK has productized by routing SIP calls into WebRTC rooms where AI voice agents can answer. AI-driven analytics are transforming SIP monitoring, predicting failures from signaling patterns and transcribing calls automatically. The 5G rollout improves the underlying transport for mobile SIP clients, enabling higher quality voice and video on the move.
Emerging standards continue to extend SIP's reach, particularly around security and interworking with modern messaging frameworks. While some predicted WebRTC would replace SIP outright, the more likely future is coexistence: SIP as the bridge to the global phone network, WebRTC as the in-app experience, and intelligent gateways connecting the two.
Definitions Glossary
SIP (Session Initiation Protocol): An application-layer signaling protocol, defined in RFC 3261, that establishes, modifies, and terminates voice, video, and messaging sessions over IP networks without carrying the media itself.
SIP Trunking: A virtual connection between a PBX or communications platform and a service provider that delivers phone service over the SIP internet protocol, replacing legacy PRI circuits.
SIP URI: The addressing format used to identify SIP users and devices, analogous to an email address, which the protocol resolves through DNS and registrar lookups.
RTP (Real-time Transport Protocol): The protocol that carries actual audio and video media after SIP signaling negotiates the session, with RTCP providing quality feedback like jitter and packet loss.
SIP Proxy Server: An intermediary that receives SIP requests and routes them toward their destination, making routing decisions without terminating the session.
STUN, TURN, and ICE: A set of NAT traversal techniques that let SIP and WebRTC endpoints discover usable addresses, relay media when direct flow fails, and negotiate the best connection path.
Key Takeaways
- The SIP internet protocol handles signaling only; media travels over RTP, and this separation is what makes SIP scalable and flexible.
- A basic SIP call follows the INVITE, 100 Trying, 180 Ringing, 200 OK, ACK, BYE sequence, and nearly every call failure maps to a specific step in that flow.
- SIP trunking replaces PRI circuits with virtual, bandwidth-based connections, delivering cost savings, on-demand scalability, and faster failover.
- Security and NAT traversal (TLS, SRTP, STUN, TURN, ICE) are the two areas where most real-world SIP deployments struggle.
- The future of SIP is coexistence with WebRTC, and platforms like VideoSDK already bridge SIP calls into WebRTC rooms where AI voice agents can handle them.
Conclusion
Mastering the SIP internet protocol means understanding how signaling, media, and network infrastructure work together to power modern business communication. From the core call flow to trunking economics, security extensions, and NAT traversal, each layer builds on the last, and the teams that understand the full stack are the ones that deploy telephony that just works. As SIP and WebRTC converge, the opportunity is to evaluate your communication strategy now: whether that means modernizing trunking, bridging phone calls into your app, or adding AI voice agents to inbound lines. Start with the VideoSDK telephony documentation, explore the code samples, or sign up free at app.videosdk.live. What are you building with SIP? Drop a comment, I'd love to hear what kind of telephony use case you're working on.
