SIP Integration: A Developer's Guide to VoIP

Introduction to SIP Integration

What is SIP Integration?

Benefits of SIP Integration

• Enhanced Communication Capabilities: Integrate voice and video calling directly into your applications.
• Improved User Experience: Provide seamless communication experiences for your users.
• Increased Flexibility: Customize communication workflows to meet specific business needs.
• Cost Savings: Leverage VoIP infrastructure to reduce communication costs.
• Scalability: Handle a large number of concurrent calls and users.
• Automation: Automate communication tasks, such as call routing and recording.

Common Use Cases for SIP Integration

• Contact Centers: Integrate SIP with CRM (Customer Relationship Management) systems for efficient call management.
• Call Centers: Powering automated call distribution (ACD) and interactive voice response (IVR) systems.
• Unified Communications Platforms: Connecting various communication channels into a single platform.
• Mobile Applications: Enabling VoIP calling within mobile apps.
• IoT (Internet of Things) Devices: Integrating voice communication into IoT devices, such as intercoms and security systems.
• Business Applications: Adding calling functionality to sales, support, or other business applications.

Understanding SIP Protocol

Key Concepts of SIP

• User Agent (UA): An endpoint device used to initiate or receive a SIP session, such as a SIP phone or softphone.
• SIP Server: A network element that facilitates SIP communication, including proxy servers, redirect servers, and registrars.
• Registrar Server: A server that accepts registration requests from UAs and stores their location information.
• Proxy Server: A server that forwards SIP messages on behalf of UAs.
• Redirect Server: A server that informs a UA about the location of another UA.
• Session: A communication channel established between two or more UAs.

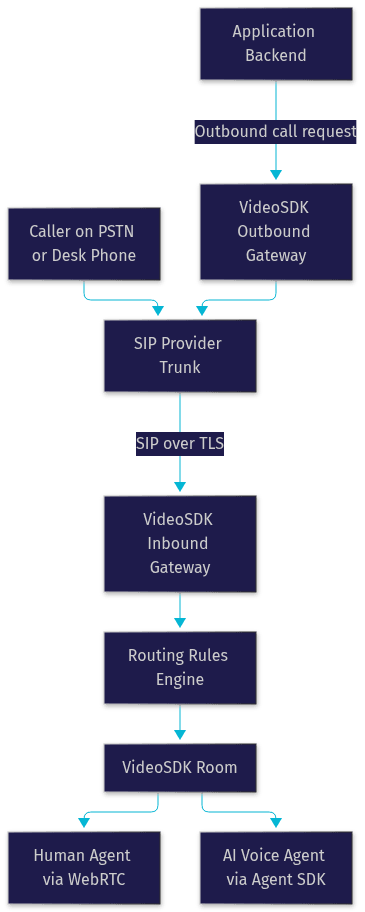

SIP Architecture

1. User Agents (UAs): Initiate and receive SIP sessions.
2. Registrar Server: Registers the location of UAs.
3. Proxy Server: Routes SIP messages between UAs.
4. Network: The underlying IP network that transports SIP messages.

SIP Messages

• INVITE: Initiates a new session.
• ACK: Confirms the establishment of a session.
• BYE: Terminates a session.
• CANCEL: Cancels a pending request.
• REGISTER: Registers the location of a UA.
• OPTIONS: Queries the capabilities of a UA.
• 200 OK: Indicates a successful response.
• 404 Not Found: Indicates that a requested resource was not found.
• 401 Unauthorized: Indicates that authentication is required.

Implementing SIP Integration

Choosing the Right SIP Solution

• SIP Trunking Providers: Offer SIP trunks that connect your PBX to the public telephone network.
• SIP Libraries and Frameworks: Provide APIs for building SIP-based applications.
• Open-Source SIP Servers: Such as Asterisk and FreeSWITCH, which can be customized to meet specific needs.
• Cloud-Based SIP Platforms: Offer a managed SIP infrastructure with APIs for integration.

Setting up Your SIP Infrastructure

1. Selecting a SIP provider or deploying your own SIP server.
2. Configuring network settings to allow SIP traffic.
3. Setting up firewall rules to protect your SIP infrastructure.
4. Obtaining SIP credentials from your provider or configuring them on your server.

1import requests
2
3# Example: Basic SIP registration using Python (simplified)
4
5def register_sip(username, password, sip_server):
6    url = f"sip:{username}@{sip_server}"
7    headers = {
8        "Via": "SIP/2.0/UDP example.com;branch=z9hG4bK776asdhds",
9        "From": f"<{url}>;tag=49583",
10        "To": f"<{url}>",
11        "Call-ID": "b8431c8c766b34301b961309285",
12        "CSeq": "1 REGISTER",
13        "Contact": f"<{url}>",
14        "Max-Forwards": "70",
15        "User-Agent": "My SIP Client",
16        "Content-Length": "0"
17    }
18
19    # **Important:** This is a highly simplified example and does not handle authentication or other SIP complexities.
20    # A real SIP client would use a dedicated SIP library.
21
22    try:
23        response = requests.post(url, headers=headers, auth=(username, password))
24        response.raise_for_status() # Raise HTTPError for bad responses (4xx or 5xx)
25        print(f"Registration successful. Status code: {response.status_code}")
26    except requests.exceptions.RequestException as e:
27        print(f"Registration failed: {e}")
28
29# Example usage (replace with your actual credentials and server)
30# register_sip("your_username", "your_password", "sip.example.com")
31
32print("This code snippet only illustrates the concept. Use a proper SIP library.")
33
34

Configuring SIP Clients and Servers

1. Setting up SIP accounts on your client devices or applications.
2. Configuring the SIP server to handle incoming and outgoing calls.
3. Defining call routing rules to direct calls to the appropriate destinations.
4. Setting up security features, such as authentication and encryption.

1# Example: Making a SIP call using the PJSIP library (requires installation: pip install pjsip)
2# This is a very basic example and requires more setup for a fully functional SIP client.
3
4import pjsua2 as pj
5import time
6
7class MyAccount(pj.Account):
8    def on_incoming_call(self, prm):
9        call = MyCall(self, prm.call_id)
10        print("Incoming call from", call.getInfo().remote_uri)
11        return call
12
13class MyCall(pj.Call):
14    def __init__(self, acc, call_id=pj.PJSUA_INVALID_ID):
15        pj.Call.__init__(self, acc, call_id)
16
17    def on_state(self):
18        print("Call state:", self.info.state)
19        if self.info.state == pj.PJSIP_INV_STATE_DISCONNECTED:
20            self.delete()
21
22try:
23    ep = pj.Endpoint()
24    ep.libCreate()
25
26    port = ep.libConfig.uaConfig.port = 6000
27    ep.libInit(ua_cfg = ep.libConfig.uaConfig)
28
29    ep.transportCreate(pj.PJSIP_TRANSPORT_UDP, pj.TransportConfig(port))
30
31    ep.libStart()
32    print("PJSIP started, listening on port", port)
33
34    acc_cfg = pj.AccountConfig()
35    acc_cfg.idUri = "sip:test@localhost"
36    acc_cfg.regConfig.registrarUri = "sip:localhost"
37    acc = MyAccount(acc_cfg)
38
39    acc.create()
40
41    # Make a call (replace with a valid SIP URI)
42    call = MyCall(acc)
43    call_param = pj.CallParam()
44    call_param.dialingUri = "sip:user@example.com"  # Replace with your destination URI
45    call.makeCall(call_param)
46
47    time.sleep(10)  # Keep the application running for a while
48
49    ep.libDestroy()
50
51except pj.Error as e:
52    print("Exception: " + str(e))
53
54print("Please note this example uses PJSIP and needs to be installed and configured properly. Replace 'sip:user@example.com' with the destination number and server.")
55

Testing Your SIP Integration

• Making and receiving calls.
• Testing call routing and features, such as call forwarding and call recording.
• Verifying audio quality and stability.
• Performing load testing to ensure that the system can handle a large number of concurrent calls.
• Security testing to identify and address vulnerabilities.

Integrating SIP with Popular Platforms

SIP Integration with Asterisk

1. Configure SIP trunks in Asterisk to connect to a SIP provider.
2. Define dial plans to route incoming and outgoing calls.
3. Set up SIP endpoints for user devices and applications.

1; Example: Asterisk configuration for SIP integration
2
3[general]
4context=default
5allowguest=no
6
7[siptrunk]
8type=friend
9host=sip.provider.com  ; Replace with your SIP provider's host
10username=your_username  ; Replace with your SIP provider's username
11secret=your_password  ; Replace with your SIP provider's password
12insecure=invite,port
13context=from-trunk
14
15[1000]
16type=friend
17host=dynamic
18secret=secret
19context=from-internal
20extension=1000
21disallow=all
22allow=ulaw
23

SIP Integration with Home Assistant

1# Example: Home Assistant configuration for SIP integration using the Asterisk integration
2
3asterisk:
4  host: your_asterisk_server  # Replace with your Asterisk server's address
5  port: 5038
6  username: your_manager_username # Replace with your Asterisk manager username
7  password: your_manager_password # Replace with your Asterisk manager password
8
9notify:
10  - name: asterisk_call
11    platform: asterisk
12    context: default
13    extension: 1234
14

SIP Integration with 3CX

SIP Integration with RingCentral

Advanced SIP Integration Techniques

Secure SIP Integration

• Using TLS (Transport Layer Security) for encrypted communication.
• Implementing authentication mechanisms, such as Digest authentication.
• Configuring firewalls to restrict access to SIP ports.
• Regularly monitoring your SIP infrastructure for security vulnerabilities.

Scaling SIP Integration

• Using load balancers to distribute traffic across multiple SIP servers.
• Optimizing network bandwidth and latency.
• Using a Content Delivery Network (CDN) for media streaming.

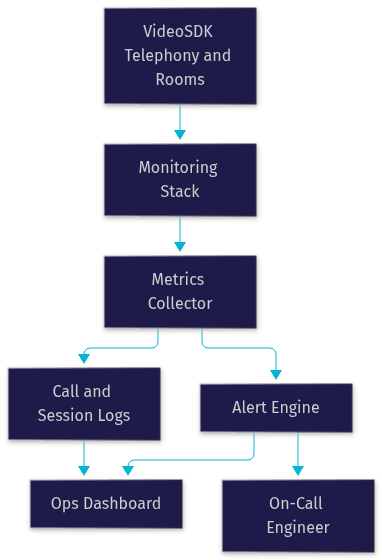

Monitoring and Managing SIP Integration

• Tracking call quality metrics, such as jitter and packet loss.
• Monitoring system performance and resource utilization.
• Using monitoring tools to detect and resolve issues proactively.
• Implementing alerting mechanisms to notify administrators of critical events.

Troubleshooting Common SIP Integration Issues

Connection Problems

• Issue: Unable to connect to the SIP server.
• Solution: Verify network connectivity, firewall settings, and SIP server configuration.

Authentication Errors

• Issue: Authentication fails when registering with the SIP server.
• Solution: Verify username, password, and authentication settings.

Call Quality Issues

• Issue: Poor audio quality, such as jitter, packet loss, or latency.
• Solution: Optimize network bandwidth, reduce network congestion, and use quality of service (QoS) settings.

Other Common Problems

• Issue: One-way audio.
• Solution: Check for symmetric RTP configuration issues. Verify that firewalls and NAT devices are correctly configured to allow RTP traffic in both directions.
• Issue: Calls dropping unexpectedly.
• Solution: Investigate network stability, SIP server logs, and client-side errors.

Future of SIP Integration

• Increased adoption of WebRTC for browser-based communication.
• Integration of SIP with artificial intelligence (AI) and machine learning (ML) technologies.
• Expansion of SIP into new industries, such as healthcare and education.
